GSJ15L-GKFSKY (2007)

Toyota Fj Cruiser

Production Jul 2007 - Nov 2010
Engine 1GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

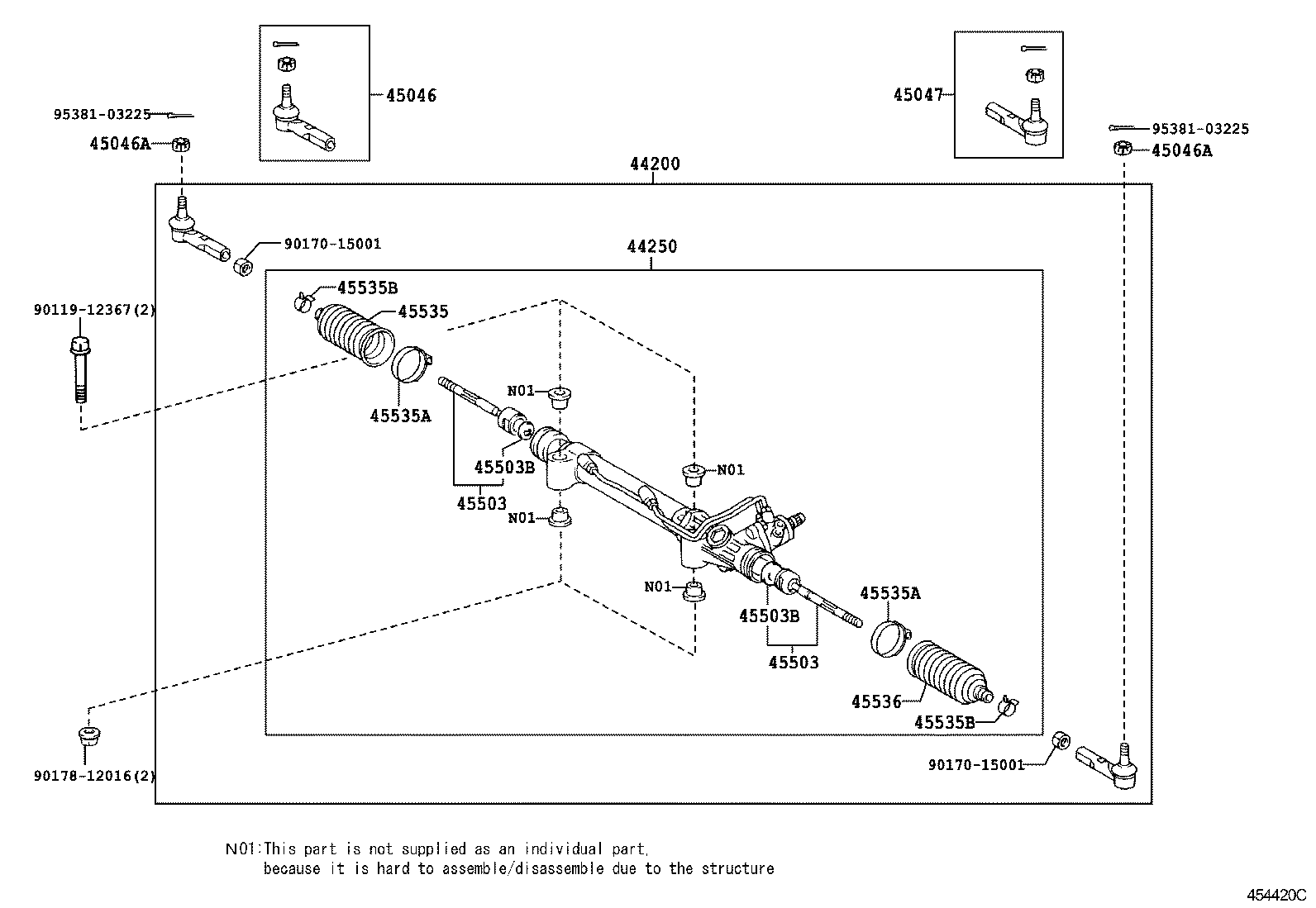

ILLUST NO. 1 OF 2(0707-0908)

Click highlighted areas on diagram

diagram 44200 44250 45046 45046A 45046A 45047 45503 45503 45503B 45503B 45535 45535A 45535A 45535B 45535B 45536 9011912367 9017015001 9017015001 9017812016 9538103225 9538103225
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-35100

GSJ15

 1
44200-35080

GSJ15

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-35080

GSJ15

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-39505

GSJ15

 1
45046-69245

GSJ15

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

GSJ15

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

GSJ15

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-69245

GSJ15

 1
45046-39505

GSJ15

 1
45503 - END SUB-ASSY, STEERING RACK
45503-39305

GSJ15

 2
45503-35070

GSJ15

 2
45503 - END SUB-ASSY, STEERING RACK
45503-39305

GSJ15

 2
45503-35070

GSJ15

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-22001

GSJ15

OD=43

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-22001

GSJ15

OD=43

 2
45535 - BOOT, STEERING RACK, NO.1
45535-26030

GSJ15

 1
45535-69025

GSJ15

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

GSJ15

 2
90460-60008

GSJ15

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

GSJ15

 2
90460-60008

GSJ15

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

GSJ15

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

GSJ15

 2
45536 - BOOT, STEERING RACK, NO.2
45535-69015

GSJ15

 1
45535-26030

GSJ15

 1
Common parts
90119-12367
90170-15001
90178-12016
95381-03225

ILLUST NO. 2 OF 2(0707-0908)

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-35190

GSJ15

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-35140

GSJ15

 1

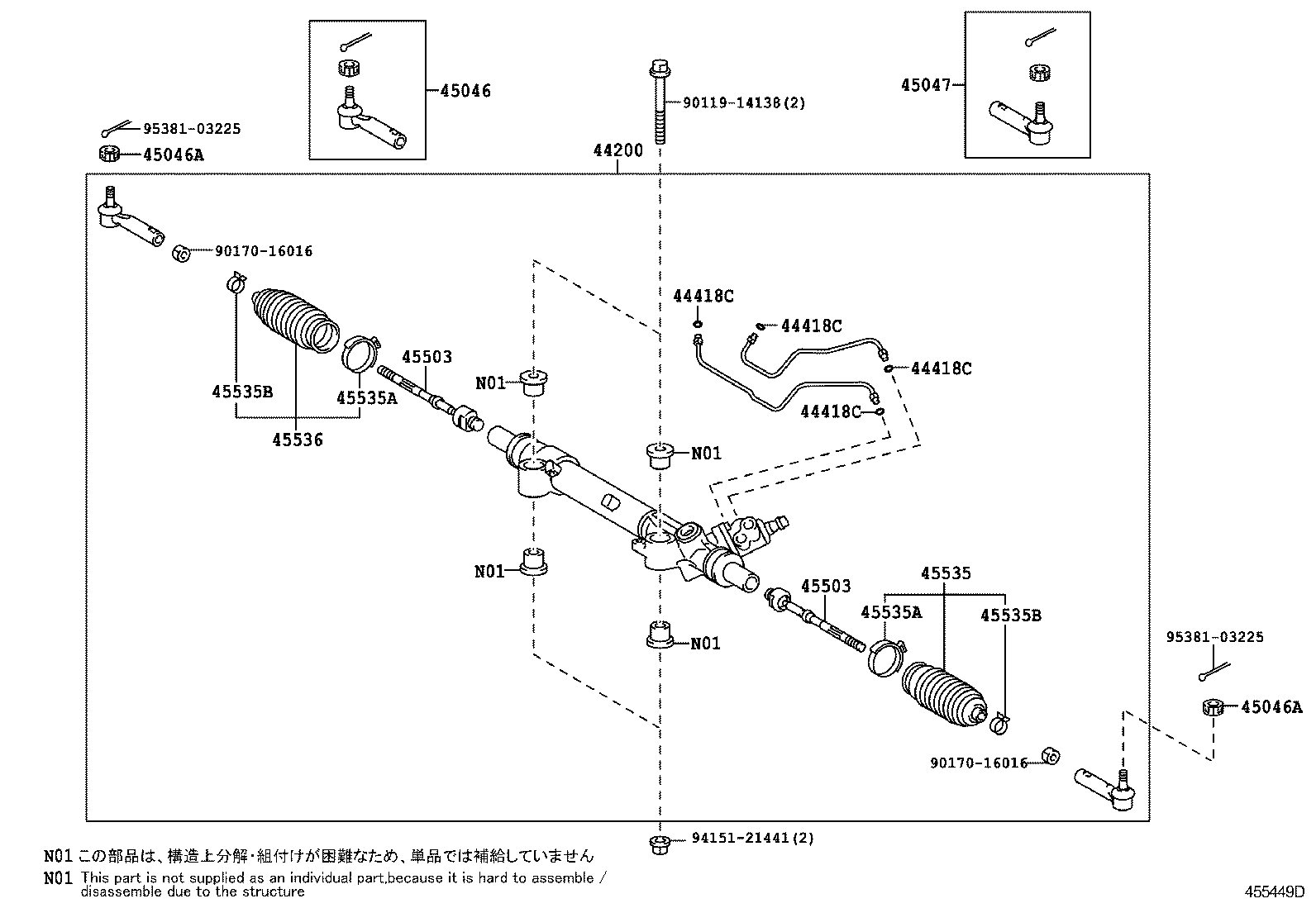

(0908- )LHD

Click highlighted areas on diagram

diagram 44200 44418C 44418C 44418C 44418C 45046 45046A 45046A 45047 45503 45503 45535 45535A 45535A 45535B 45535B 45536 9011914138 9017016016 9017016016 9415121441 9538103225 9538103225
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-35100

GSJ15

 1
44200-35080

GSJ15

 1
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-03001

GSJ15

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-03001

GSJ15

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-03001

GSJ15

 4
44418C - RING, O(FOR STEERING TURN PRESSURE TUBE)
90301-03001

GSJ15

 4
45046 - END SUB-ASSY, TIE ROD, RH
45046-39505

GSJ15

 1
45046-69245

GSJ15

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

GSJ15

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

GSJ15

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-69245

GSJ15

 1
45046-39505

GSJ15

 1
45503 - END SUB-ASSY, STEERING RACK
45503-39305

GSJ15

 2
45503-35070

GSJ15

 2
45503 - END SUB-ASSY, STEERING RACK
45503-39305

GSJ15

 2
45503-35070

GSJ15

 2
45535 - BOOT, STEERING RACK, NO.1
45535-26030

GSJ15

 1
45535-69025

GSJ15

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

GSJ15

 2
90460-60008

GSJ15

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
90460-55016

GSJ15

 2
90460-60008

GSJ15

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

GSJ15

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

GSJ15

 2
45536 - BOOT, STEERING RACK, NO.2
45535-69015

GSJ15

 1
45535-26030

GSJ15

 1
Common parts
90119-14138
90170-16016
94151-21441
95381-03225
