GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
Production
Jul 2007
-
Nov 2010
Engine
1GRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

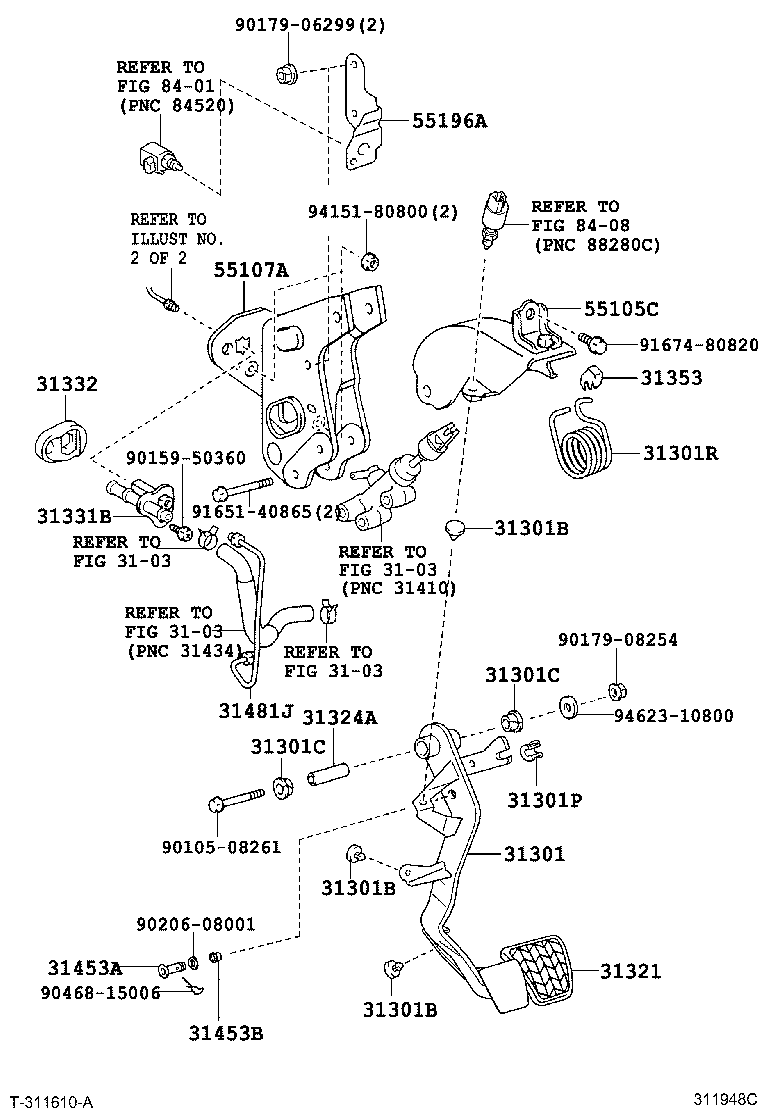

ILLUST NO. 1 OF 2(0707- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-35270 |
GSJ15..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GSJ15..MTM |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GSJ15..MTM |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GSJ15..MTM |
3 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
GSJ15..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
GSJ15..MTM |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GSJ15..MTM |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 31316-35010 |
GSJ15..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
GSJ15..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-08160 |
GSJ15..MTM |
1 | ||
| 31331B - WAY, CLUTCH PEDAL SUPPORT | ||||
| 31331-60010 |
GSJ15..MTM |
1 | ||
| 31332 - GROMMET, CLUTCH PEDAL SUPPORT | ||||
| 31332-60010 |
GSJ15..MTM |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
GSJ15..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-T0002 |
GSJ15..MTM L=31.9 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
GSJ15..MTM |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-6A050 |
GSJ15..MTM |
1 | ||
| 55105C - SUPPORT, PEDAL BRACKET CLUTCH WIRE | ||||
| 55105-60010 |
GSJ15..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60190 |
GSJ15..MTM |
1 | ||
| 55196A - BRACKET, CLUTCH START SWITCH MOUNTING | ||||
| 55196-35020 |
GSJ15..MTM |
1 | ||
| Common parts | ||||
| 90105-08261 | ||||
| 90159-50360 | ||||
| 90179-06299 | ||||
| 90179-08254 | ||||
| 90206-08001 | ||||
| 90468-15006 | ||||
| 91651-40865 | ||||
| 91674-80820 | ||||
| 94151-80800 | ||||
| 94623-10800 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 8401 | ||||
| 8408 | ||||

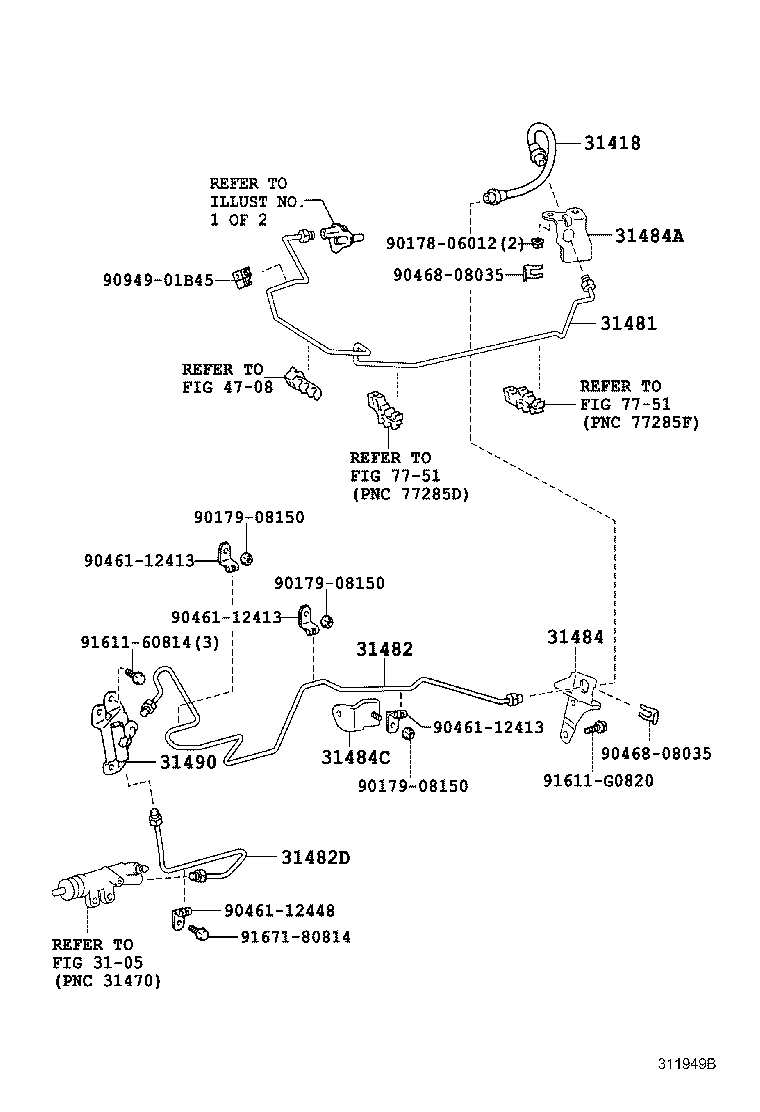

ILLUST NO. 2 OF 2(0707-0908)MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02G14 |
GSJ15..MTM |
1 | ||
| 90947-02D38 |
GSJ15..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-6A090 |
GSJ15..MTM |
1 | ||
| 31481-60B00 |
GSJ15..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60240 |
GSJ15..MTM |
1 | ||
| 31482-60150 |
GSJ15..MTM |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-60160 |
GSJ15..MTM |
1 | ||
| 31482-60300 |
GSJ15..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60241 |
GSJ15..MTM |
1 | ||
| 31484-60360 |
GSJ15..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-60231 |
GSJ15..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-60280 |
GSJ15..MTM |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-60170 |
GSJ15..MTM |
1 | ||
| 31490-60151 |
GSJ15..MTM |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90179-08150 | ||||
| 90461-12413 | ||||
| 90461-12448 | ||||
| 90468-08035 | ||||
| 90949-01B45 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91671-80814 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 4708 | ||||
| 7751 | ||||

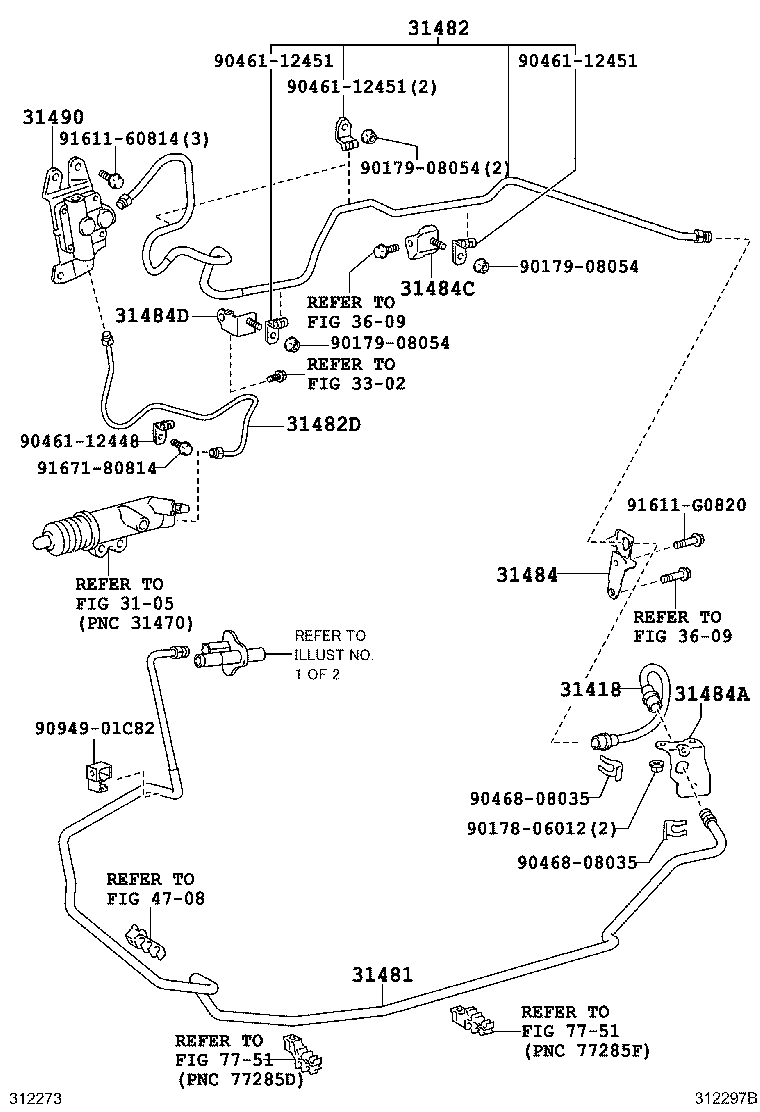

ILLUST NO. 2 OF 2(0908- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02G14 |
GSJ15..MTM |
1 | ||
| 90947-02D38 |
GSJ15..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-6A090 |
GSJ15..MTM |
1 | ||
| 31481-60B00 |
GSJ15..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60240 |
GSJ15..MTM |
1 | ||
| 31482-60150 |
GSJ15..MTM |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-60160 |
GSJ15..MTM |
1 | ||
| 31482-60300 |
GSJ15..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60241 |
GSJ15..MTM |
1 | ||
| 31484-60360 |
GSJ15..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-60231 |
GSJ15..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-60280 |
GSJ15..MTM |
1 | ||
| 31484D - BRACKET, CLUTCH TUBE, NO.2 | ||||
| 31484-60410 |
GSJ15..MTM |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-60170 |
GSJ15..MTM |
1 | ||
| 31490-60151 |
GSJ15..MTM |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90179-08054 | ||||
| 90461-12448 | ||||
| 90461-12451 | ||||
| 90468-08035 | ||||
| 90949-01C82 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91671-80814 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 3302 | ||||
| 3609 | ||||
| 4708 | ||||
| 7751 | ||||
