GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
(0707-0908)1GRFE..CHI,GEN
12V 100A

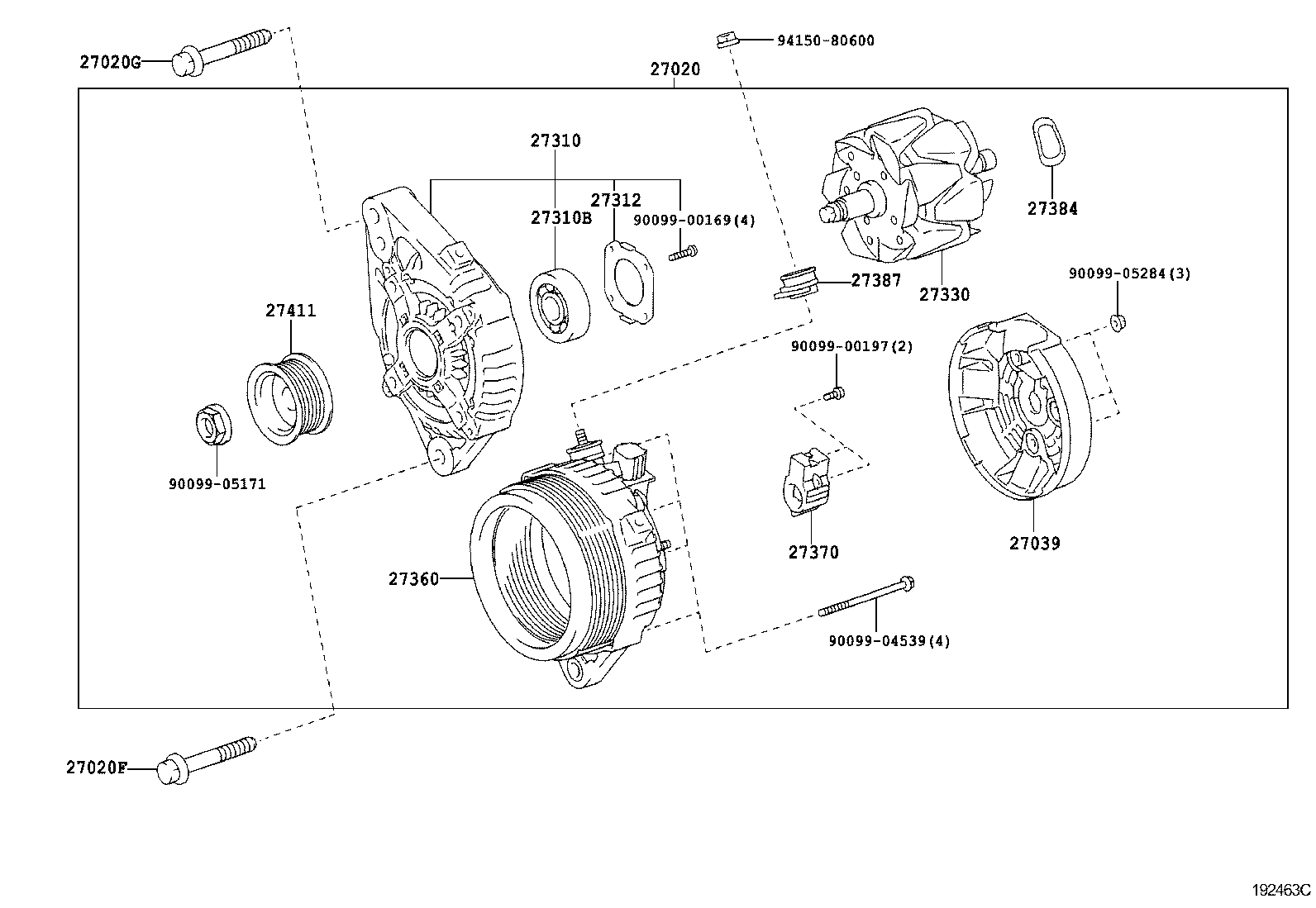

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-31180 |
1GRFE..GSJ15 12V 100A |
1 | ||
| 27060-31120 |
1GRFE..GSJ15..CHI,GEN 12V 100A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 91552-81040 |
1GRFE..GSJ15 |
1 | ||
| 91642-81065 |
1GRFE..GSJ15 |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 91552-81070 |
1GRFE..GSJ15 |
1 | ||
| 91642-81065 |
1GRFE..GSJ15 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-31390 |
1GRFE..GSJ15 |
1 | ||
| 27039-26170 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-31430 |
1GRFE..GSJ15 |
1 | ||
| 27310-31210 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-31320 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27360-31390 |
1GRFE..GSJ15 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31210 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 94150-80600 | ||||
(0908- )
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-31180 |
1GRFE..GSJ15 12V 100A |
1 | ||
| 27060-31120 |
1GRFE..GSJ15..CHI,GEN 12V 100A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 91552-81040 |
1GRFE..GSJ15 |
1 | ||
| 91642-81065 |
1GRFE..GSJ15 |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 91552-81070 |
1GRFE..GSJ15 |
1 | ||
| 91642-81065 |
1GRFE..GSJ15 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-31390 |
1GRFE..GSJ15 |
1 | ||
| 27039-26170 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-31430 |
1GRFE..GSJ15 |
1 | ||
| 27310-31210 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-31320 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27360-31390 |
1GRFE..GSJ15 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1GRFE..GSJ15..CHI,GEN |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W130 |
1GRFE..GSJ15 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
1GRFE..GSJ15 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-31390 |
1GRFE..GSJ15 |
1 | ||
| Common parts | ||||
| 12511-31040 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 91511-80820 | ||||
| 94150-80600 | ||||
