GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
Production
Jul 2007
-
Nov 2010
Engine
1GRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0707-0908)

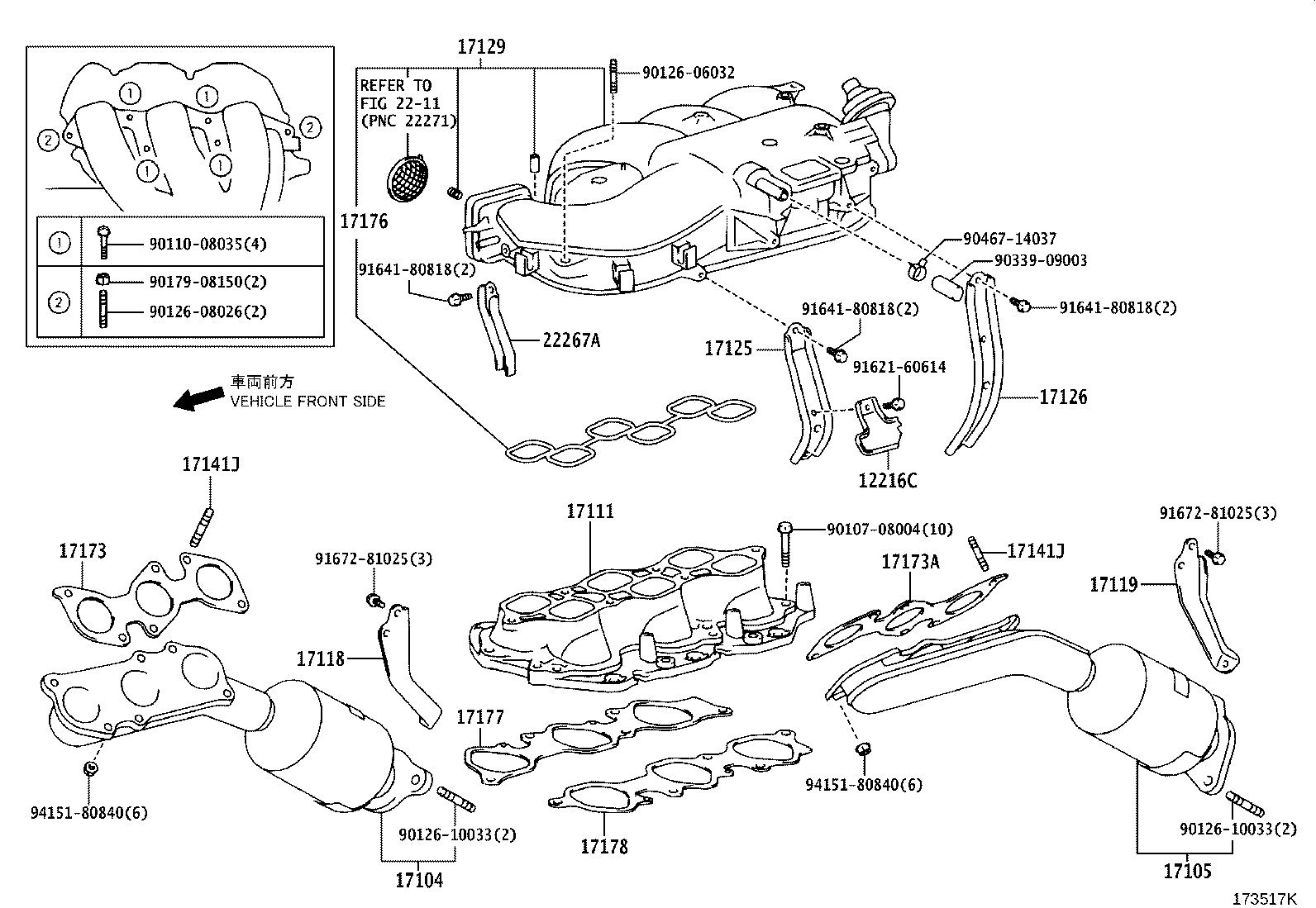

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12216C - PLATE, OIL BAFFLE | ||||
| 12216-31020 |
1GRFE..GSJ15 |
1 | ||
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17140-31320 |
1GRFE..GSJ15 |
1 | ||
| 17140-31590 |
1GRFE..GSJ15 |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17150-31590 |
1GRFE..GSJ15 |
1 | ||
| 17150-31320 |
1GRFE..GSJ15 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-31200 |
1GRFE..GSJ15 |
1 | ||
| 17101-31010 |
1GRFE..GSJ15 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-31030 |
1GRFE..GSJ15 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17119-31040 |
1GRFE..GSJ15 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-31010 |
1GRFE..GSJ15 |
1 | ||
| 17125-31070 |
1GRFE..GSJ15 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-31060 |
1GRFE..GSJ15 |
1 | ||
| 17126-31010 |
1GRFE..GSJ15 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-31110 |
1GRFE..GSJ15 |
1 | ||
| 17109-31012 |
1GRFE..GSJ15 |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-08052 |
1GRFE..GSJ15 |
12 | ||
| 90126-08052 |
1GRFE..GSJ15 |
16 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-08052 |
1GRFE..GSJ15 |
12 | ||
| 90126-08052 |
1GRFE..GSJ15 |
16 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-31010 |
1GRFE..GSJ15 |
1 | ||
| 17173-31050 |
1GRFE..GSJ15 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-31050 |
1GRFE..GSJ15 |
1 | ||
| 17173-31010 |
1GRFE..GSJ15 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-31010 |
1GRFE..GSJ15 |
1 | ||
| 17176-31100 |
1GRFE..GSJ15 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-31010 |
1GRFE..GSJ15 |
1 | ||
| 17177-31050 |
1GRFE..GSJ15 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-31010 |
1GRFE..GSJ15 |
1 | ||
| 17178-31040 |
1GRFE..GSJ15 |
1 | ||
| 22267A - BRACKET, THROTTLE BODY | ||||
| 22267-31010 |
1GRFE..GSJ15 |
1 | ||
| Common parts | ||||
| 90107-08004 | ||||
| 90110-08035 | ||||
| 90126-06032 | ||||
| 90126-08026 | ||||
| 90126-10033 | ||||
| 90179-08150 | ||||
| 90339-09003 | ||||
| 90467-14037 | ||||
| 91621-60614 | ||||
| 91641-80818 | ||||
| 91672-81025 | ||||
| 94151-80840 | ||||
| Linked diagrams | ||||
| 2211 | ||||
