GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
Production
Jul 2007
-
Nov 2010
Engine
1GRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

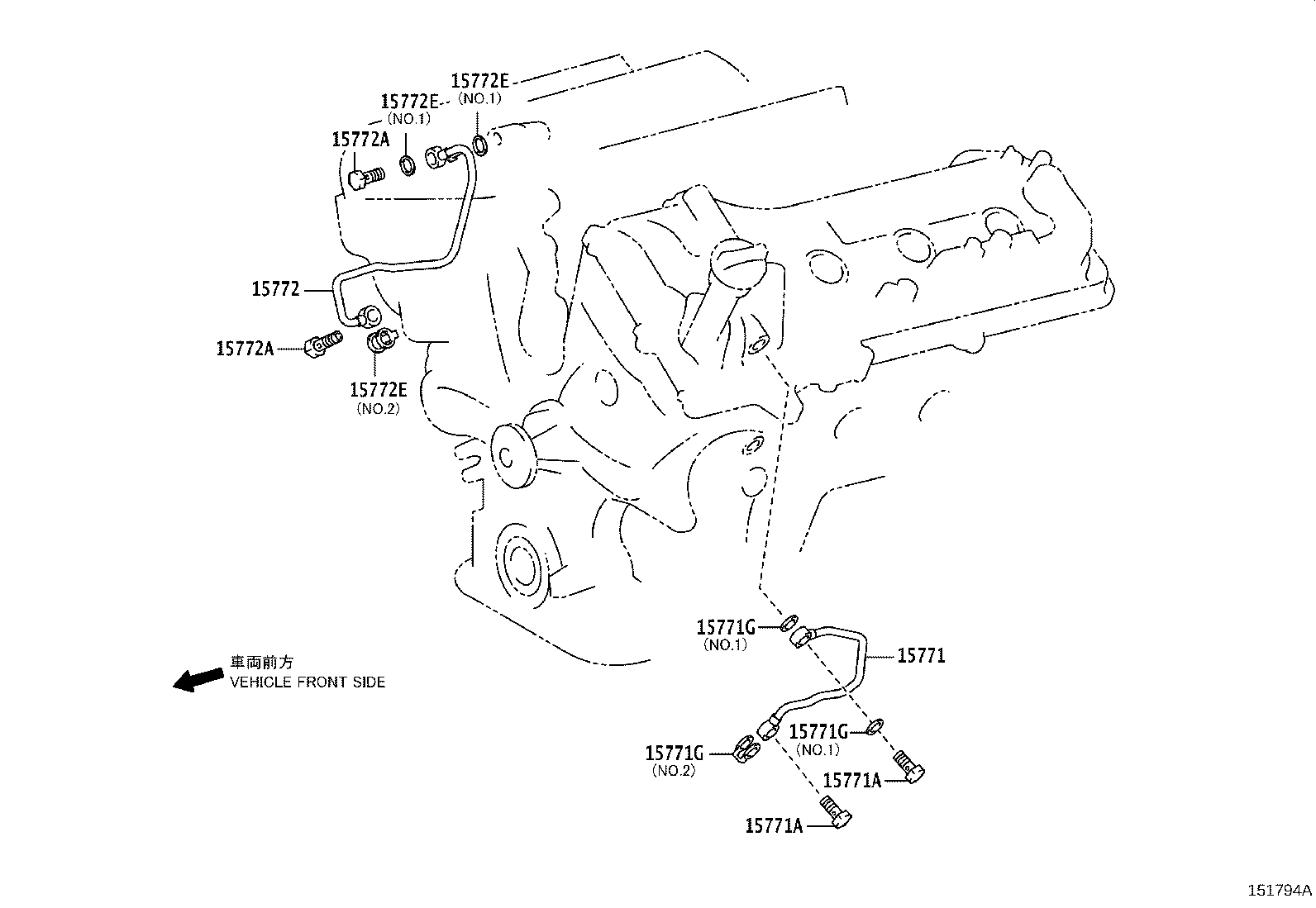

(0908-1011)1GRFE..GEN ; (1011- )1GRFE..ATM..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15771 - PIPE, OIL, NO.1 | ||||
| 15771-31010 |
1GRFE..GSJ15 |
1 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
1GRFE..GSJ15 |
2 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
1GRFE..GSJ15 |
2 | ||
| 15771G - GASKET | ||||
| 90430-16016 |
1GRFE..GSJ15 NO.2 |
1 | ||
| 90430-16012 |
1GRFE..GSJ15 NO.1 |
2 | ||
| 15771G - GASKET | ||||
| 90430-16016 |
1GRFE..GSJ15 NO.2 |
1 | ||
| 90430-16012 |
1GRFE..GSJ15 NO.1 |
2 | ||
| 15771G - GASKET | ||||
| 90430-16016 |
1GRFE..GSJ15 NO.2 |
1 | ||
| 90430-16012 |
1GRFE..GSJ15 NO.1 |
2 | ||
| 15772 - PIPE, OIL, NO.2 | ||||
| 15772-31010 |
1GRFE..GSJ15 |
1 | ||
| 15772A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
1GRFE..GSJ15 |
2 | ||
| 15772A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
1GRFE..GSJ15 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
1GRFE..GSJ15 NO.2 |
1 | ||
| 90430-16012 |
1GRFE..GSJ15 NO.1 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
1GRFE..GSJ15 NO.2 |
1 | ||
| 90430-16012 |
1GRFE..GSJ15 NO.1 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
1GRFE..GSJ15 NO.2 |
1 | ||
| 90430-16012 |
1GRFE..GSJ15 NO.1 |
2 | ||

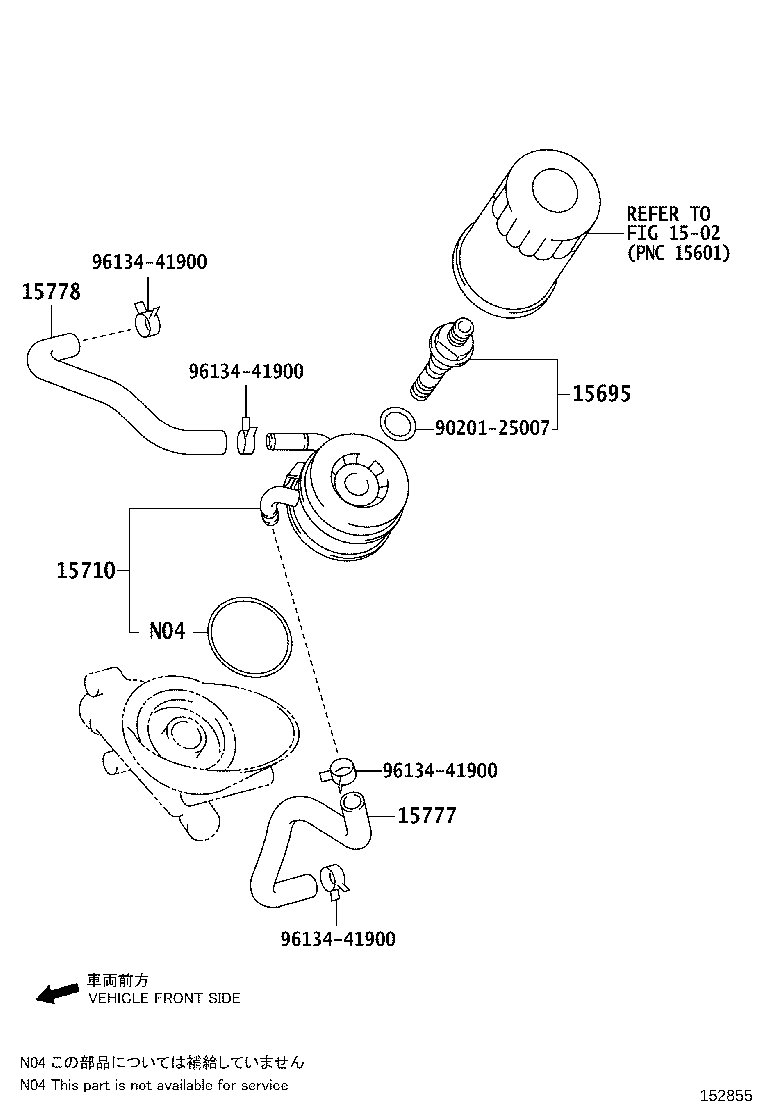

(0707-0908)1GRFE..GCC,GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90201-25007 | ||||
| 96134-41900 | ||||
| Linked diagrams | ||||
| 1502 | ||||
