GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
Production
Jul 2007
-
Nov 2010
Engine
1GRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0707-0908)

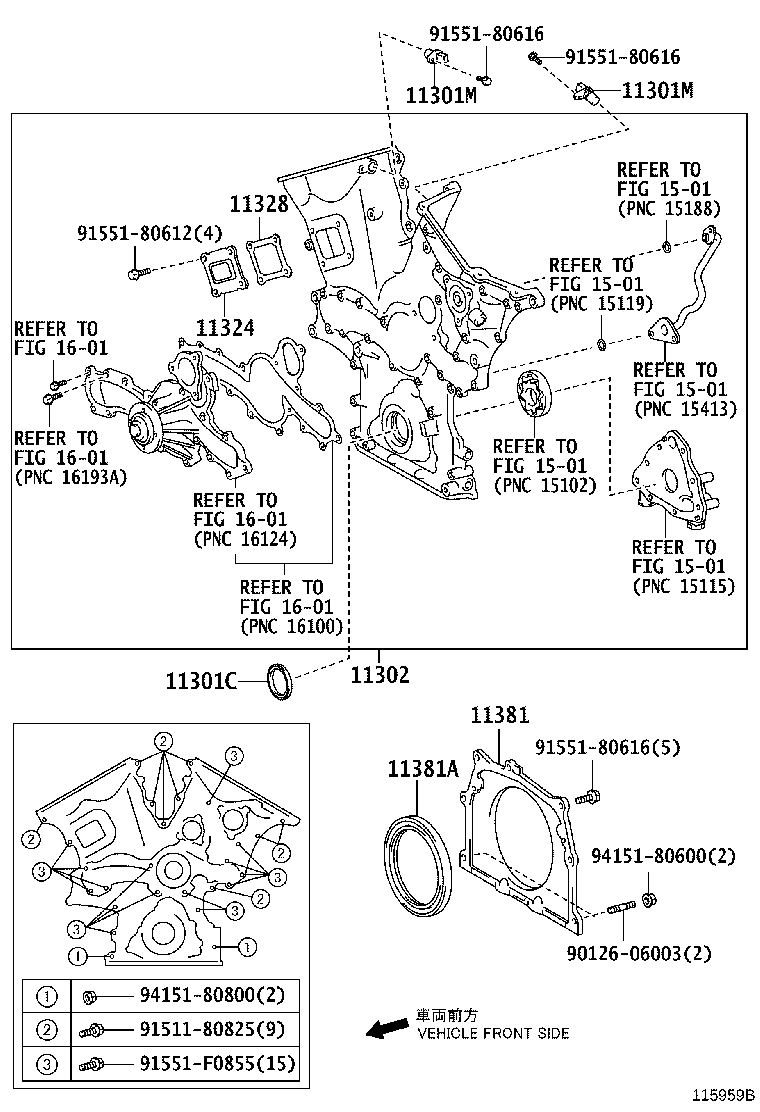

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-42037 |
1GRFE..GSJ15 |
1 | ||
| 90311-42045 |
1GRFE..GSJ15 |
1 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| 90919-05060 |
1GRFE..GSJ15 |
2 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| 90919-05060 |
1GRFE..GSJ15 |
2 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-31013 |
1GRFE..GSJ15 |
1 | ||
| 11310-31030 |
1GRFE..GSJ15 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-31020 |
1GRFE..GSJ15 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-31030 |
1GRFE..GSJ15 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-31010 |
1GRFE..GSJ15 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-99010 |
1GRFE..GSJ15 |
1 | ||
| Common parts | ||||
| 90126-06003 | ||||
| 91511-80825 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-F0855 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1601 | ||||
(0908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-42037 |
1GRFE..GSJ15 |
1 | ||
| 90311-42045 |
1GRFE..GSJ15 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-31013 |
1GRFE..GSJ15 |
1 | ||
| 11310-31030 |
1GRFE..GSJ15 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-31020 |
1GRFE..GSJ15 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-31030 |
1GRFE..GSJ15 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-31010 |
1GRFE..GSJ15 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-99010 |
1GRFE..GSJ15 |
1 | ||
| Common parts | ||||
| 90126-06021 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-F0825 | ||||
| 91551-F0828 | ||||
| 91551-F0855 | ||||
| 91552-F1035 | ||||
| 91552-F1065 | ||||
| 94151-80600 | ||||
| 94151-80841 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1601 | ||||
