GSJ15L-GKASKV (2007)
Toyota Fj Cruiser

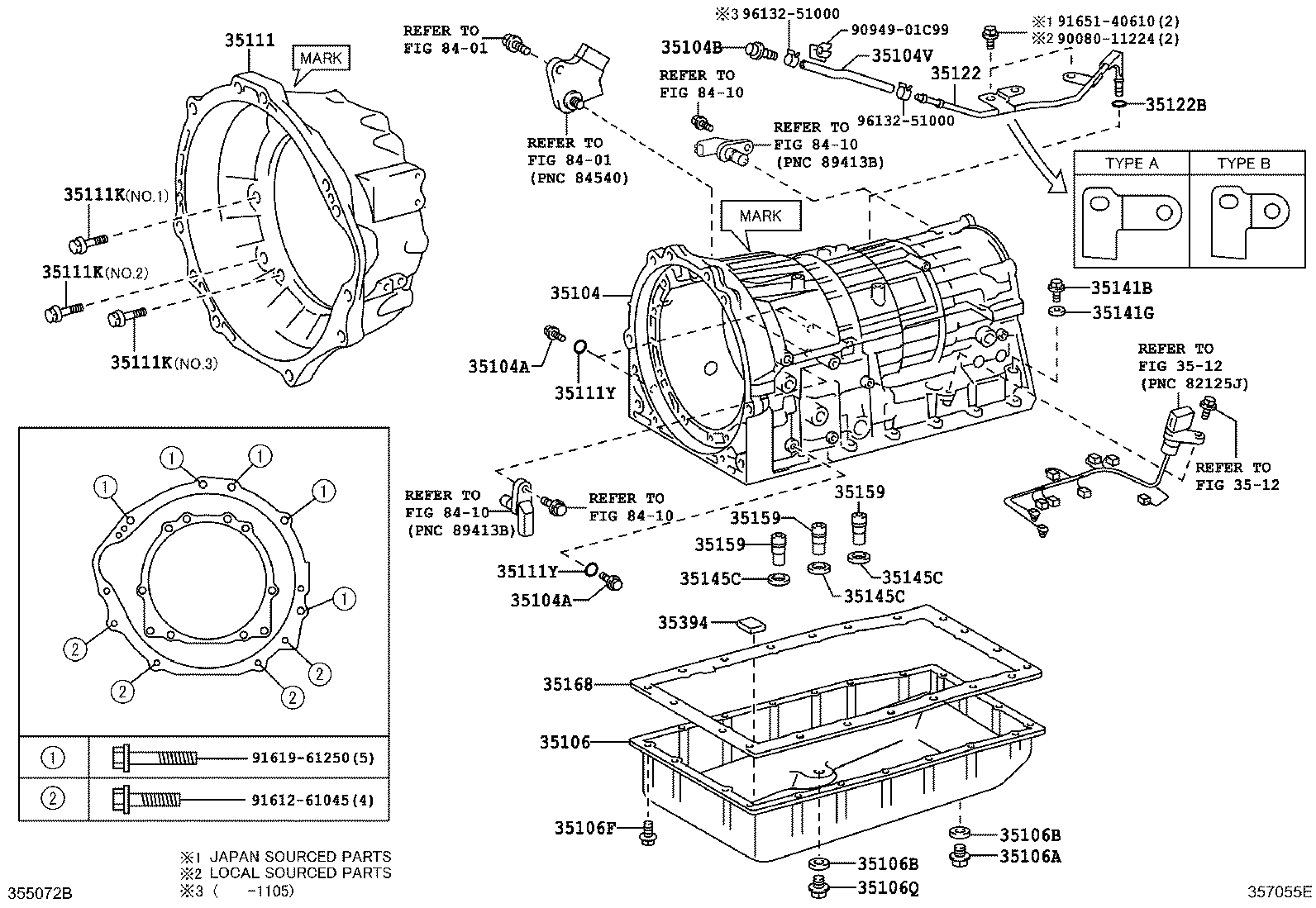

(0707-0908)ATM
A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-0C010 |
GSJ15..ATM..(GCC,GEN) NO MARK |
1 | ||
| 35104-60221 |
GSJ15..ATM TYPE A:REFER 35-01 |
1 | ||
| 35104-60221 |
GSJ15..ATM MARK A |
1 | ||
| 35104-60221 |
GSJ15..ATM..(ARL,GCC,GEN,SA) MARK A |
1 | ||
| 35104-60221 |
GSJ15..ATM..(GCC,GEN) MARK A |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-A0001 |
GSJ15..ATM..(GCC,GEN) (L) |
5 | ||
| 90341-08001 |
GSJ15..ATM |
5 | ||
| 90341-08001 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
5 | ||
| 90341-08001 |
GSJ15..ATM..(GCC,GEN) (J) |
5 | ||
| 90341-A0001 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (L) |
5 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-A0001 |
GSJ15..ATM..(GCC,GEN) (L) |
5 | ||
| 90341-08001 |
GSJ15..ATM |
5 | ||
| 90341-08001 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
5 | ||
| 90341-08001 |
GSJ15..ATM..(GCC,GEN) (J) |
5 | ||
| 90341-A0001 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (L) |
5 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11039 |
GSJ15..ATM |
1 | ||
| 35121-35020 |
GSJ15..ATM |
1 | ||
| 35121-35020 |
GSJ15..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-60180 |
GSJ15..ATM..(GCC,GEN) (J) |
1 | ||
| 35106-0C010 |
GSJ15..ATM..(GCC,GEN) (L) |
1 | ||
| 35106-60180 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GSJ15..ATM |
1 | ||
| 90341-10011 |
GSJ15..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GSJ15..ATM |
2 | ||
| 35178-30010 |
GSJ15..ATM..(GCC,GEN) |
2 | ||
| 35178-30010 |
GSJ15..ATM..(GCC,GEN) |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GSJ15..ATM |
2 | ||
| 35178-30010 |
GSJ15..ATM..(GCC,GEN) |
2 | ||
| 35178-30010 |
GSJ15..ATM..(GCC,GEN) |
2 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06173 |
GSJ15..ATM |
20 | ||
| 90119-06173 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
20 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
GSJ15..ATM |
1 | ||
| 90341-10021 |
GSJ15..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-04010 |
GSJ15..ATM MARK UB |
1 | ||
| 35111-60150 |
GSJ15..ATM MARK BH |
1 | ||
| 35111-04010 |
GSJ15..ATM..(GCC,GEN) MARK UB |
1 | ||
| 35111-60150 |
GSJ15..ATM..(ARL,GCC,GEN,SA) MARK BH |
1 | ||
| 35111-60150 |
GSJ15..ATM..(GCC,GEN) MARK BH |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-A0272 |
GSJ15..ATM..(GCC,GEN) *10-1.5PX35-29.3,NO.1 |
6 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-A0272 |
GSJ15..ATM..(GCC,GEN) *10-1.5PX35-29.3,NO.1 |
6 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-A0272 |
GSJ15..ATM..(GCC,GEN) *10-1.5PX35-29.3,NO.1 |
6 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GSJ15..ATM |
5 | ||
| 90301-06196 |
GSJ15..ATM |
5 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GSJ15..ATM |
5 | ||
| 90301-06196 |
GSJ15..ATM |
5 | ||
| 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) | ||||
| 35122-34010 |
GSJ15..ATM..(GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 35122-60020 |
GSJ15..ATM TYPE B:REFER ILLUST. |
1 | ||
| 35122-60020 |
GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE B:REFER ILLUST. |
1 | ||
| 35122-60020 |
GSJ15..ATM..(GCC,GEN) TYPE B:REFER ILLUST. |
1 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-04014 |
GSJ15..ATM |
1 | ||
| 90301-04014 |
GSJ15..ATM |
1 | ||
| 35123A - SKIRT, TRANSMISSION BREATHER | ||||
| 35123-60090 |
GSJ15..ATM |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
GSJ15..ATM |
1 | ||
| 90341-14011 |
GSJ15..ATM |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11030 |
GSJ15..ATM |
1 | ||
| 90301-11030 |
GSJ15..ATM |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
3 | ||
| 35159-60010 |
GSJ15..ATM..(GCC,GEN) (J) |
3 | ||
| 35159-0C010 |
GSJ15..ATM..(GCC,GEN) (L) |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
3 | ||
| 35159-60010 |
GSJ15..ATM..(GCC,GEN) (J) |
3 | ||
| 35159-0C010 |
GSJ15..ATM..(GCC,GEN) (L) |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
3 | ||
| 35159-60010 |
GSJ15..ATM..(GCC,GEN) (J) |
3 | ||
| 35159-0C010 |
GSJ15..ATM..(GCC,GEN) (L) |
3 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-60010 |
GSJ15..ATM |
1 | ||
| 35168-60010 |
GSJ15..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GSJ15..ATM |
4 | ||
| 35394-30011 |
GSJ15..ATM |
4 | ||
| Common parts | ||||
| 90080-11224 | None epc.PartDetail.None | |||
| 91511-60612 | None epc.PartDetail.None | |||
| 91612-61045 | None epc.PartDetail.None | |||
| 91619-61250 | None epc.PartDetail.None | |||
| 91651-40610 | None epc.PartDetail.None | |||
| 96132-41000 | None epc.PartDetail.None | |||
| 96132-51000 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 3512 | ||||
| 8401 | ||||
| 8410 | ||||

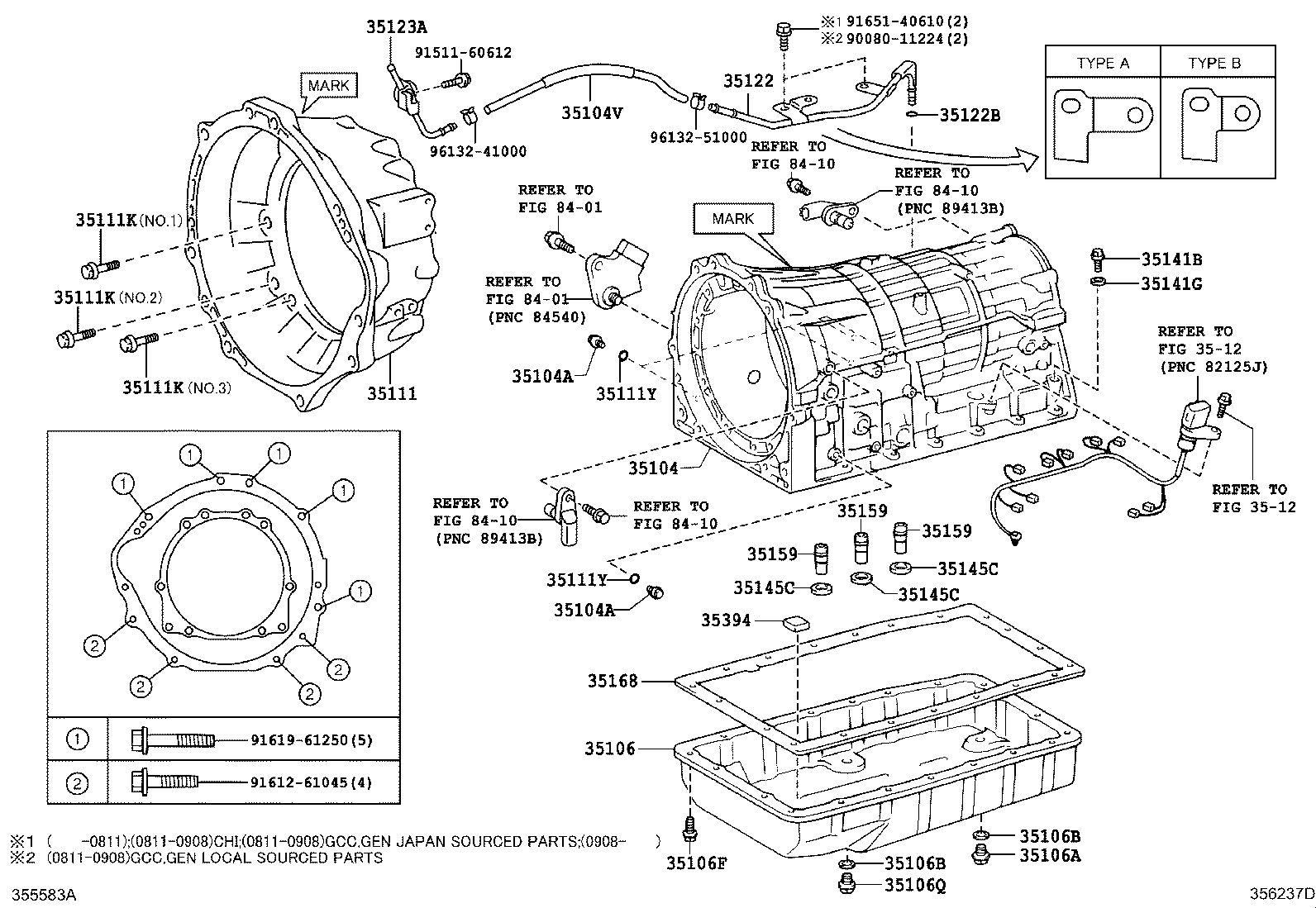

(0908- )ATM
A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-0C010 |
GSJ15..ATM..(GCC,GEN) NO MARK |
1 | ||
| 35104-60221 |
GSJ15..ATM TYPE A:REFER 35-01 |
1 | ||
| 35104-60221 |
GSJ15..ATM MARK A |
1 | ||
| 35104-60221 |
GSJ15..ATM..(ARL,GCC,GEN,SA) MARK A |
1 | ||
| 35104-60221 |
GSJ15..ATM..(GCC,GEN) MARK A |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-A0001 |
GSJ15..ATM..(GCC,GEN) (L) |
5 | ||
| 90341-08001 |
GSJ15..ATM |
5 | ||
| 90341-08001 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
5 | ||
| 90341-08001 |
GSJ15..ATM..(GCC,GEN) (J) |
5 | ||
| 90341-A0001 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (L) |
5 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-A0001 |
GSJ15..ATM..(GCC,GEN) (L) |
5 | ||
| 90341-08001 |
GSJ15..ATM |
5 | ||
| 90341-08001 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
5 | ||
| 90341-08001 |
GSJ15..ATM..(GCC,GEN) (J) |
5 | ||
| 90341-A0001 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (L) |
5 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03188 |
GSJ15..ATM |
1 | ||
| 90930-03211 |
GSJ15..ATM |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11039 |
GSJ15..ATM |
1 | ||
| 35121-35020 |
GSJ15..ATM |
1 | ||
| 35121-35020 |
GSJ15..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-60180 |
GSJ15..ATM..(GCC,GEN) (J) |
1 | ||
| 35106-0C010 |
GSJ15..ATM..(GCC,GEN) (L) |
1 | ||
| 35106-60180 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GSJ15..ATM |
1 | ||
| 90341-10011 |
GSJ15..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GSJ15..ATM |
2 | ||
| 35178-30010 |
GSJ15..ATM..(GCC,GEN) |
2 | ||
| 35178-30010 |
GSJ15..ATM..(GCC,GEN) |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GSJ15..ATM |
2 | ||
| 35178-30010 |
GSJ15..ATM..(GCC,GEN) |
2 | ||
| 35178-30010 |
GSJ15..ATM..(GCC,GEN) |
2 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06173 |
GSJ15..ATM |
20 | ||
| 90119-06173 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
20 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
GSJ15..ATM |
1 | ||
| 90341-10021 |
GSJ15..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-04010 |
GSJ15..ATM MARK UB |
1 | ||
| 35111-60150 |
GSJ15..ATM MARK BH |
1 | ||
| 35111-04010 |
GSJ15..ATM..(GCC,GEN) MARK UB |
1 | ||
| 35111-60150 |
GSJ15..ATM..(ARL,GCC,GEN,SA) MARK BH |
1 | ||
| 35111-60150 |
GSJ15..ATM..(GCC,GEN) MARK BH |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-A0272 |
GSJ15..ATM..(GCC,GEN) *10-1.5PX35-29.3,NO.1 |
6 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-A0272 |
GSJ15..ATM..(GCC,GEN) *10-1.5PX35-29.3,NO.1 |
6 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10947 |
GSJ15..ATM *10-1.50PX35-29.3,NO.3 |
2 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 90119-12378 |
GSJ15..ATM *12-1.75PX38-30,NO.2 |
2 | ||
| 90119-A0272 |
GSJ15..ATM..(GCC,GEN) *10-1.5PX35-29.3,NO.1 |
6 | ||
| 90119-10232 |
GSJ15..ATM *10-1.5PX35-30,NO.1 |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GSJ15..ATM |
5 | ||
| 90301-06196 |
GSJ15..ATM |
5 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GSJ15..ATM |
5 | ||
| 90301-06196 |
GSJ15..ATM |
5 | ||
| 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) | ||||
| 35122-34010 |
GSJ15..ATM..(GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 35122-60020 |
GSJ15..ATM TYPE B:REFER ILLUST. |
1 | ||
| 35122-60020 |
GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE B:REFER ILLUST. |
1 | ||
| 35122-60020 |
GSJ15..ATM..(GCC,GEN) TYPE B:REFER ILLUST. |
1 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-04014 |
GSJ15..ATM |
1 | ||
| 90301-04014 |
GSJ15..ATM |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
GSJ15..ATM |
1 | ||
| 90341-14011 |
GSJ15..ATM |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11030 |
GSJ15..ATM |
1 | ||
| 90301-11030 |
GSJ15..ATM |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35145-60020 |
GSJ15..ATM |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
3 | ||
| 35159-60010 |
GSJ15..ATM..(GCC,GEN) (J) |
3 | ||
| 35159-0C010 |
GSJ15..ATM..(GCC,GEN) (L) |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
3 | ||
| 35159-60010 |
GSJ15..ATM..(GCC,GEN) (J) |
3 | ||
| 35159-0C010 |
GSJ15..ATM..(GCC,GEN) (L) |
3 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60010 |
GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
3 | ||
| 35159-60010 |
GSJ15..ATM..(GCC,GEN) (J) |
3 | ||
| 35159-0C010 |
GSJ15..ATM..(GCC,GEN) (L) |
3 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-60010 |
GSJ15..ATM |
1 | ||
| 35168-60010 |
GSJ15..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GSJ15..ATM |
4 | ||
| 35394-30011 |
GSJ15..ATM |
4 | ||
| Common parts | ||||
| 90080-11224 | None epc.PartDetail.None | |||
| 90949-01C99 | None epc.PartDetail.None | |||
| 91612-61045 | None epc.PartDetail.None | |||
| 91619-61250 | None epc.PartDetail.None | |||
| 91651-40610 | None epc.PartDetail.None | |||
| 96132-51000 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 3512 | ||||
| 8401 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
