GSJ15L-GKASKC (2010)

Toyota Fj Cruiser

Production Nov 2010 - Dec 2015
Engine 1GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

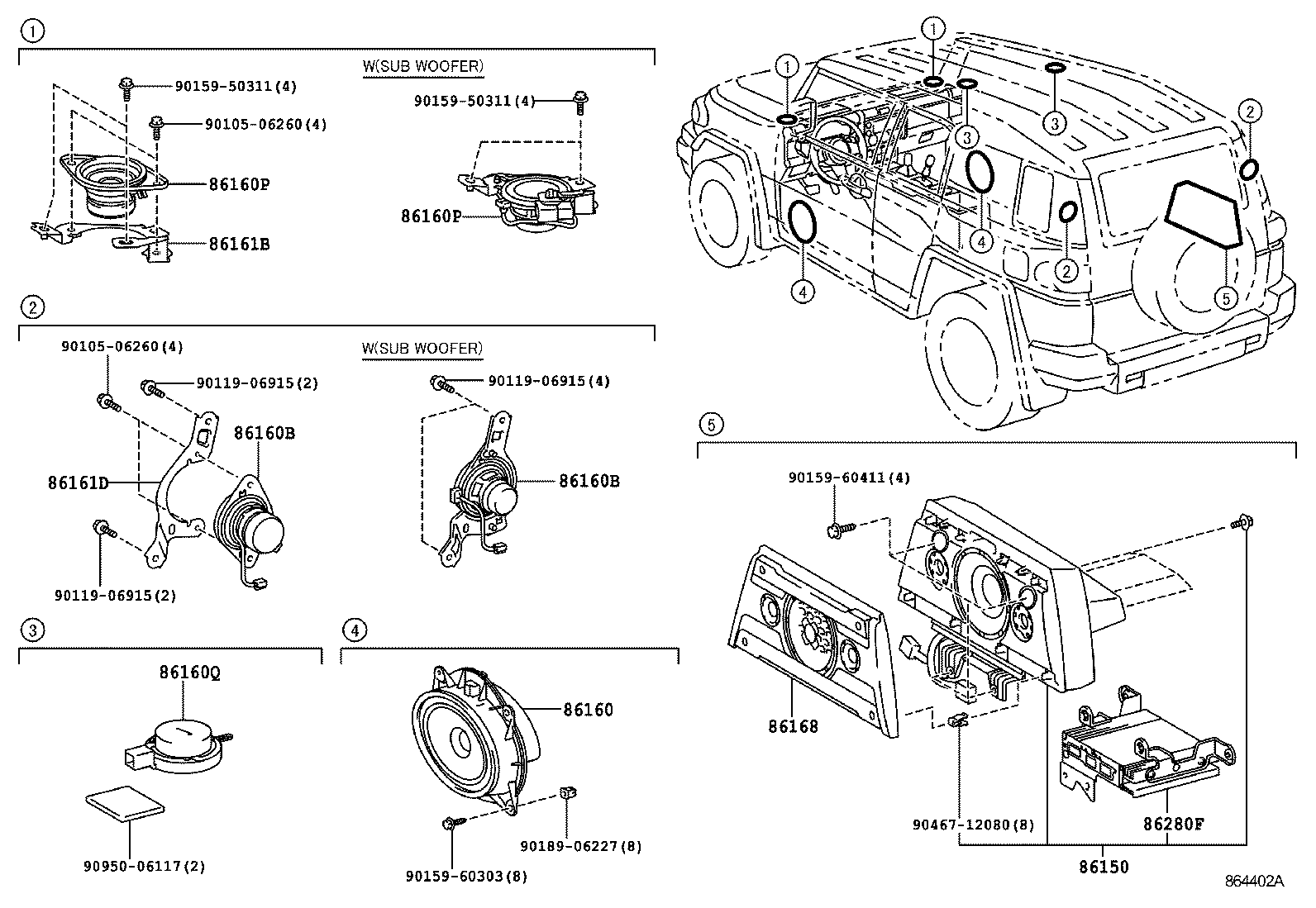

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160B 86160P 86160P 86160Q 86161B 86161D 86168 86280F 9010506260 9010506260 9011906915 9011906915 9011906915 9015950311 9015950311 9015960303 9015960411 9018906227 9046712080 9095006117
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-0W160

GSJ15..CHI

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-04130

GSJ15..CHI

 2
86160B - SPEAKER ASSY, REAR
86160-0WV30

GSJ15..CHI

RH

 1
86160-0WV40

GSJ15..CHI

LH

 1
86160B - SPEAKER ASSY, REAR
86160-0WV30

GSJ15..CHI

RH

 1
86160-0WV40

GSJ15..CHI

LH

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WV20

GSJ15..CHI

LH

 1
86160-0WV10

GSJ15..CHI

RH

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WV20

GSJ15..CHI

LH

 1
86160-0WV10

GSJ15..CHI

RH

 1
86168 - COVER, SPEAKER MOUNTING
86168-0W010

GSJ15..CHI

 1
86280F - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W890

GSJ15..CHI

 1
Common parts
90105-06260
90119-06915
90159-50311
90159-60303
90159-60411
90189-06227
90467-12080
90950-06117
