GSJ15L-GKASKC (2010)
Toyota Fj Cruiser
Production
Nov 2010
-
Dec 2015
Engine
1GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0707- )

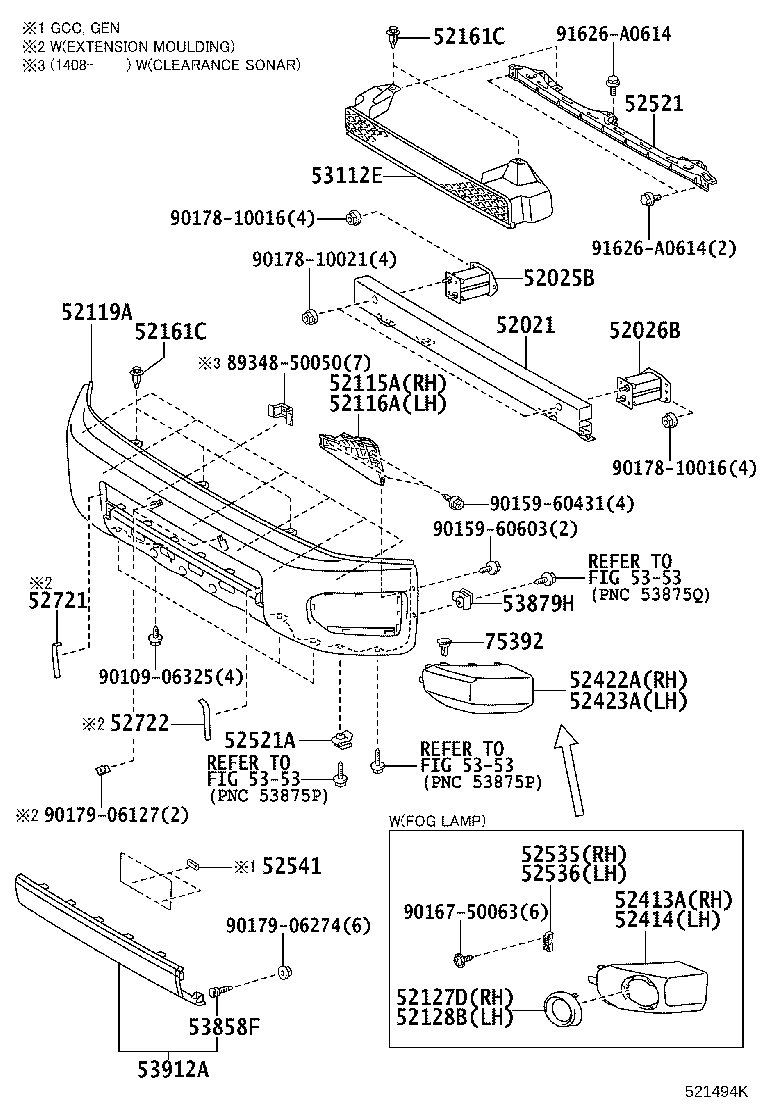

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-35080 |
GSJ15 |
1 | ||
| 52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH | ||||
| 52025-60010 |
GSJ15 |
1 | ||
| 52025-60011 |
GSJ15..ATM |
1 | ||
| 52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH | ||||
| 52026-60011 |
GSJ15..ATM |
1 | ||
| 52026-60010 |
GSJ15 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-35120 |
GSJ15..ATM |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-35110 |
GSJ15..ATM |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-35081 |
GSJ15..CHI NO PAINT REQ. |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GSJ15..ATM |
5 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GSJ15..ATM |
5 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52422-35030 |
GSJ15..CHI NO PAINT REQ. |
1 | ||
| 52423A - PAD, FRONT BUMPER, LH | ||||
| 52423-35020 |
GSJ15..CHI NO PAINT REQ. |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-35030 |
GSJ15..ATM |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05138 |
GSJ15..ATM |
2 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-35011 |
GSJ15..CHI,SA |
1 | ||
| 52721-35010 |
GSJ15..ARL,CHI,SA |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-35010 |
GSJ15..ARL,CHI,SA |
1 | ||
| 52722-35011 |
GSJ15..CHI,SA |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-35030 |
GSJ15..ATM NO PAINT REQ. |
1 | ||
| 53858F - BOLT, WHEEL OPENING SET | ||||
| 53858-60050 |
GSJ15..ATM |
6 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GSJ15..ATM |
2 | ||
| 53912A - PANEL, FRONT VALANCE, LOWER | ||||
| 53901-35180 |
GSJ15 NO PAINT REQ. |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GSJ15..ATM |
12 | ||
| Common parts | ||||
| 89348-50050 | ||||
| 90109-06325 | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90167-50063 | ||||
| 90178-10016 | ||||
| 90178-10021 | ||||
| 90179-06127 | ||||
| 90179-06274 | ||||
| 91626-A0614 | ||||
| Linked diagrams | ||||
| 5353 | ||||
