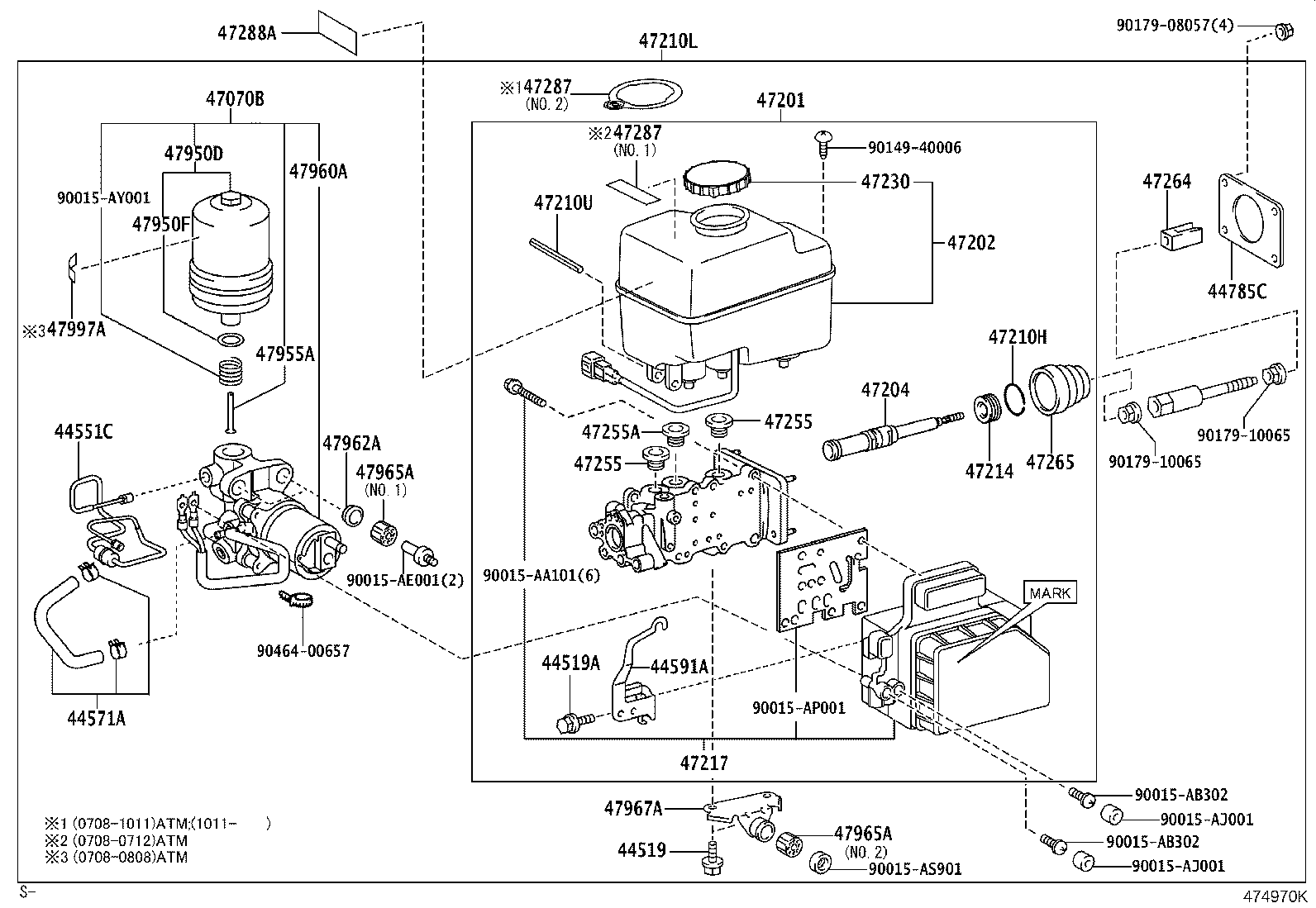

GSJ15L-GKASKC (2010)
Toyota Fj Cruiser
(0707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-24020 |
GSJ15..ATM |
2 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
GSJ15..ATM |
1 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-60040 |
GSJ15..ATM |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-60020 |
GSJ15..ATM |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-35070 |
GSJ15..ATM |
1 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-60020 |
GSJ15..ATM |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-60050 |
GSJ15..ATM |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47025-35240 |
GSJ15..CHI REFER TO PNC 47217 |
1 | ||
| 47025-35241 |
GSJ15..CHI REFER TO PNC 47217 |
1 | ||
| 47025-35242 |
GSJ15..ATM..(ARL,CHI,GCC,GEN) REFER TO PNC 47217 |
1 | ||
| 47025-35260 |
GSJ15..ATM..(CHI,GCC,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),REFER TO PNC 47217 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-60180 |
GSJ15..ATM |
1 | ||
| 47204 - PISTON, MASTER CYLINDER | ||||
| 47026-60090 |
GSJ15..ATM |
1 | ||
| 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) | ||||
| 90520-32012 |
GSJ15..ATM |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-35191 |
GSJ15..CHI REFER TO PNC 47217 |
1 | ||
| 47050-35192 |
GSJ15..ATM..(ARL,CHI,GCC,GEN) REFER TO PNC 47217 |
1 | ||
| 47050-35190 |
GSJ15..CHI REFER TO PNC 47217 |
1 | ||
| 47050-35200 |
GSJ15..ATM..(CHI,GCC,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),REFER TO PNC 47217 |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-15803 |
GSJ15..ATM |
1 | ||
| 47214 - PLUG, MASTER CYLINDER | ||||
| 47027-60090 |
GSJ15..ATM |
1 | ||
| 47217 - SOLENOID, MASTER CYLINDER | ||||
| 47217-35210 |
GSJ15..CHI MARK=89541-35110 |
1 | ||
| 47217-35211 |
GSJ15..CHI MARK=89541-35111 |
1 | ||
| 47217-35220 |
GSJ15..ATM..(CHI,GCC,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),MARK=89541-35290 |
1 | ||
| 47217-35212 |
GSJ15..ATM..(ARL,CHI,GCC,GEN) MARK=89541-35112 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GSJ15..ATM |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
GSJ15..ATM |
2 | ||
| 47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2 | ||||
| 31417-35010 |
GSJ15..ATM |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-60020 |
GSJ15..ATM |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 90029-70001 |
GSJ15..ATM |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-60180 |
GSJ15 |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-60180 |
GSJ15 |
1 | ||
| 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER | ||||
| 47950-60020 |
GSJ15..ATM |
1 | ||
| 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90301-13014 |
GSJ15..ATM |
1 | ||
| 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR | ||||
| 47955-60010 |
GSJ15..ATM |
1 | ||
| 47960A - PUMP ASSY, BRAKE BOOSTER | ||||
| 47960-60050 |
GSJ15..ATM |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
GSJ15..ATM |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 90015-AL001 |
GSJ15..ATM NO.2 |
1 | ||
| 47965-30010 |
GSJ15..ATM NO.1 |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 90015-AL001 |
GSJ15..ATM NO.2 |
1 | ||
| 47965-30010 |
GSJ15..ATM NO.1 |
2 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-60090 |
GSJ15..ATM |
1 | ||
| Common parts | ||||
| 90015-AA101 | ||||
| 90015-AB302 | ||||
| 90015-AE001 | ||||
| 90015-AJ001 | ||||
| 90015-AP001 | ||||
| 90015-AS901 | ||||
| 90015-AY001 | ||||
| 90149-40006 | ||||
| 90179-08057 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||
