GSJ15L-GKASKC (2010)

Toyota Fj Cruiser

Production Nov 2010 - Dec 2015
Engine 1GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

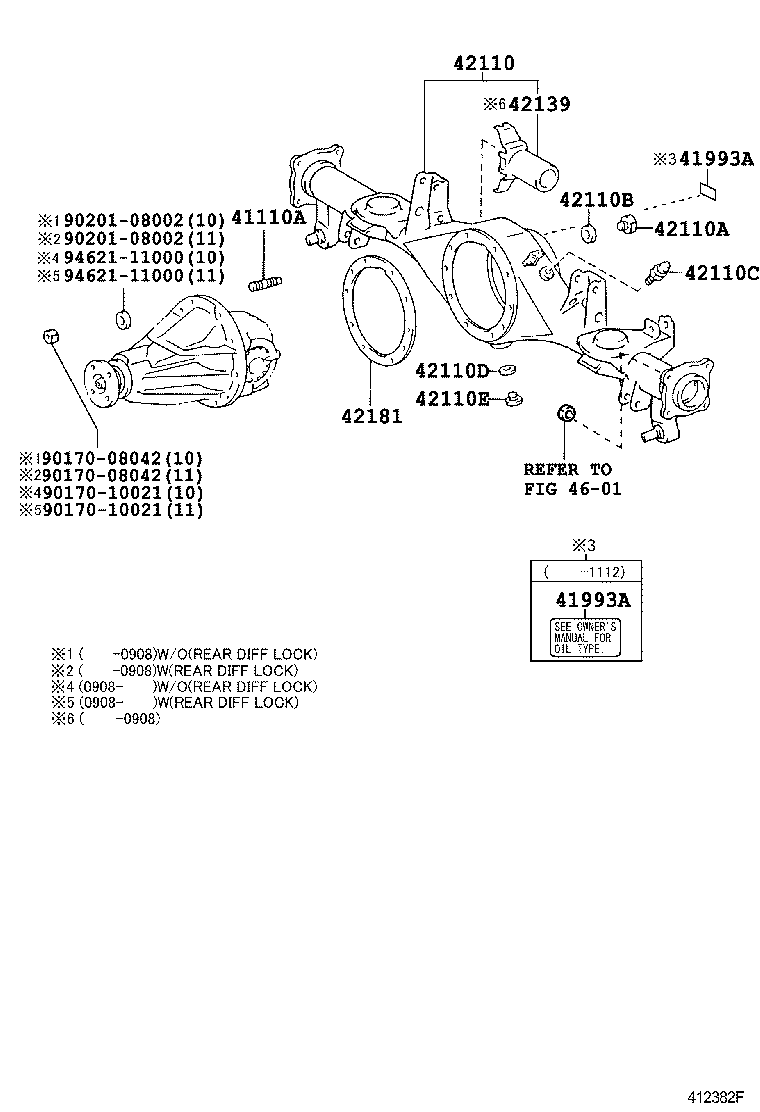

ILLUST NO. 2 OF 2(0707- )

Click highlighted areas on diagram

diagram 41110A 41993A 41993A 42110 42110A 42110B 42110C 42110D 42110E 42139 42181 4601 9017008042 9017008042 9017010021 9017010021 9020108002 9020108002 9462111000 9462111000
Part # Description Qty Price
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10232

GSJ15..ATM..(CHI,GEN,SA)

S=31 & 12.5,L=38

 2
90116-10074

GSJ15..ATM..(CHI,GEN,SA)

S=16 & 12.5,L=40.5

 7
90116-10231

GSJ15..ATM..(CHI,GEN,SA)

S=22 & 12.5,L=37.5

 2
41993A - LABEL, REAR DIFFERENTIAL OIL INFORMATION
41993-34010

GSJ15

 1
41993A - LABEL, REAR DIFFERENTIAL OIL INFORMATION
41993-34010

GSJ15

 1
42110 - HOUSING ASSY, REAR AXLE
42110-60B31

GSJ15..ATM..(CHI,GEN,SA)

 1
42110-60B30

GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006

GSJ15..ATM

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

GSJ15..ATM

 1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03031

GSJ15..ATM

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

GSJ15..ATM

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

GSJ15..ATM

 1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-60150

GSJ15..ATM..(CHI,GEN,SA)

 1
Common parts
90170-08042
90170-10021
90201-08002
94621-11000
Linked diagrams
4601
