GSJ15L-GKASKC (2010)

Toyota Fj Cruiser

Production Nov 2010 - Dec 2015
Engine 1GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0707- )ATM..LHD

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554C 33559C 33560 33563 35906 35907 35974 35975 35976 8401 8401 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-35091B0

GSJ15..CHI

WITHOUT(COLOR PACKAGE),DK.GRAY,TRIM1#

 1
33504-35103B0

GSJ15..CHI,SA

DK.GRAY,TRIM1#

 1
33504-35101B0

GSJ15..CHI,SA

DK.GRAY,TRIM1#

 1
33504-35093B0

GSJ15..CHI

WITHOUT(COLOR PACKAGE),DK.GRAY,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

GSJ15..ATM

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-35020

GSJ15..ATM

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-35090

GSJ15..CHI

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-35050

GSJ15..ATM..LHD

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-35120

GSJ15..ATM..LHD

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-35120

GSJ15..ATM

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-35271

GSJ15..ATM..LHD

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-35171

GSJ15..ATM..LHD

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-35150

GSJ15..ATM

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-35100

GSJ15..ATM

 1
Common parts
91631-60825
Linked diagrams
8401

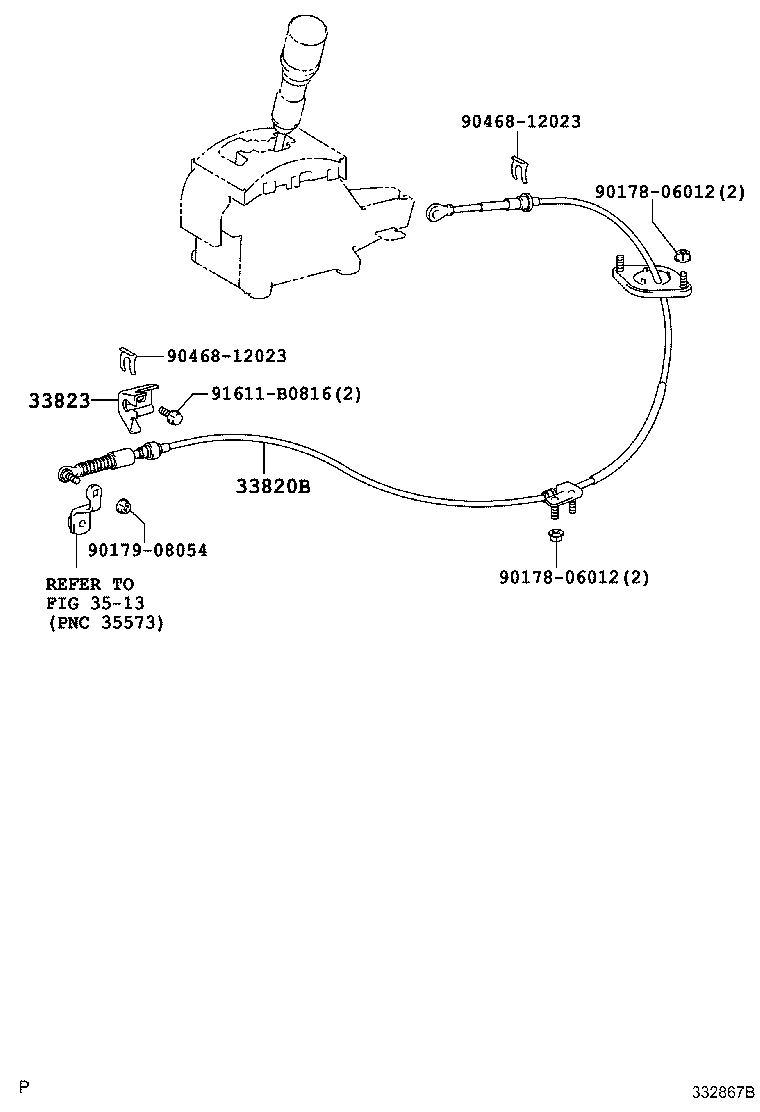

ILLUST NO. 2 OF 2(0707- )ATM

Click highlighted areas on diagram

diagram 33820B 33823 3513 9017806012 9017806012 9017908054 9046812023 9046812023 91611B0816
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-60070

GSJ15..ATM

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-60020

GSJ15..ATM

 1
Common parts
90178-06012
90179-08054
90468-12023
91611-B0816
Linked diagrams
3513
