Toyota Etios NGK15 WIRING & CLAMP

NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999

Engine 2NRFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

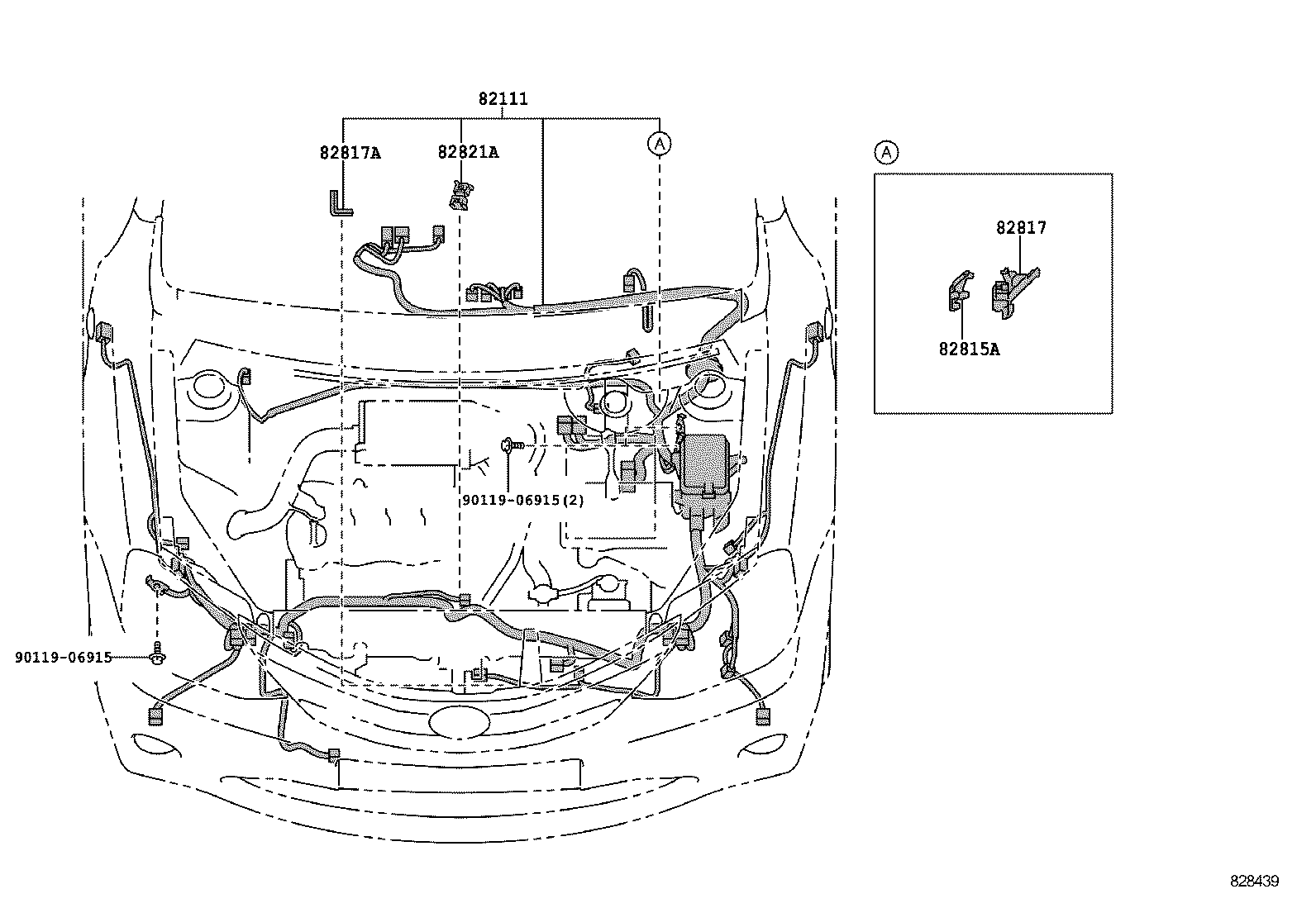

ILLUST NO. 1 OF 7(1209- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82115-0DR00	NGK15..4FC..(X,XS)	04/2016 - 03/2018	1
82115-0DR80	NGK15..(X,XS)..AGT	04/2016 - 03/2018	1
82115-0DS00	NGK15..4FC..AGT	04/2016 - 03/2018	1
82111-0UW50	NGK15..4FC..AGT	03/2018 - 04/2019	1
82115-0DR01	NGK15..4FC..X	03/2018 - 04/2019	1
82111-0UV72	NGK15..4FC..X VEHICLE STABILITY CONT-WITH	04/2019 - 03/2021	1
82111-0UV71	NGK15..4FC..X VEHICLE STABILITY CONT-WITH	03/2018 - 04/2019	1
82111-0UW30	NGK15..(X,XS)..AGT VEHICLE STABILITY CONT-WITH	03/2018 - 04/2019	1
82115-0DR81	NGK15..(X,XS)..AGT	03/2018 - 04/2019	1
82115-0DR02	NGK15..4FC..X	04/2019 - 03/2021	1
82111-0UW31	NGK15..(X,XS)..AGT VEHICLE STABILITY CONT-WITH	04/2019 - 12/2999	1
82115-0DR82	NGK15..(X,XS)..AGT	04/2019 - 12/2999	1
82111-0UW51	NGK15..4FC..AGT	04/2019 - 12/2999	1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-0D190	NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-0D320	NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-12860	NGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..AGT;NGK12..6F..(X,XS)..AGT	09/2012 - 12/2999	1
82821A - COVER, CONNECTOR
82821-30650	NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	1
Common parts
90119-06915

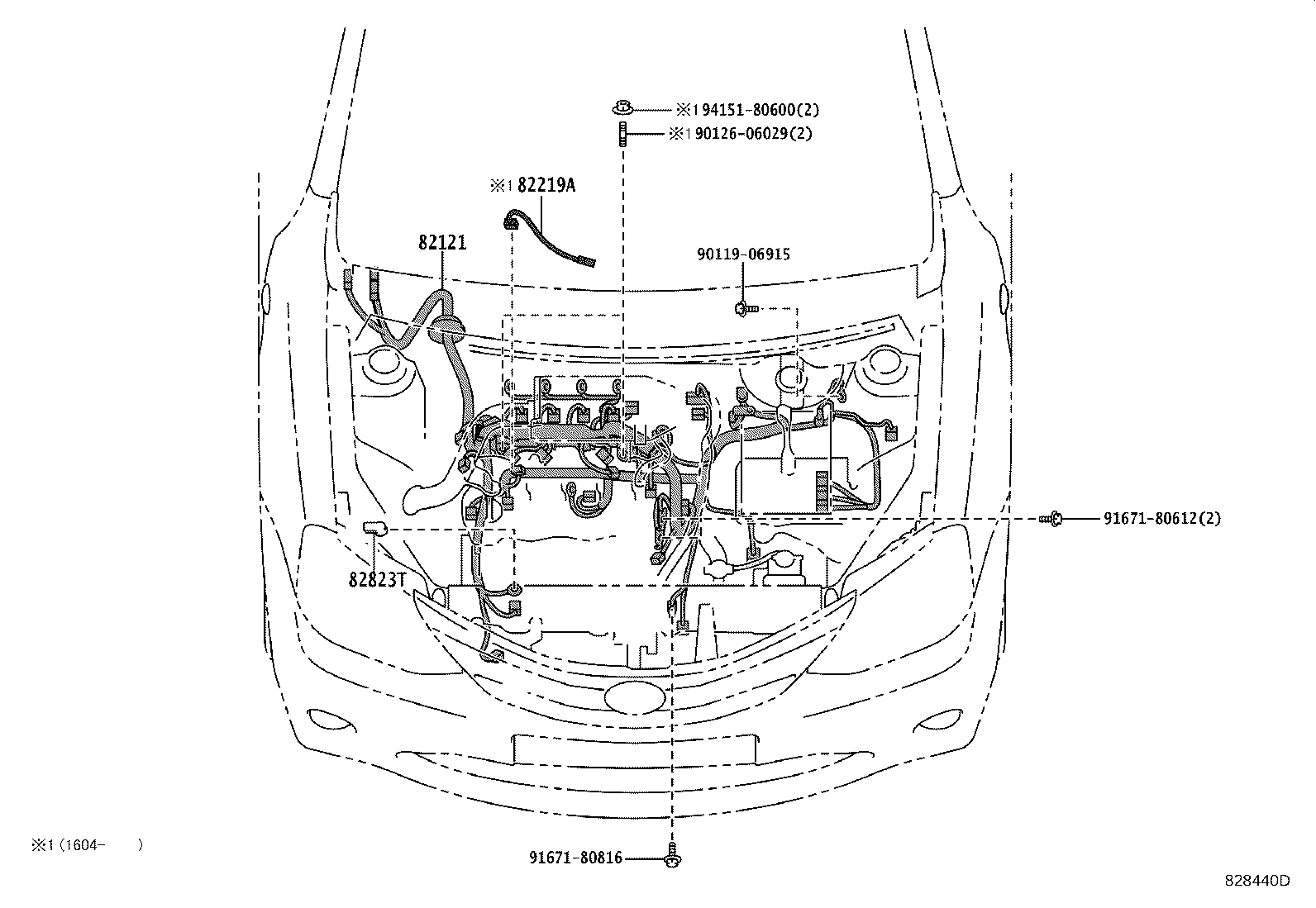

ILLUST NO. 2 OF 7(1209- )

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0DU40	NGK12,15..4FC..AGT	04/2016 - 12/2999	1
82219A - WIRE, SENSOR
82219-0D100	NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS	04/2016 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	1
Common parts
90119-06915
90126-06029
91671-80612
91671-80816
94151-80600

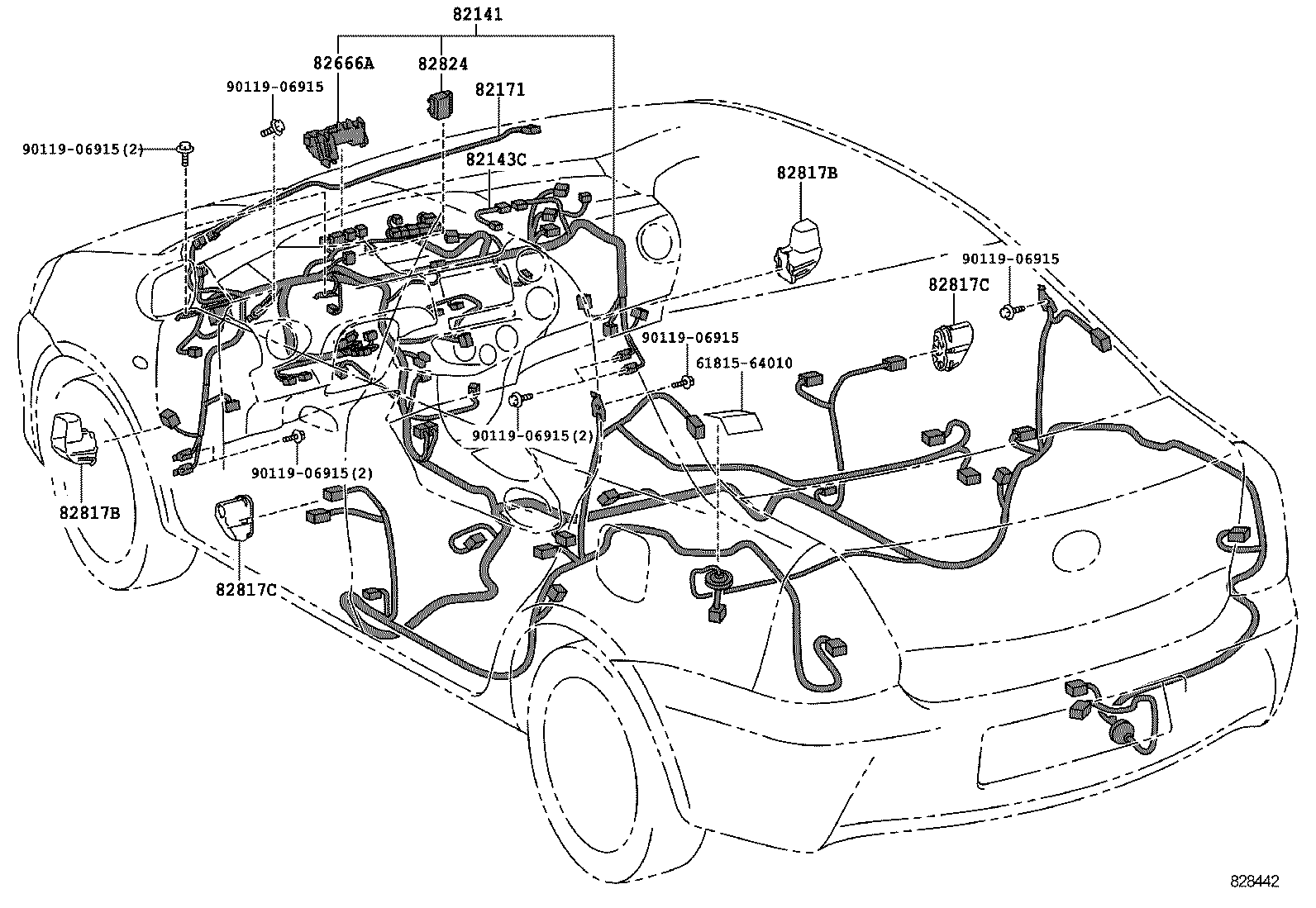

ILLUST NO. 4 OF 7(1209- )NGK15

Click highlighted areas on diagram

INSTRUMENT PANEL & FLOOR & ROOF

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82146-0DA80	NGK15..4FC..X W(*ERCDM)	04/2016 - 03/2018	1
82146-0DD60	NGK15..X..AGT	04/2016 - 03/2018	1
82146-0DA70	NGK15..4FC..X	04/2016 - 03/2018	1
82146-0DB50	NGK15..4FC..AGT	04/2016 - 03/2018	1
82146-0UZ10	NGK15..4FC..X VEHICLE STABILITY CONT-WITH	03/2018 - 03/2021	1
82146-0DA81	NGK15..4FC..X	03/2018 - 03/2021	1
82146-0DD61	NGK15..X..AGT	03/2018 - 12/2999	1
82146-0UZ60	NGK15..4FC..AGT	03/2018 - 12/2999	1
82146-0UZ70	NGK15..X..AGT VEHICLE STABILITY CONT-WITH	03/2018 - 12/2999	1
82143C - WIRE, INSTRUMENT PANEL, NO.3
82143-0D020	NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-0D060	NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-0D330	NGK12,15..5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	2
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-0D330	NGK12,15..5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-52810	NGK11..4FC;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK1#..5F..(CROSS,XLS,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-52810	NGK11..4FC;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK1#..5F..(CROSS,XLS,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	2
Common parts
61815-64010
90119-06915

ILLUST NO. 5 OF 7(1209- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82152 - WIRE, FRONT DOOR, LH
82152-0U400	NGK15..XLS..AGT;NGK12..CROSS,XLS	04/2016 - 12/2999	1
82152-0U410	NGK12,15..X..AGT	04/2016 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-0D290	NGK11..4FC;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK1#..5F..(CROSS,XLS,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-0D170	NGK11..4FC;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK1#..5F..(CROSS,XLS,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)	09/2012 - 12/2999	1
Common parts
90119-06915

ILLUST NO. 7 OF 7(1209- )

Click highlighted areas on diagram

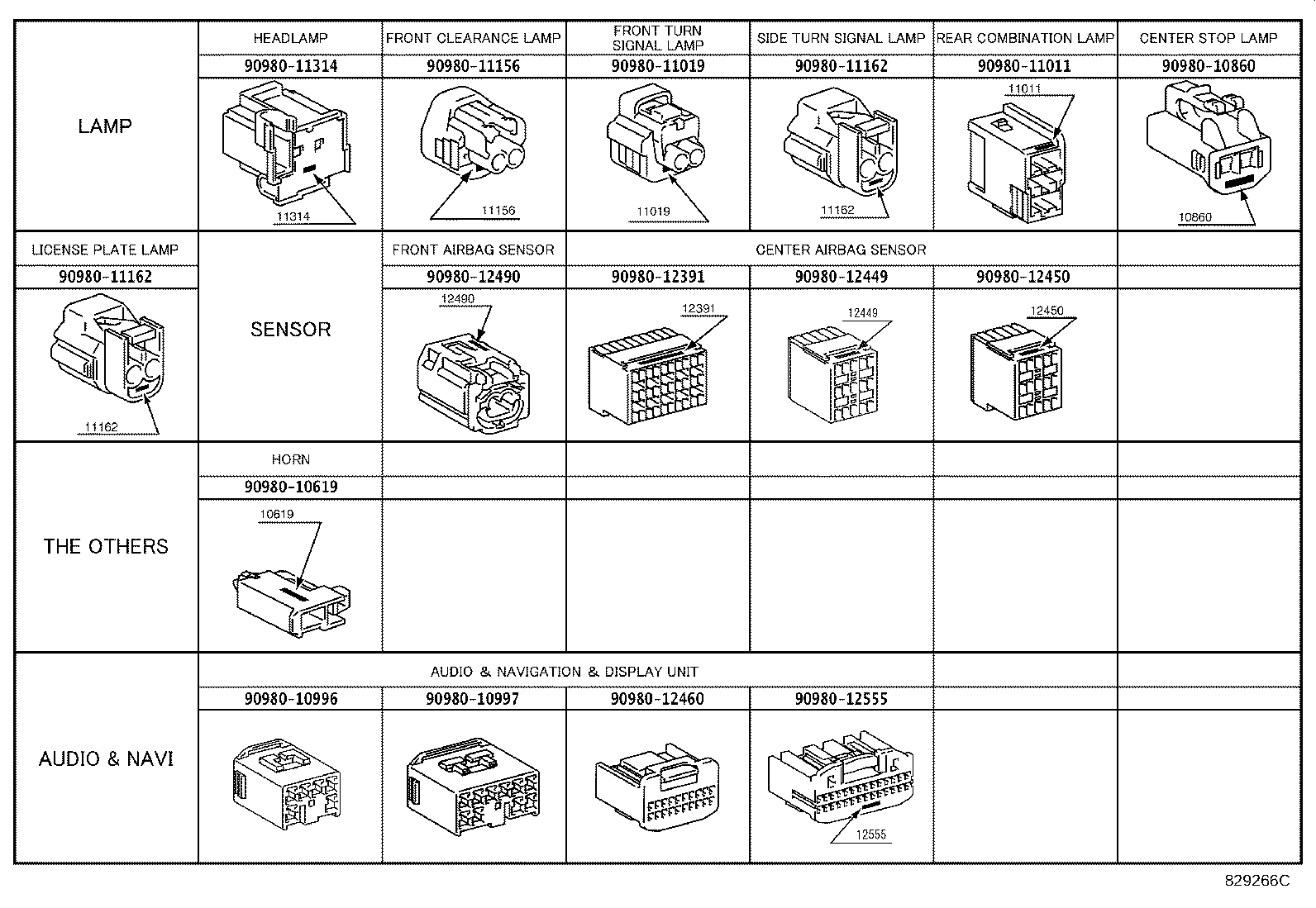

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10860
90980-10996
90980-10997
90980-11011
90980-11019
90980-11156
90980-11162
90980-11314
90980-12391
90980-12449
90980-12450
90980-12460
90980-12490
90980-12555

ILLUST NO. 6 OF 7(1604- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-35520
82711-3F230
82715-0DB20
82715-0DP90
82715-0DQ00
82715-0DQ10
82715-0DQ20
82715-0DQ30
82715-0DQ40
82715-0DQ50
82715-0DQ60
82715-0DR60
82715-0U230
82715-12N70
82715-12N80
82715-12P80
82715-52N70
82715-52P20
82715-52U20
82715-52U30
90119-T0136
90119-T0342
91671-80610
91671-80612
91671-80614
91671-80816
91671-80820
