NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )STD,X,XLS,XS

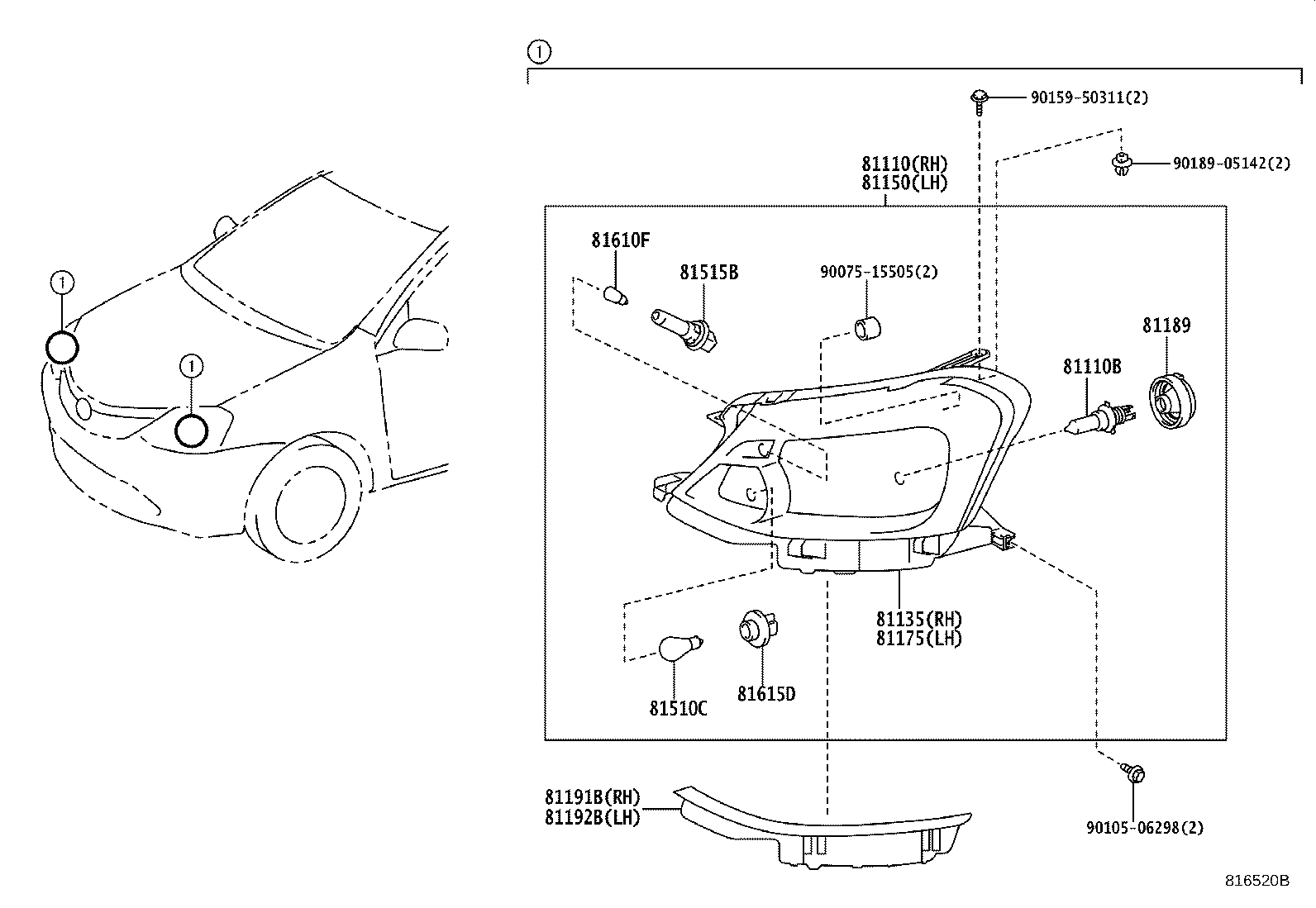

Click highlighted areas on diagram

diagram 81110 81110B 81135 81150 81175 81189 81191B 81192B 81510C 81515B 81610F 81615D 9007515505 9010506298 9015950311 9018905142
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

12V 60/55W,HALOGEN

 2
81189 - COVER, HEADLAMP
90075-65002

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-WF005

NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)

12V 21W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60077

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60069

NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)

 2
Common parts
90075-15505
90105-06298
90159-50311
90189-05142
