NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )X,XLS,XS

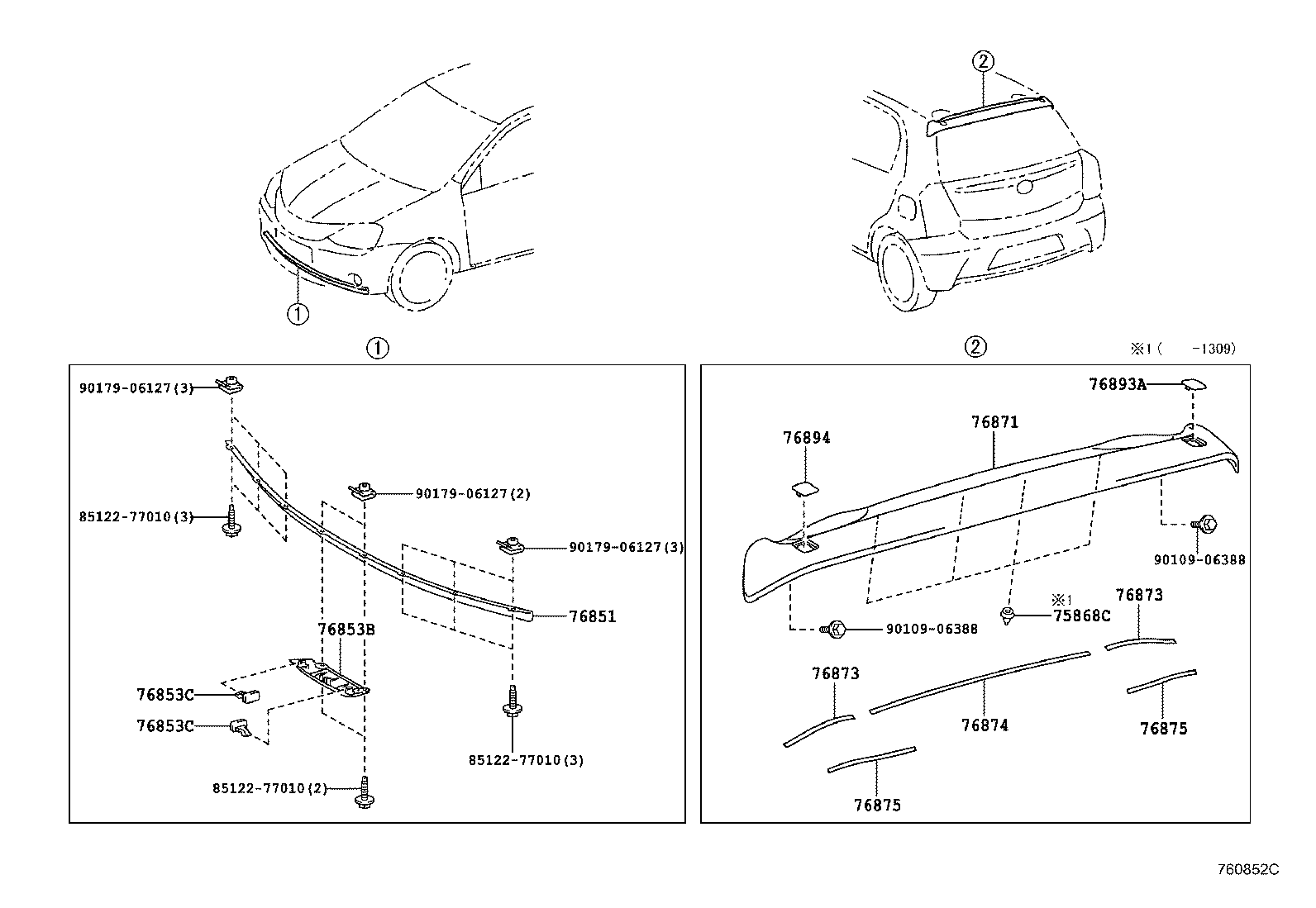

Click highlighted areas on diagram

diagram 75868C 76851 76853B 76853C 76853C 76871 76873 76873 76874 76875 76875 76893A 76894 8512277010 8512277010 8512277010 9010906388 9010906388 9017906127 9017906127 9017906127
Part # Description Qty Price
76851 - COVER, FRONT SPOILER
76851-0D110

NGK15..5F;NGK12..5F..(X,XS);NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..5F..(CROSS,XLS)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
76851-0D110

NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT

W(PACKAGE OPTION : SS4 COLORED)

 1
76851-0D110

NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT

W(PACKAGE OPTION : SS4 BLACK)

 1
76851-0D110

NGK12..XLS;NGK15..XLS..AGT

W(PACKAGE OPTION : SS4 PLATING)

 1
76853B - COVER, FRONT SPOILER, CENTER
76853-0D010

NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)

 1
76853-0D010

NGK12..XLS;NGK15..XLS..AGT

W(PACKAGE OPTION : SS4 PLATING)

 1
76853-0D010

NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT

W(PACKAGE OPTION : SS4 BLACK)

 1
76853-0D010

NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT

W(PACKAGE OPTION : SS4 COLORED)

 1
76853C - RETAINER, FRONT SPOILER, NO.1
75392-35200

NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT

W(PACKAGE OPTION : SS4 BLACK)

 2
75392-35200

NGK12..XLS;NGK15..XLS..AGT

W(PACKAGE OPTION : SS4 PLATING)

 2
75392-35200

NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)

 2
75392-35200

NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT

W(PACKAGE OPTION : SS4 COLORED)

 2
76853C - RETAINER, FRONT SPOILER, NO.1
75392-35200

NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT

W(PACKAGE OPTION : SS4 BLACK)

 2
75392-35200

NGK12..XLS;NGK15..XLS..AGT

W(PACKAGE OPTION : SS4 PLATING)

 2
75392-35200

NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)

 2
75392-35200

NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT

W(PACKAGE OPTION : SS4 COLORED)

 2
Common parts
85122-77010
90109-06388
90179-06127
