NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

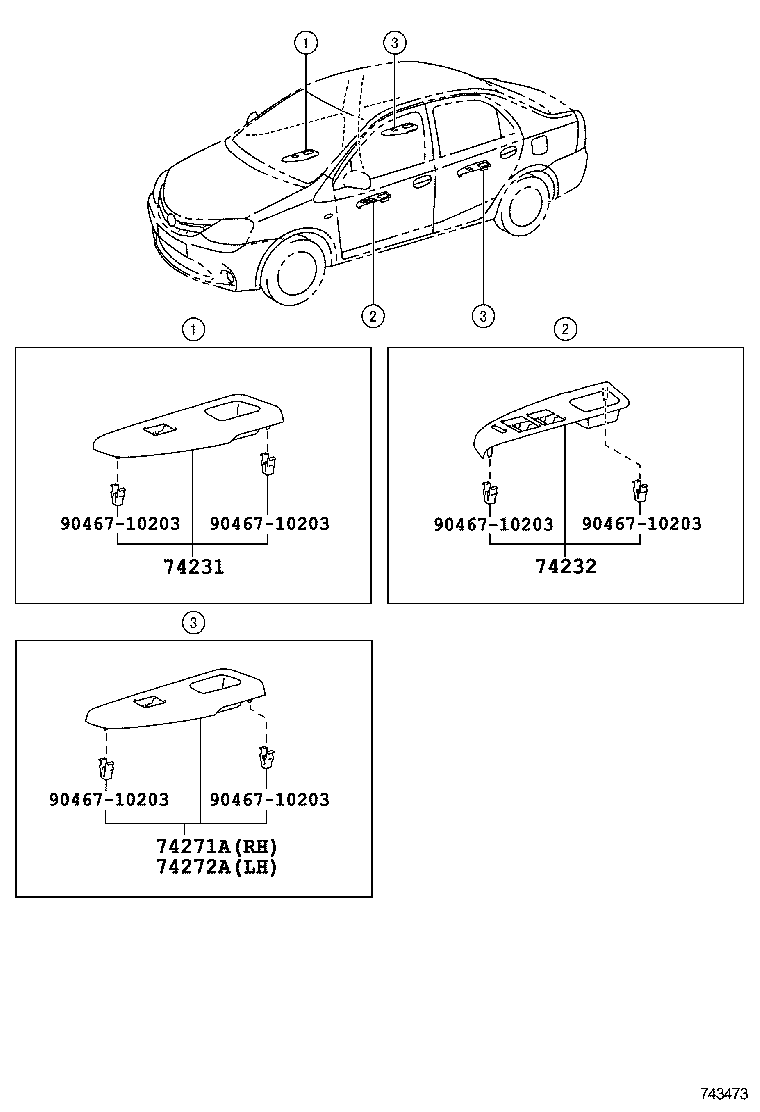

ILLUST NO. 1 OF 2(1209- )

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74271A 74272A 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
Common parts
90467-10203

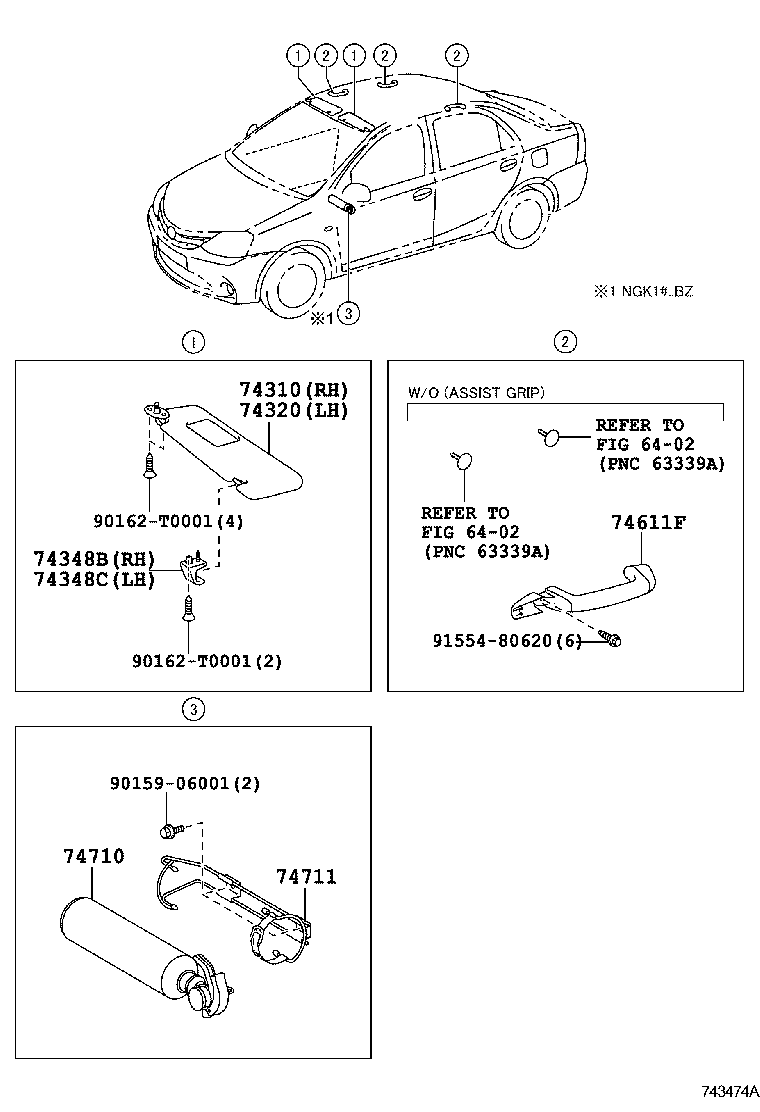

ILLUST NO. 2 OF 2(1209- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP & EXTINGUISHER

diagram 6402 6402 74310 74320 74348B 74348C 74611F 74710 74711 9015906001 90162T0001 90162T0001 9155480620
Part # Description Qty Price
74711 - BRACKET SUB-ASSY, EXTINGUISHER
74702-02020

NGK1#..5F..BZ;NGK12,15..(4FC,6F)..AGT

 1
Common parts
90159-06001
90162-T0001
91554-80620
Linked diagrams
6402
