NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )

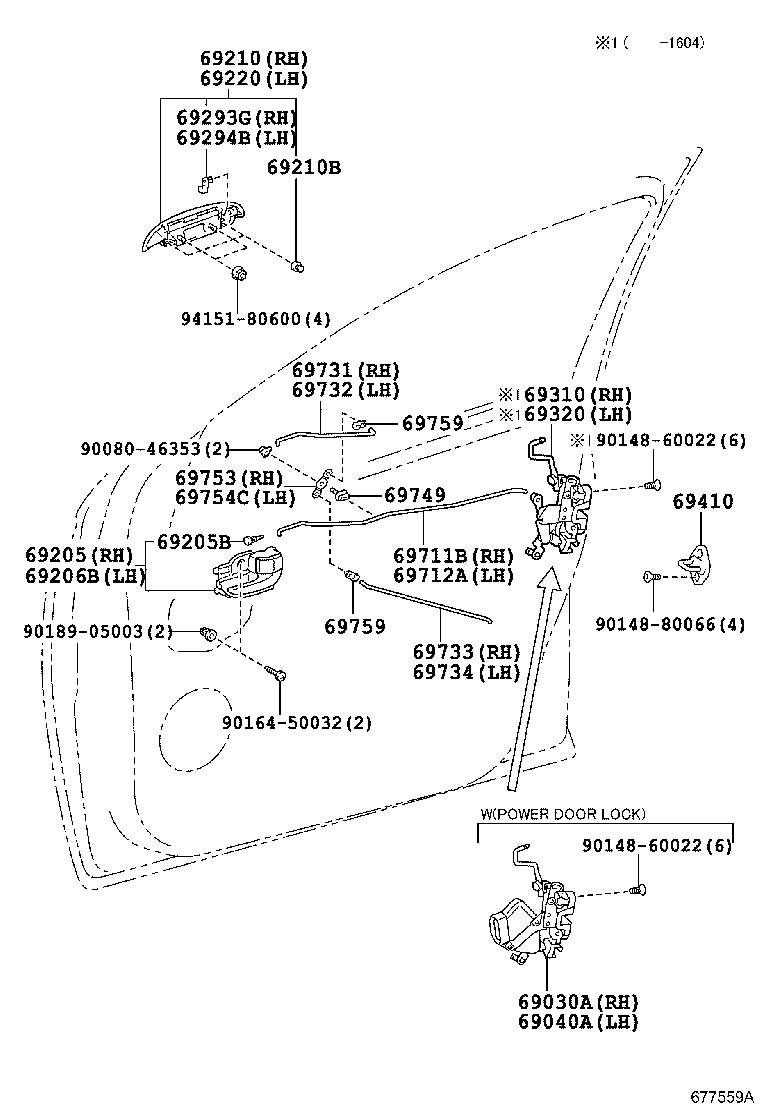

Click highlighted areas on diagram

diagram 69030A 69040A 69205 69205B 69206B 69210 69210B 69220 69293G 69294B 69310 69320 69410 69711B 69712A 69731 69732 69733 69734 69749 69753 69754C 69759 69759 9008046353 9014860022 9014860022 9014880066 9016450032 9018905003 9415180600
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-0D510

NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS

 1
69030-0D630

NGK1#

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-0D610

NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04027

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-0D110

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

NO PAINT REQ.

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04028

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-0D070

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

NO PAINT REQ.

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-10010

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-10020

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-0D050

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-0D020

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-0D020

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69731 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69731-0D020

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69732 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69732-0D020

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69733 - LINK, FRONT DOOR INSIDE LOCKING, RH
69733-0D040

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69734 - LINK, FRONT DOOR INSIDE LOCKING, LH
69734-0D040

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-0D010

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
69753 - BELLCRANK, DOOR LOCK CONTROL, RH
69753-0D020

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69754C - BELLCRANK, DOOR LOCK CONTROL, LH
69753-0D020

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20050

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

BROWN

 1
69759-20040

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

YELLOW

 3
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20050

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

BROWN

 1
69759-20040

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

YELLOW

 3
Common parts
90080-46353
90148-60022
90148-80066
90164-50032
90189-05003
94151-80600
