NGK15L-AEPGKH (2016)
Toyota Etios
Production
Apr 2016
-
Sep 9999
Engine
2NRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1209- )NGK15

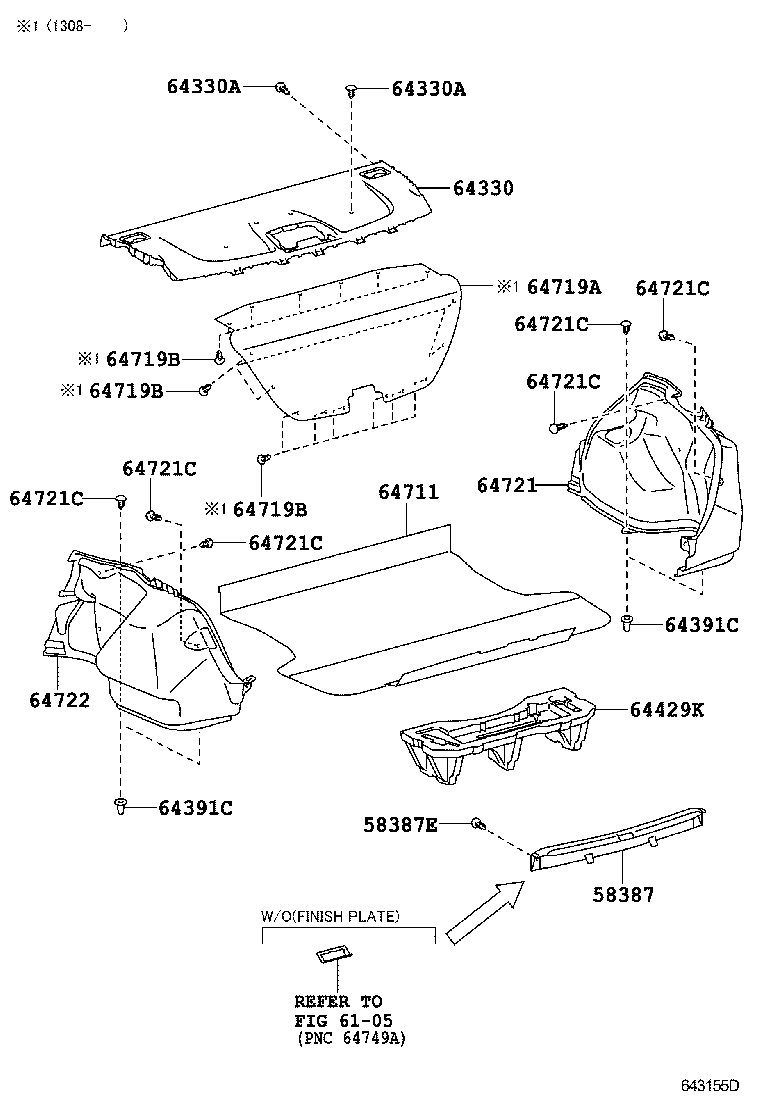

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-0D060C0 |
NGK15..AGT BLACK,TRIM2# |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
2 | ||
| 90467-08186C0 |
NGK15 BLACK |
2 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0D212C0 |
NGK15..AGT BLACK,TRIM2# |
1 | ||
| 64391C - CAP | ||||
| 67772-0D040 |
NGK15..5F;NGK15..(4FC,6F)..AGT |
4 | ||
| 64391C - CAP | ||||
| 67772-0D040 |
NGK15..5F;NGK15..(4FC,6F)..AGT |
4 | ||
| 64429K - BOX, LUGGAGE ROOM | ||||
| 64429-0D030 |
NGK15..5F;NGK15..(4FC,6F)..AGT |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-0D050C0 |
NGK15..AGT BLACK,TRIM2# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
16 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
16 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
16 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
8 | ||
| 90467-08186C0 |
NGK15 BLACK |
8 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
8 | ||
| 90467-08186C0 |
NGK15 BLACK |
8 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
8 | ||
| 90467-08186C0 |
NGK15 BLACK |
8 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
8 | ||
| 90467-08186C0 |
NGK15 BLACK |
8 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
8 | ||
| 90467-08186C0 |
NGK15 BLACK |
8 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NGK15..AGT BLACK |
8 | ||
| 90467-08186C0 |
NGK15 BLACK |
8 | ||
| Linked diagrams | ||||
| 6105 | ||||
