NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )NGK15

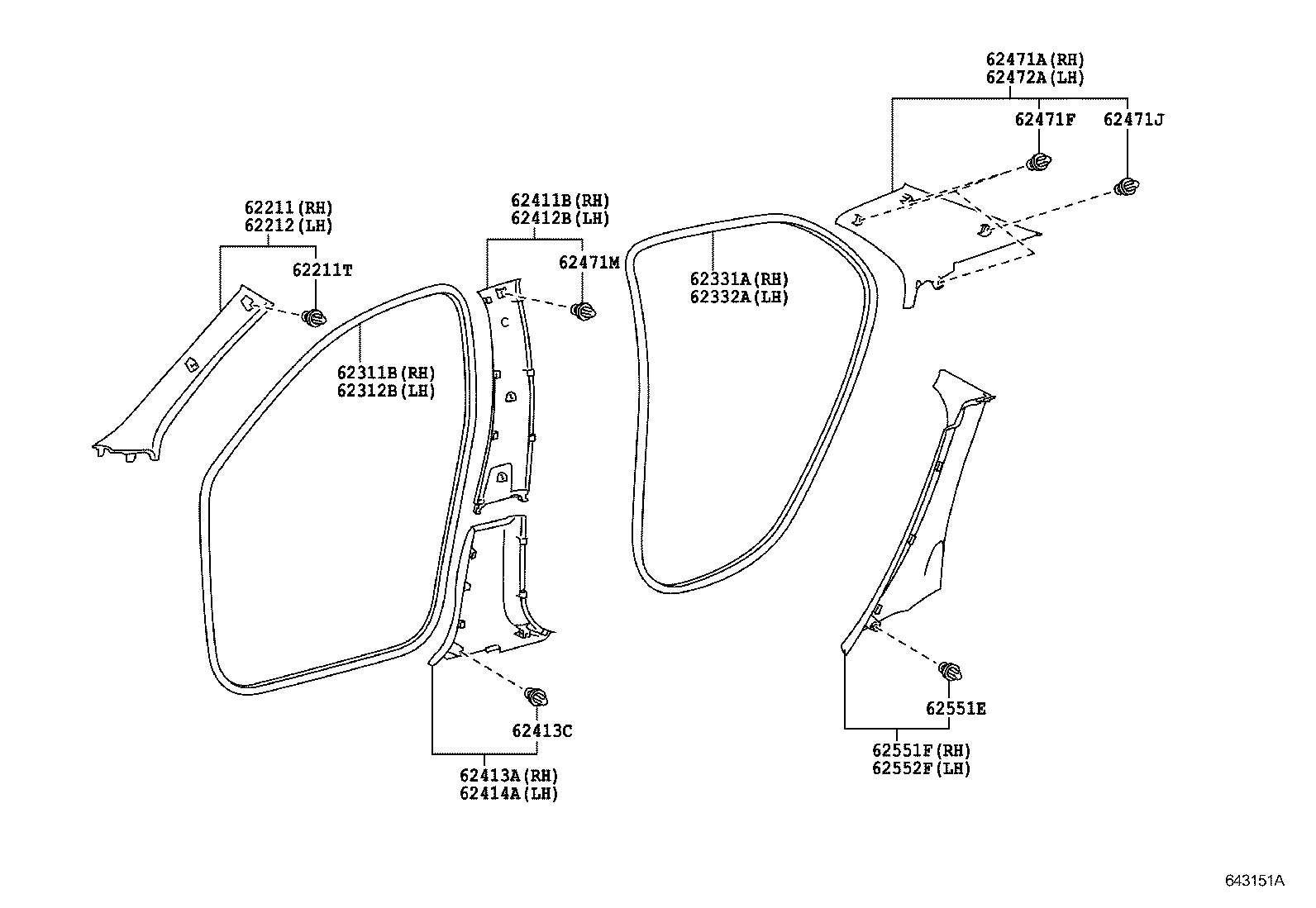

Click highlighted areas on diagram

diagram 62211 62211T 62212 62311B 62312B 62331A 62332A 62411B 62412B 62413A 62413C 62414A 62471A 62471F 62471J 62471M 62472A 62551E 62551F 62552F
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-0D551B0

NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS

GRAY,TRIM2#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10161

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 4
62212 - GARNISH, FRONT PILLAR, LH
62212-0D551B0

NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS

GRAY,TRIM2#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10167

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 4
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-10161

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 6
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10167

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
62471M - CLIP
90467-10161

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 6
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
90467-10161

NGK15..5F;NGK15..(4FC,6F)..AGT

 2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-0D040C0

NGK15..AGT

BLACK,TRIM2#

 1
62552F - GARNISH, REAR SEAT SIDE, LH
62552-0D070C0

NGK15..AGT

BLACK,TRIM2#

 1
