NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )NGK15

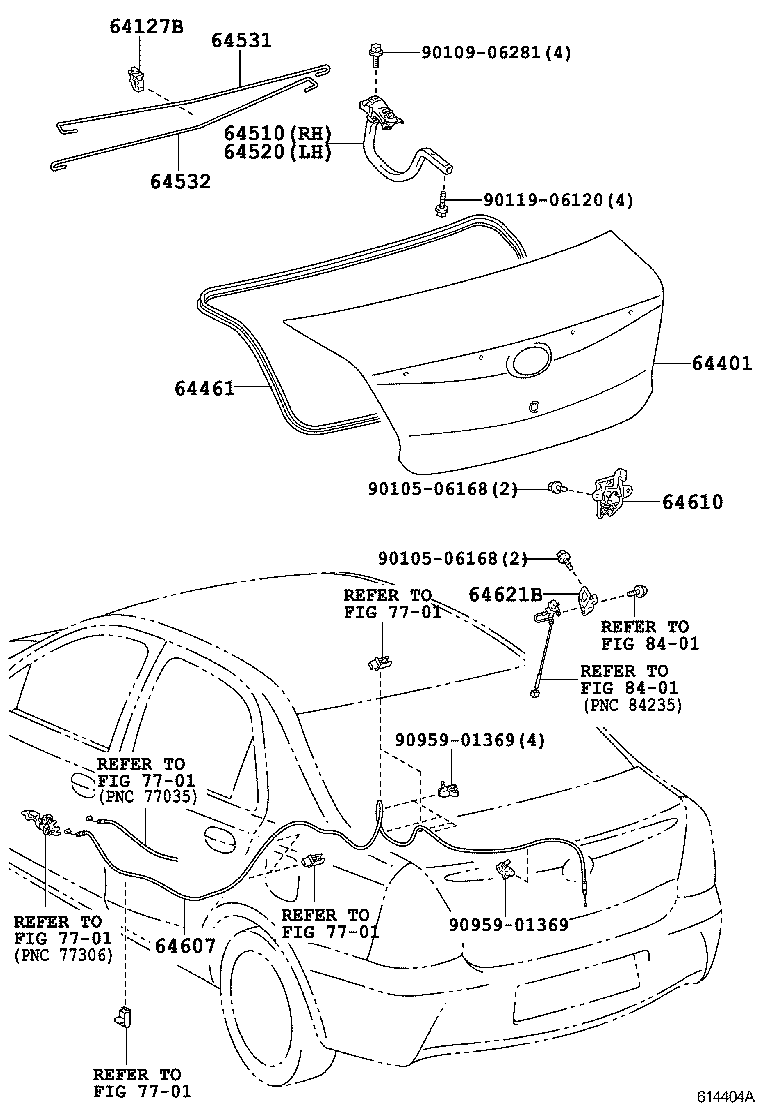

Click highlighted areas on diagram

diagram 64127B 64401 64461 64510 64520 64531 64532 64607 64610 64621B 7701 7701 7701 7701 7701 8401 8401 9010506168 9010506168 9010906281 9011906120 9095901369 9095901369
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-0D030

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-0D070

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-0D040

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-0D040

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-0D150

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-0D150

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-0D160

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-0D060

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-0D030

NGK15..5F;NGK15..(4FC,6F)..AGT

 1
Common parts
90105-06168
90109-06281
90119-06120
90959-01369
Linked diagrams
7701
8401
