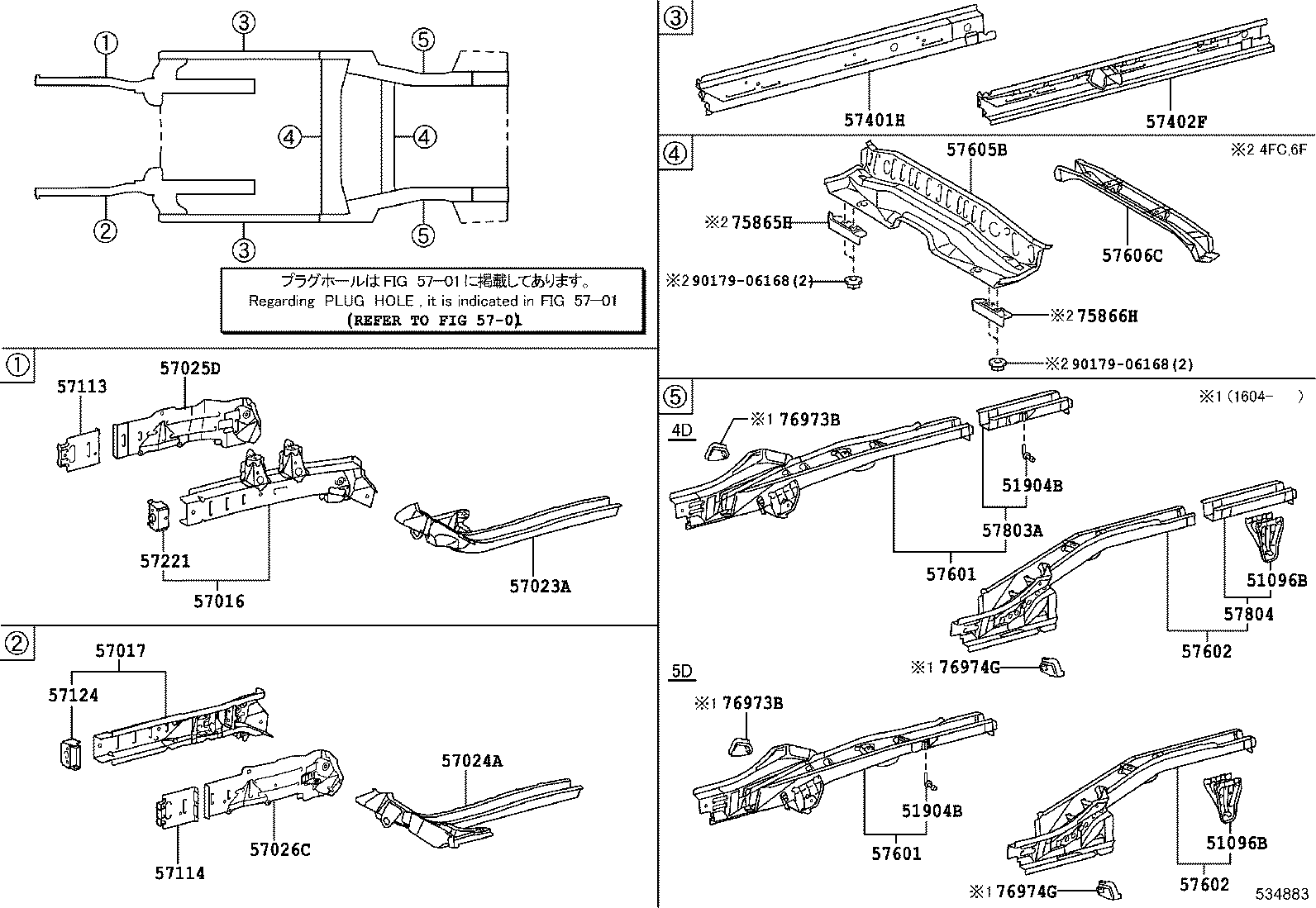

NGK15L-AEPGKH (2016)
Toyota Etios
(1209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51904B - HANGER SUB-ASSY, EXHAUST PIPE, NO.4 | ||||
| 51904-0D030 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,XLS)..BZ |
1 | ||
| 51904B - HANGER SUB-ASSY, EXHAUST PIPE, NO.4 | ||||
| 51904-0D030 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,XLS)..BZ |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-0D080 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-0D260 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 57023A - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-0D100 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 57024A - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-0D140 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-0D040 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-0D040 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 57124 - SUPPORT, FRONT SIDE MEMBER, LH | ||||
| 57124-0D030 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 57221 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57013-0D030 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0D301 |
NGK15..AGT |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0D301 |
NGK15..AGT |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0D240 |
NGK15 |
1 | ||
| 57602-0D241 |
NGK15 |
1 | ||
| 57602-0D242 |
NGK15..AGT |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0D240 |
NGK15 |
1 | ||
| 57602-0D241 |
NGK15 |
1 | ||
| 57602-0D242 |
NGK15..AGT |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0D200 |
NGK11..4FC;NGK15..AGT;NGK12..(CROSS,XLS)..BZ |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0D080 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,XLS)..BZ |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-0D020 |
NGK15..5F;NGK15..(4FC,6F)..AGT |
1 | ||
| 75865H - PROTECTOR, ROCKER PANEL MOULDING, NO.5 | ||||
| 75865-0D060 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 75866H - PROTECTOR, ROCKER PANEL MOULDING, NO.6 | ||||
| 75866-0D060 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 76973B - COVER, REAR UNDER SIDE, RH | ||||
| 76973-0D040 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 76973B - COVER, REAR UNDER SIDE, RH | ||||
| 76973-0D040 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 76974G - COVER, REAR UNDER SIDE, LH | ||||
| 76974-0D040 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 76974G - COVER, REAR UNDER SIDE, LH | ||||
| 76974-0D040 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| Common parts | ||||
| 90179-06168 | ||||
| Linked diagrams | ||||
| 5701 | ||||
