NGK15L-AEPGKH (2016)
Toyota Etios
(1209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-0D905 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53201-0D905 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53201-0D909 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53201-0D905 |
NGK1# W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53201-0D909 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53201-0D909 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53201-0D905 |
NGK12,15..XLS W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53201-0D907 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53201-0D907 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT |
1 | ||
| 53201-0D907 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53201-0D907 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-0D060 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53211-0D060 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-0D090 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53213C - SUPPORT, RADIATOR, UPPER FRONT | ||||
| 53213-0D080 |
NGK1# |
1 | ||
| 53213-0D080 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53213-0D080 |
NGK1# W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53213-0D080 |
NGK12,15..XLS W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53213-0D080 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53213-0D270 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-0D080 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53214-0D080 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53216A - SUPPORT, RADIATOR, UPPER | ||||
| 53216-0D070 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-0D070 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53208-0D070 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53208-0D070 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 53208-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53208-0D070 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53208-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53208-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-0D060 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53257-0D010 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-0D010 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53258-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-0D010 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53271-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-0D010 |
NGK1#..X,XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53272-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53287F - GROMMET, NO.1 | ||||
| 90189-06193 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-0D040 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0D121 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 53701-0D120 |
NGK1# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0D110 |
NGK1# |
1 | ||
| 53702-0D111 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-0D050 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53713-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-0D060 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-0D020 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53724-0D040 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-0D040 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-0D040 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0D740 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-0D090 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) RH |
1 | ||
| 55139-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) LH |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-0D090 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) RH |
1 | ||
| 55139-0D010 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) LH |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-0D060 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-0D060 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0D350 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0D220 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 55232 - SHEET, DASH PANEL INSULATOR, LH | ||||
| 55232-0D020 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 55233A - SHEET, DASH PANEL INSULATOR | ||||
| 55233-0D040 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 55234 - SHEET, DASH PANEL INSULATOR, NO.2 | ||||
| 55234-0D040 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| Common parts | ||||
| 88891-0D180 | ||||
| 90105-06137 | ||||
| 90109-06328 | ||||
| 90119-06137 | ||||
| 90119-06767 | ||||
| 90467-07164 | ||||
| 90467-07214 | ||||

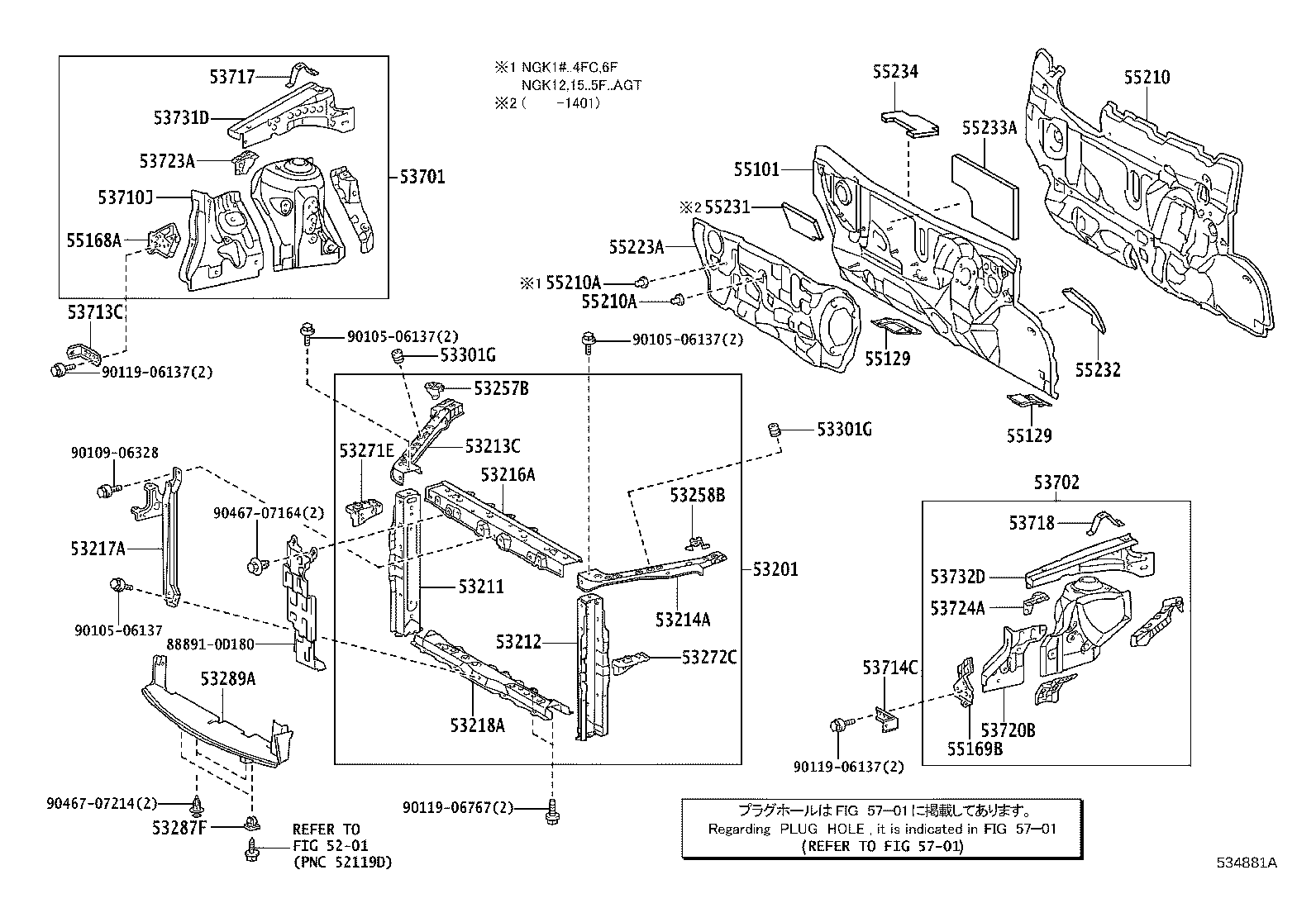

| Linked diagrams | ||||
| 5201 | ||||
| 5701 | ||||
