NGK15L-AEPGKH (2016)
Toyota Etios

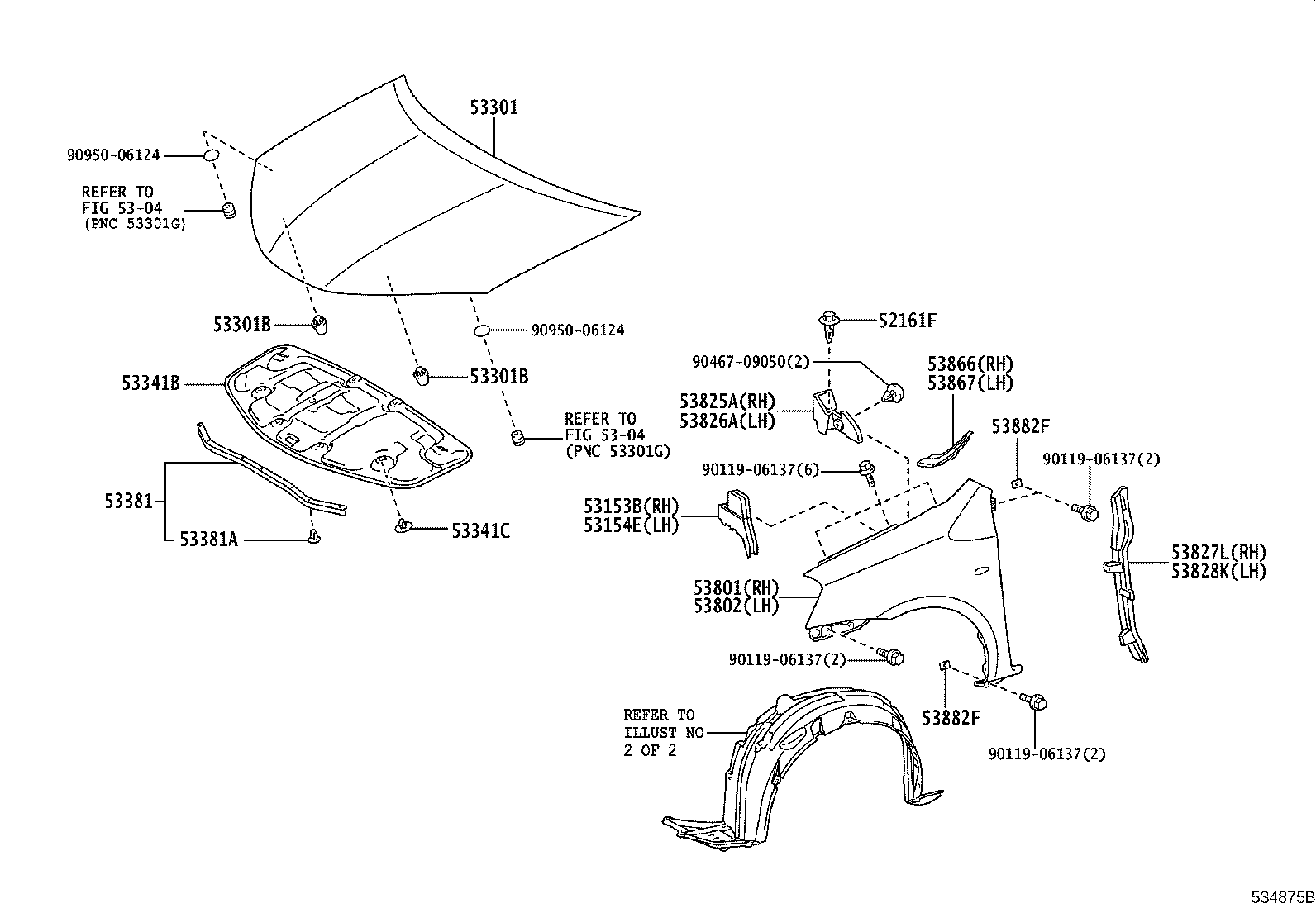

ILLUST NO. 1 OF 2(1604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161F - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
2 | ||
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-09115 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-09115 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0D290 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
6 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-0D080 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-T0013 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
7 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-0D140 |
NGK12..XLS;NGK15..XLS..AGT |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-0D140 |
NGK12..XLS;NGK15..XLS..AGT |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0D090 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0D090 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-0D080 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-0D080 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
4 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
4 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90467-09050 | ||||
| 90950-06124 | ||||
| Linked diagrams | ||||
| 5304 | ||||

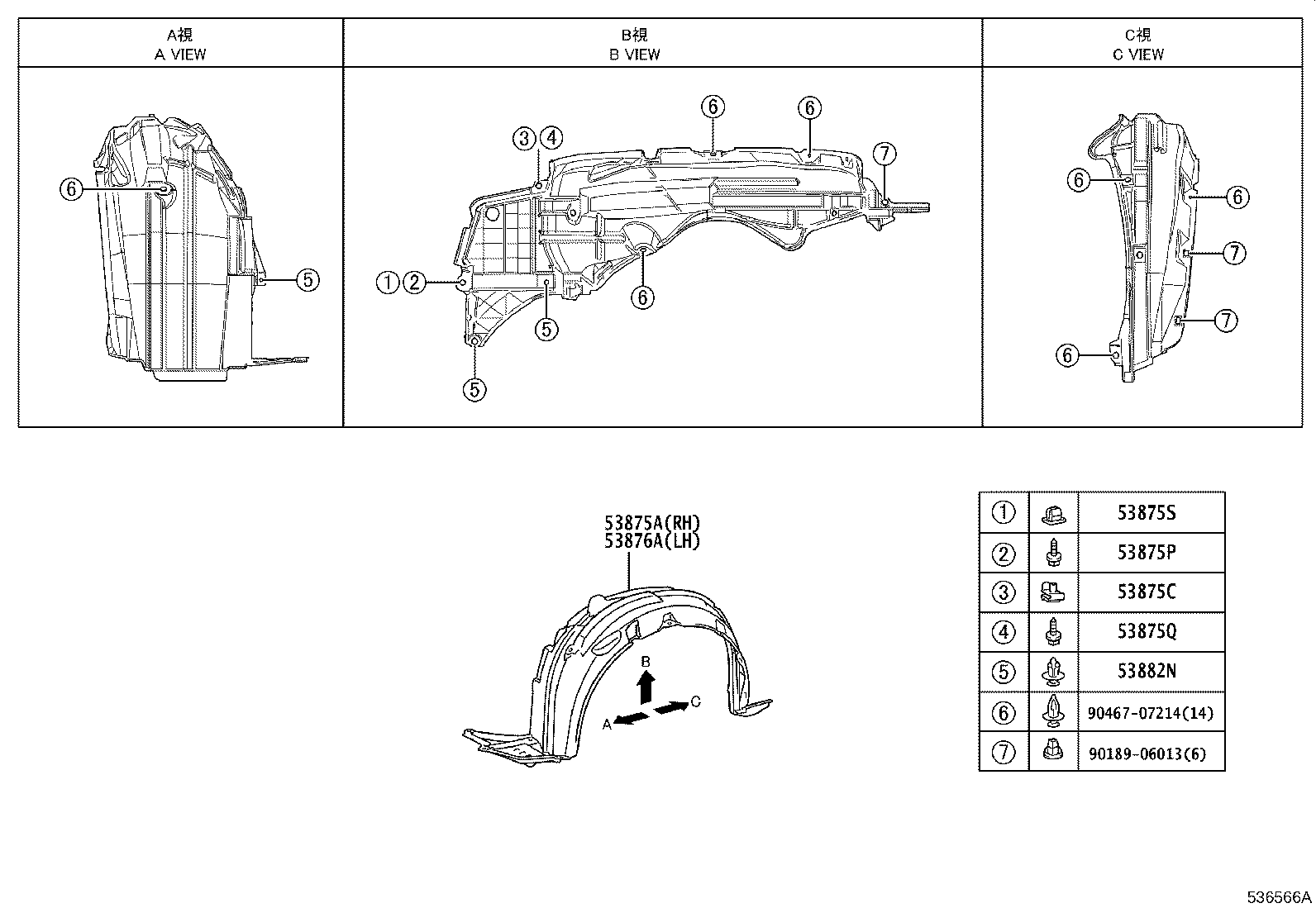

ILLUST NO. 2 OF 2(1209- )STD,X,XLS,XS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-YP010 |
NGK1#..X W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53805-YP020 |
NGK12,15..XLS,XS W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53805-YP010 |
NGK1#..X W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53805-YP020 |
NGK12,15..XLS W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53875-0D460 |
NGK11..4FC;NGK12,15..X..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53805-YP020 |
NGK12,15..XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53875-0D480 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53875-0D460 |
NGK11..4FC;NGK12,15..X..AGT |
1 | ||
| 53875-0D460 |
NGK11..4FC;NGK12,15..X..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53875-0D480 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53875-YP050 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53875-YP040 |
NGK11..4FC;NGK12,15..X..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53875-0D480 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53875-YP050 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53875-YP040 |
NGK11..4FC;NGK12,15..X..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53875-0D480 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT |
1 | ||
| 53875-YP050 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-05138 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06193 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-YP010 |
NGK1#..X W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53806-YP020 |
NGK12,15..XLS,XS W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53806-YP020 |
NGK12,15..XLS W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53806-YP010 |
NGK1#..X W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53876-0D460 |
NGK11..4FC;NGK12,15..X..AGT |
1 | ||
| 53876-0D480 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53876-YP040 |
NGK11..4FC;NGK12,15..X..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53876-YP050 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53876-0D460 |
NGK11..4FC;NGK12,15..X..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53876-0D480 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT |
1 | ||
| 53806-YP020 |
NGK12,15..XLS,XS W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53876-0D460 |
NGK11..4FC;NGK12,15..X..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53876-0D480 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53876-0D480 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53876-YP050 |
NGK12..XLS;NGK12..XS..AGT;NGK15..(XLS,XS)..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53876-YP040 |
NGK11..4FC;NGK12,15..X..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53876-YP050 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-10216 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
4 | ||
| Common parts | ||||
| 90189-06013 | ||||
| 90467-07214 | ||||
