NGK15L-AEPGKH (2016)
Toyota Etios

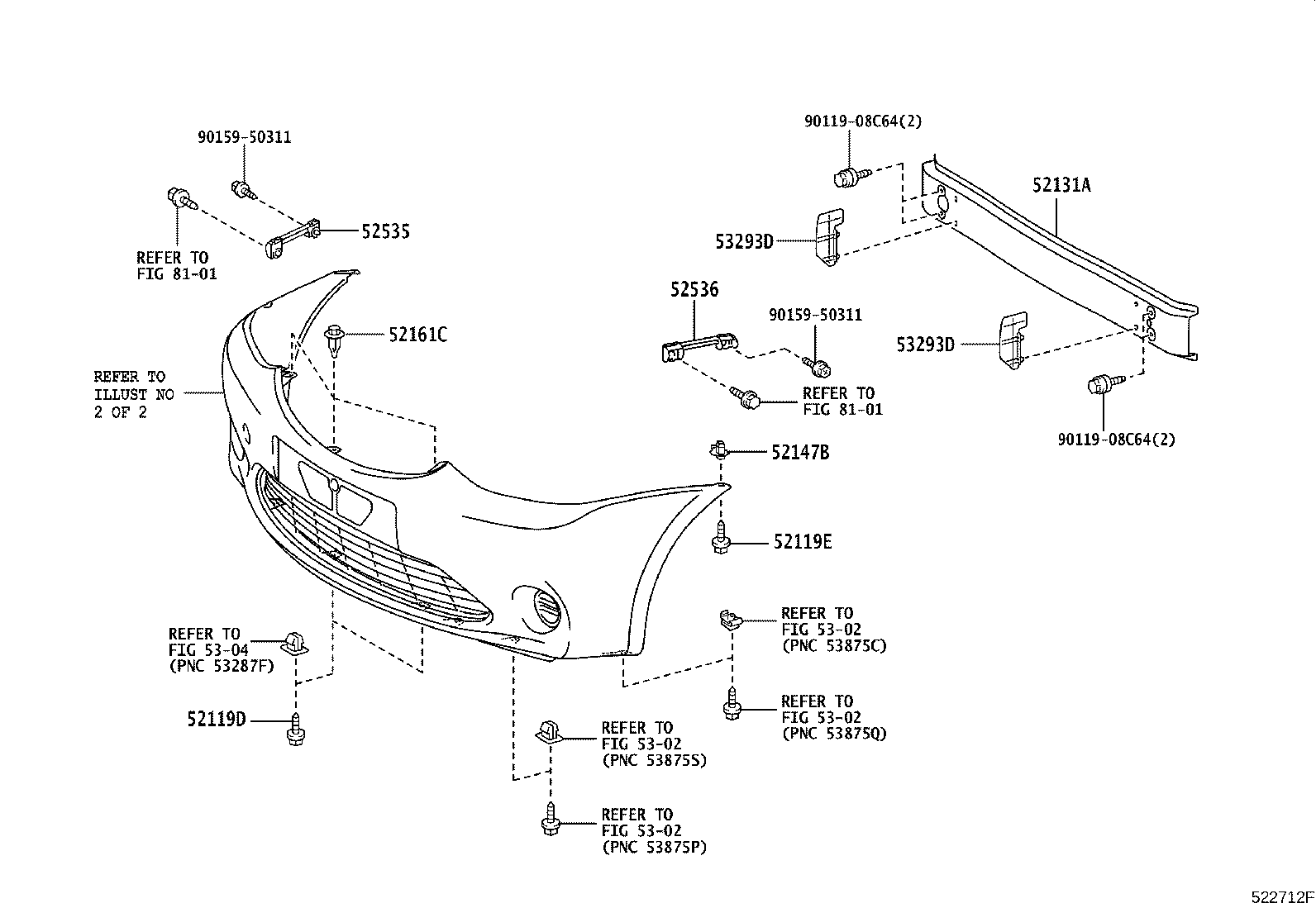

ILLUST NO. 1 OF 2(1209- )STD,X,XLS,XS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119E - SCREW, NO.2 | ||||
| 90159-60498 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-0D130 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-0D090 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
3 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D080 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D080 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 53293D - DEFLECTOR, RADIATOR UPPER AIR | ||||
| 53293-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
2 | ||
| 53293-0D030 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
2 | ||
| 53293-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
2 | ||
| 53293-0D030 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
2 | ||
| 53293-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
2 | ||
| 53293-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
2 | ||
| 53293-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
2 | ||
| 53293D - DEFLECTOR, RADIATOR UPPER AIR | ||||
| 53293-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
2 | ||
| 53293-0D030 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
2 | ||
| 53293-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
2 | ||
| 53293-0D030 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
2 | ||
| 53293-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
2 | ||
| 53293-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
2 | ||
| 53293-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5304 | ||||
| 8101 | ||||
ILLUST NO. 1 OF 2(1608- )X,XLS,XS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119E - SCREW, NO.2 | ||||
| 90159-60498 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-0D130 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-0D090 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
3 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D080 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D080 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 53293D - DEFLECTOR, RADIATOR UPPER AIR | ||||
| 53293-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
2 | ||
| 53293-0D030 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
2 | ||
| 53293-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
2 | ||
| 53293-0D030 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
2 | ||
| 53293-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
2 | ||
| 53293-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
2 | ||
| 53293-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
2 | ||
| 53293D - DEFLECTOR, RADIATOR UPPER AIR | ||||
| 53293-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
2 | ||
| 53293-0D030 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
2 | ||
| 53293-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
2 | ||
| 53293-0D030 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
2 | ||
| 53293-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
2 | ||
| 53293-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
2 | ||
| 53293-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 5304 | ||||

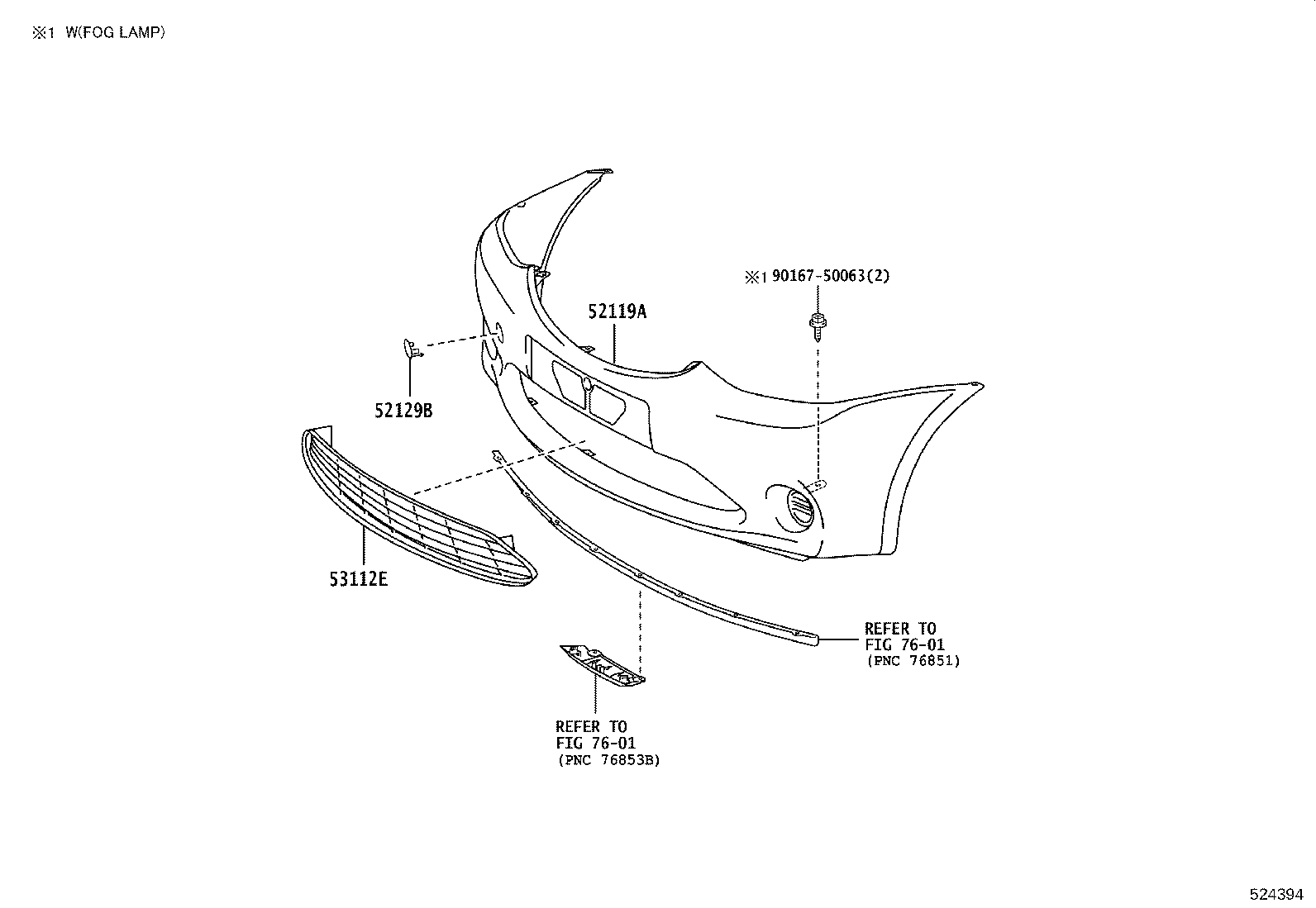

ILLUST NO. 2 OF 2(1209- )STD,X,XLS,XS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0U906 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 52119-YP901 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52119-YP901 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52119-YP901 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52127-0D919 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52129-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52127-0D919 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 52127-0D919 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52127-0D919 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52129-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52129-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0D200 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53112-0D200 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53112-0D200 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53112-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53112-0D200 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 53112-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53112-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 7601 | ||||

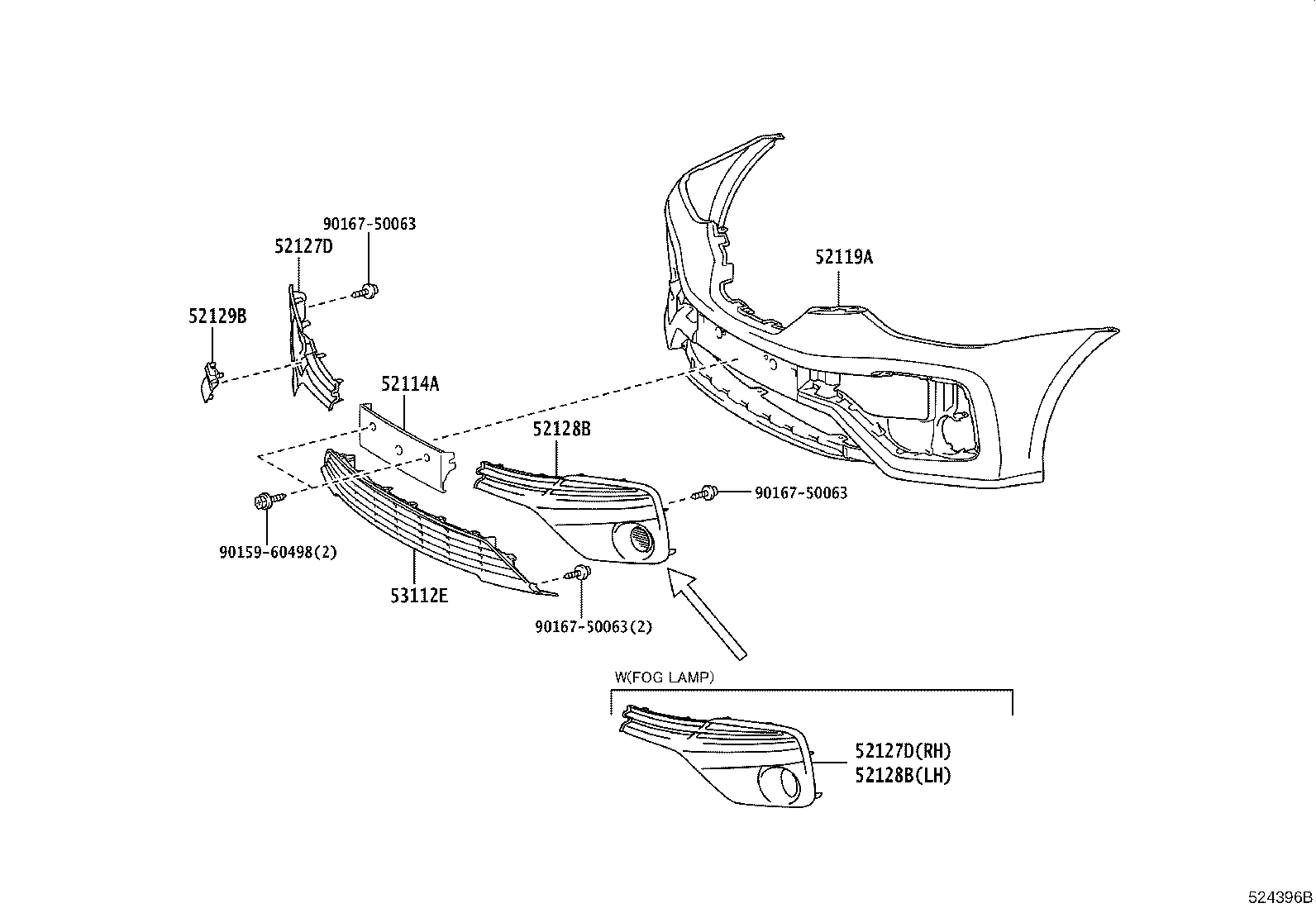

ILLUST NO. 2 OF 2(1607- )X,XLS,XS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52114-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52114-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0U906 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 52119-YP901 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52119-YP901 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52119-YP901 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-YP010 |
NGK11..4FC;NGK12,15..(X,XS)..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52127-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52127-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52127-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52127-YP010 |
NGK11..4FC;NGK12,15..(X,XS)..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-YP010 |
NGK11..4FC;NGK12,15..(X,XS)..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52127-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52127-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52127-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52127-YP010 |
NGK11..4FC;NGK12,15..(X,XS)..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-YP010 |
NGK11..4FC;NGK12,15..(X,XS)..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52128-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52128-YP010 |
NGK11..4FC;NGK12,15..(X,XS)..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52128-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52128-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-YP010 |
NGK11..4FC;NGK12,15..(X,XS)..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52128-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52128-YP010 |
NGK11..4FC;NGK12,15..(X,XS)..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52128-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52128-YP020 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52127-0D919 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52129-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 52127-0D919 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 52127-0D919 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52127-0D919 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 52129-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 52129-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0D200 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53112-0D200 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| 53112-0D200 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53112-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 BLACK) |
1 | ||
| 53112-0D200 |
NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS) |
1 | ||
| 53112-YP010 |
NGK12..XLS;NGK15..XLS..AGT W(PACKAGE OPTION : SS4 PLATING) |
1 | ||
| 53112-YP010 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT W(PACKAGE OPTION : SS4 COLORED) |
1 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90167-50063 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
