NGK15L-AEPGKH (2016)
Toyota Etios
(1604- )

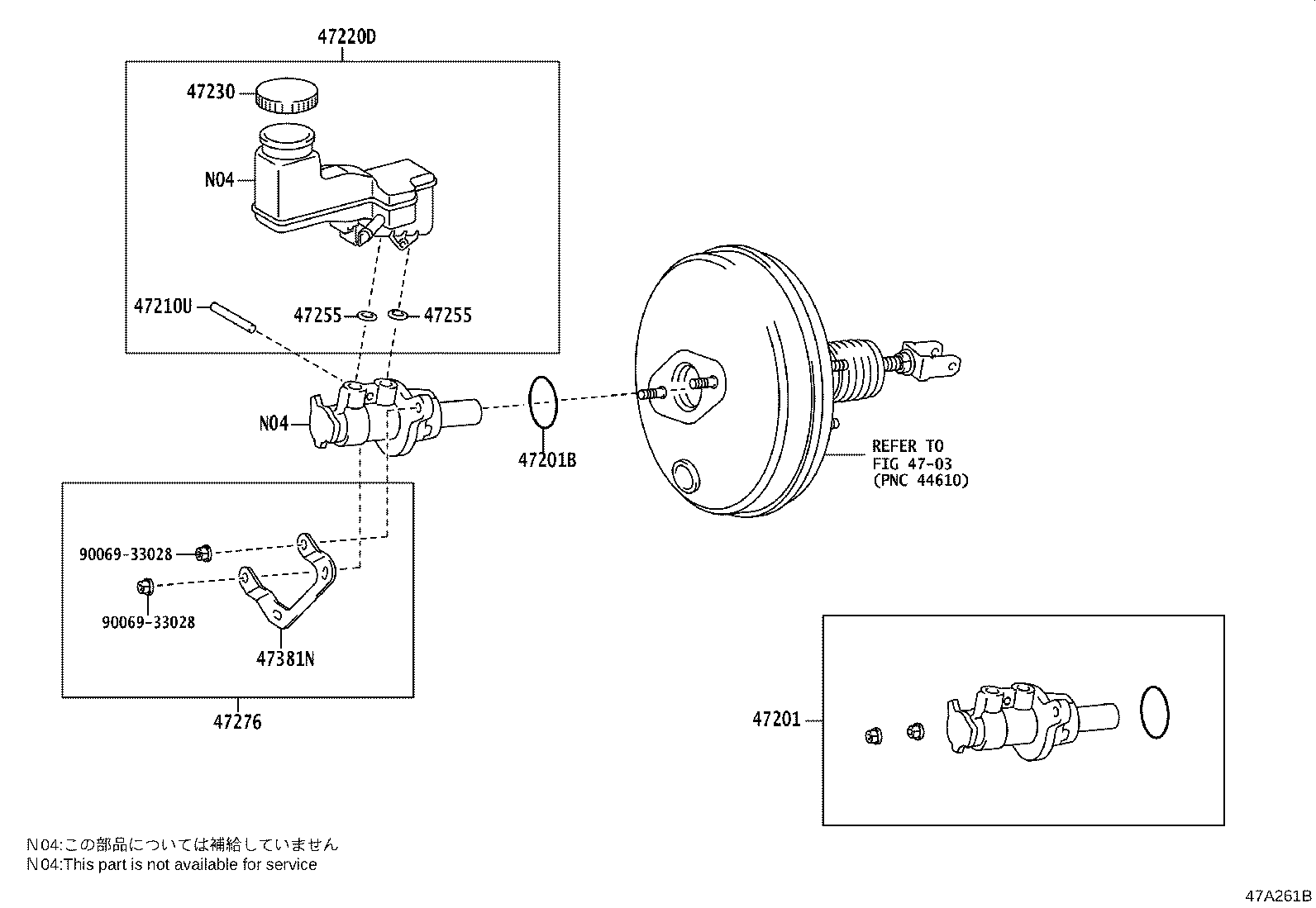

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-09890 |
NGK12..XLS;NGK15..XLS..AGT |
1 | ||
| 47201-09840 |
NGK11..4FC;NGK12..CROSS,X;NGK12..XS..AGT;NGK15..(X,XS)..AGT |
1 | ||
| 47201-09890 |
NGK11..4FC;NGK12,15..(X,XS)..AGT VEHICLE STABILITY CONT-WITH |
1 | ||
| 47201-09840 |
NGK12,15..XLS..AGT;NGK12,15..(XLS,XS)..BZ |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH001 |
NGK12..XLS;NGK15..XLS..AGT |
1 | ||
| 90015-AH001 |
NGK11..4FC;NGK12,15..(X,XS)..AGT VEHICLE STABILITY CONT-WITH |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AE401 |
NGK11..4FC;NGK12,15..(X,XS)..AGT VEHICLE STABILITY CONT-WITH |
1 | ||
| 90015-AE401 |
NGK12..XLS;NGK15..XLS..AGT |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-09230 |
NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0D160 |
NGK11..4FC;NGK12,15..(X,XS)..AGT VEHICLE STABILITY CONT-WITH |
1 | ||
| 47230-0D160 |
NGK12..XLS;NGK15..XLS..AGT |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09050 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09050 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47758-09010 |
NGK1# |
1 | ||
| 47381N - BRACKET, TUBE CLAMP | ||||
| 47758-0D020 |
NGK1# |
1 | ||
| 47758-0D030 |
NGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT |
1 | ||
| Common parts | ||||
| 90069-33028 | ||||
| Linked diagrams | ||||
| 4703 | ||||
