NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )

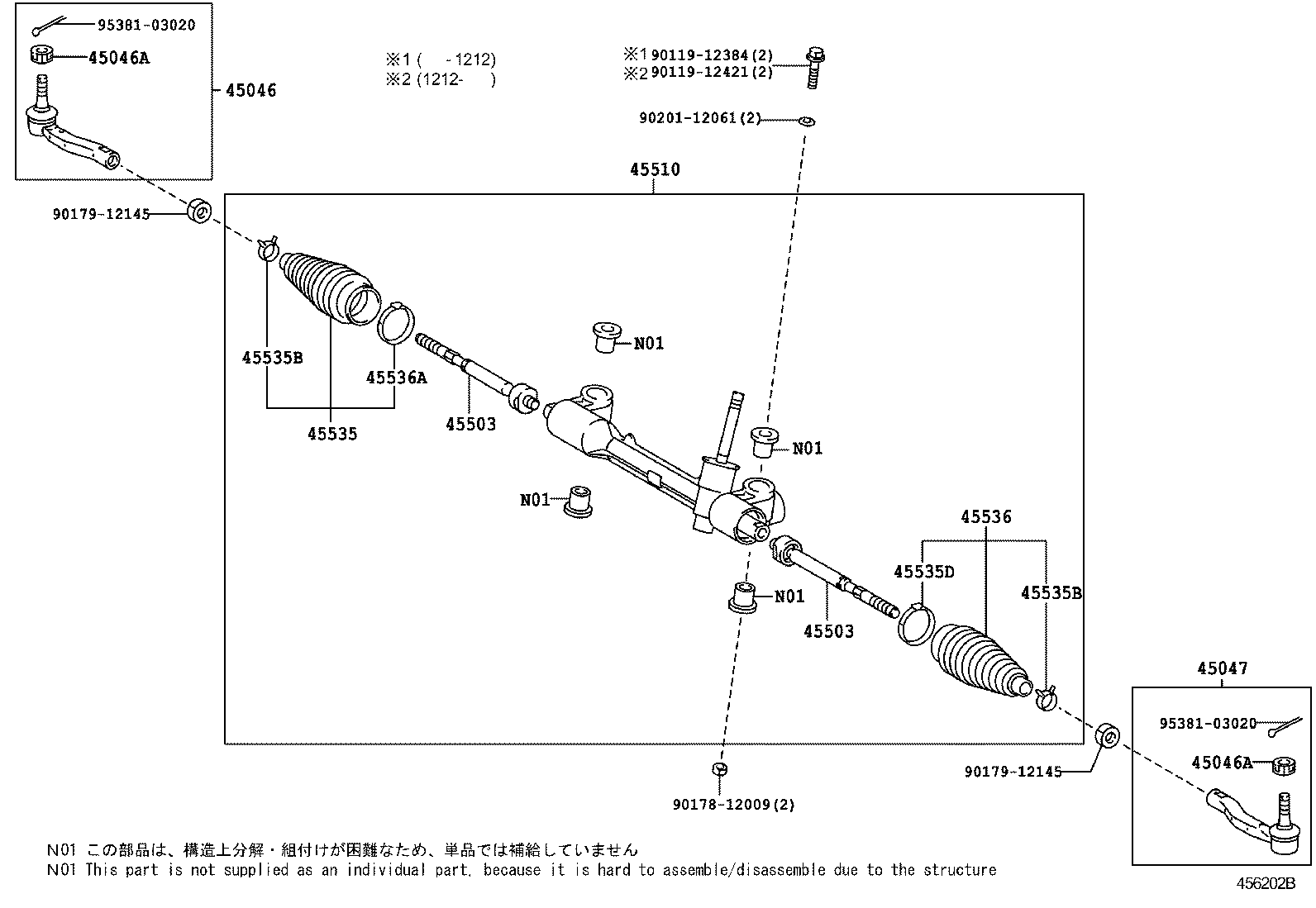

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45503 45503 45510 45535 45535B 45535B 45535D 45536 45536A 9011912384 9011912421 9017812009 9017912145 9017912145 9020112061 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09710

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09360

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
45503 - END SUB-ASSY, STEERING RACK
45503-0D110

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
45503 - END SUB-ASSY, STEERING RACK
45503-0D110

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
45510 - GEAR ASSY, STEERING
45510-0D360

NGK12,15..5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0D060

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0D060

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
Common parts
90119-12384
90119-12421
90178-12009
90179-12145
90201-12061
95381-03020
