NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )

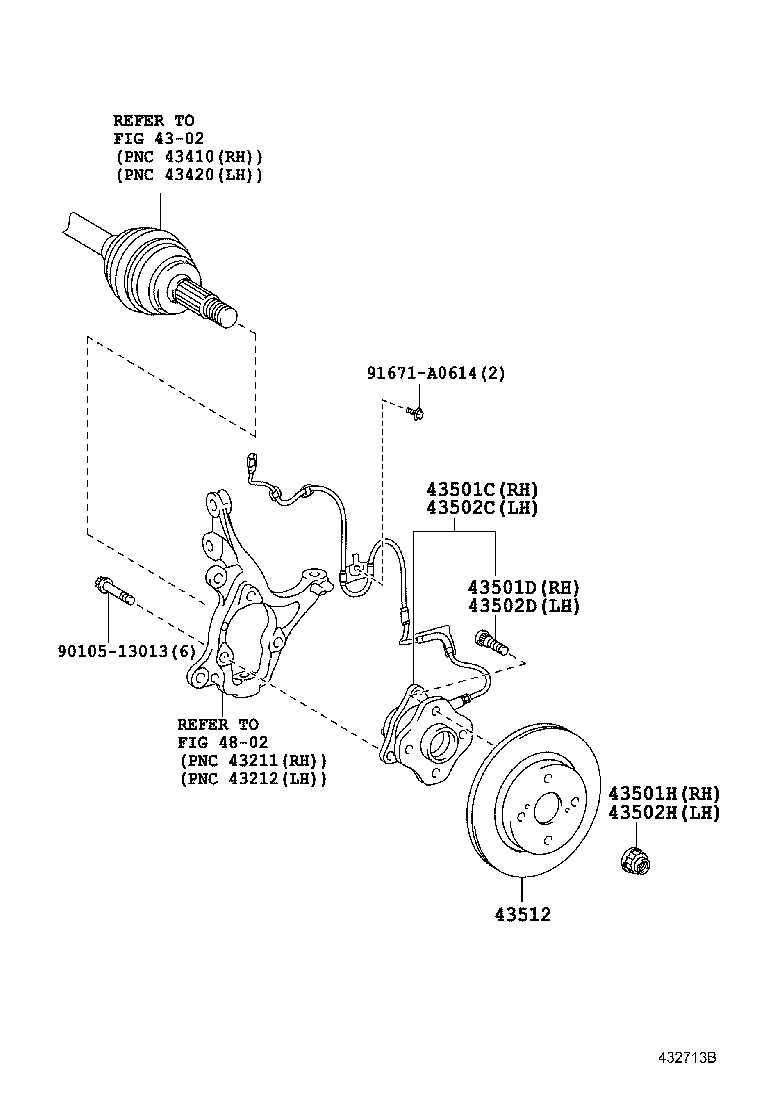

Click highlighted areas on diagram

diagram 4302 43501C 43501D 43501H 43502C 43502D 43502H 43512 4802 9010513013 91671A0614
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-0D030

NGK12,15..5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 4
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43560-0D030

NGK12,15..5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 4
43512 - DISC, FRONT
43512-0D170

NGK15..X..AGT

DESTINATION PACKAGE(ALL)-PERU, COSTA RICA SPEC

 2
43512-0D170

NGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..XLS..AGT

 2
Common parts
90105-13013
91671-A0614
Linked diagrams
4302
4802
