NGK15L-AEPGKH (2016)
Toyota Etios

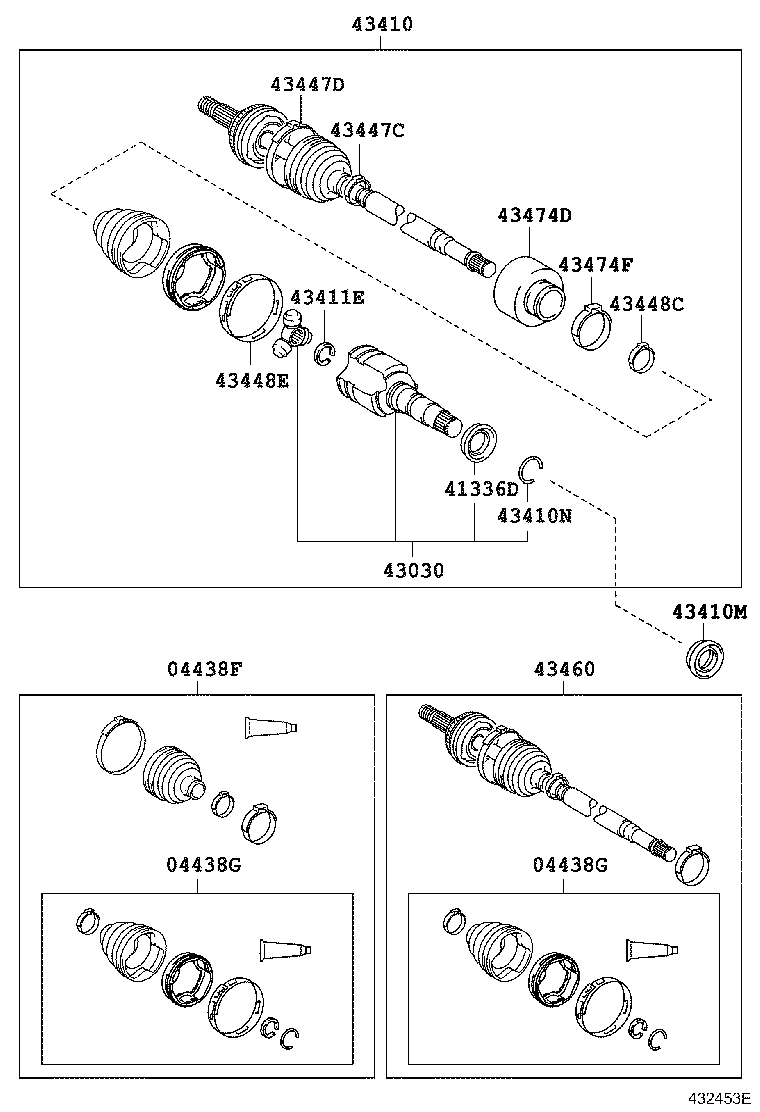

ILLUST NO. 1 OF 2(1209- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-0D330 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-0D230 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-0D230 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-0D140 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 41336-0D100 |
NGK1#..4FC,5F |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-0D120 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0D270 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43410-0D780 |
NGK15..X..AGT DESTINATION PACKAGE(ALL)-PERU, COSTA RICA SPEC |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34055 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
1 | ||
| 90311-C0027 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 43425-02350 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-0D270 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0D710 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0D620 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0D610 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0D590 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09V70 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43460-09Z60 |
NGK15..X..AGT DESTINATION PACKAGE(ALL)-PERU, COSTA RICA SPEC |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0D250 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-0D600 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||

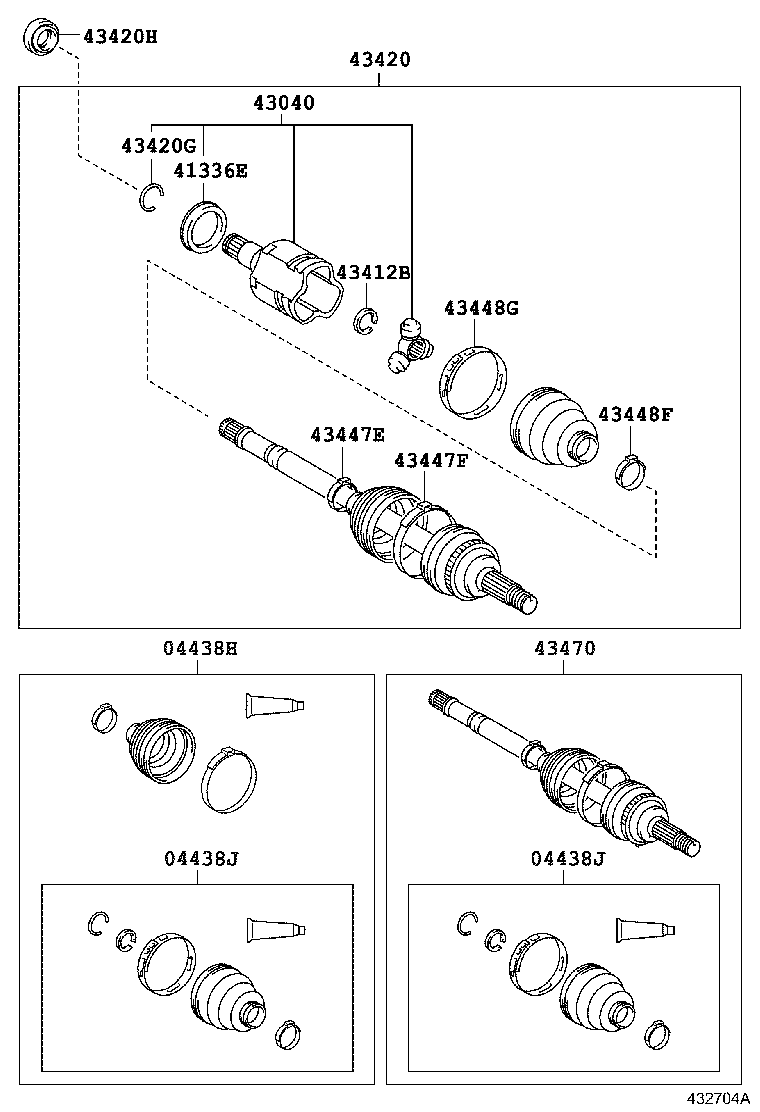

ILLUST NO. 2 OF 2(1209- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-0D310 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-0D230 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-0D230 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-0D100 |
NGK1#..4FC,5F |
1 | ||
| 41336-0D140 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-0D120 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-0D270 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0D291 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 43420-0D400 |
NGK15..X..AGT DESTINATION PACKAGE(ALL)-PERU, COSTA RICA SPEC |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-02350 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-C0028 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 90311-34056 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-0D710 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-0D620 |
NGK12,15..5F;NGK11..4FC,5F;NGK15..4FC..AGT;NGK12..4FC..(CROSS,XLS) |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0D610 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0D590 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-8Z294 |
NGK15..X..AGT DESTINATION PACKAGE(ALL)-PERU, COSTA RICA SPEC |
1 | ||
| 43470-8Z269 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
