NGK15L-AEPGKH (2016)
Toyota Etios

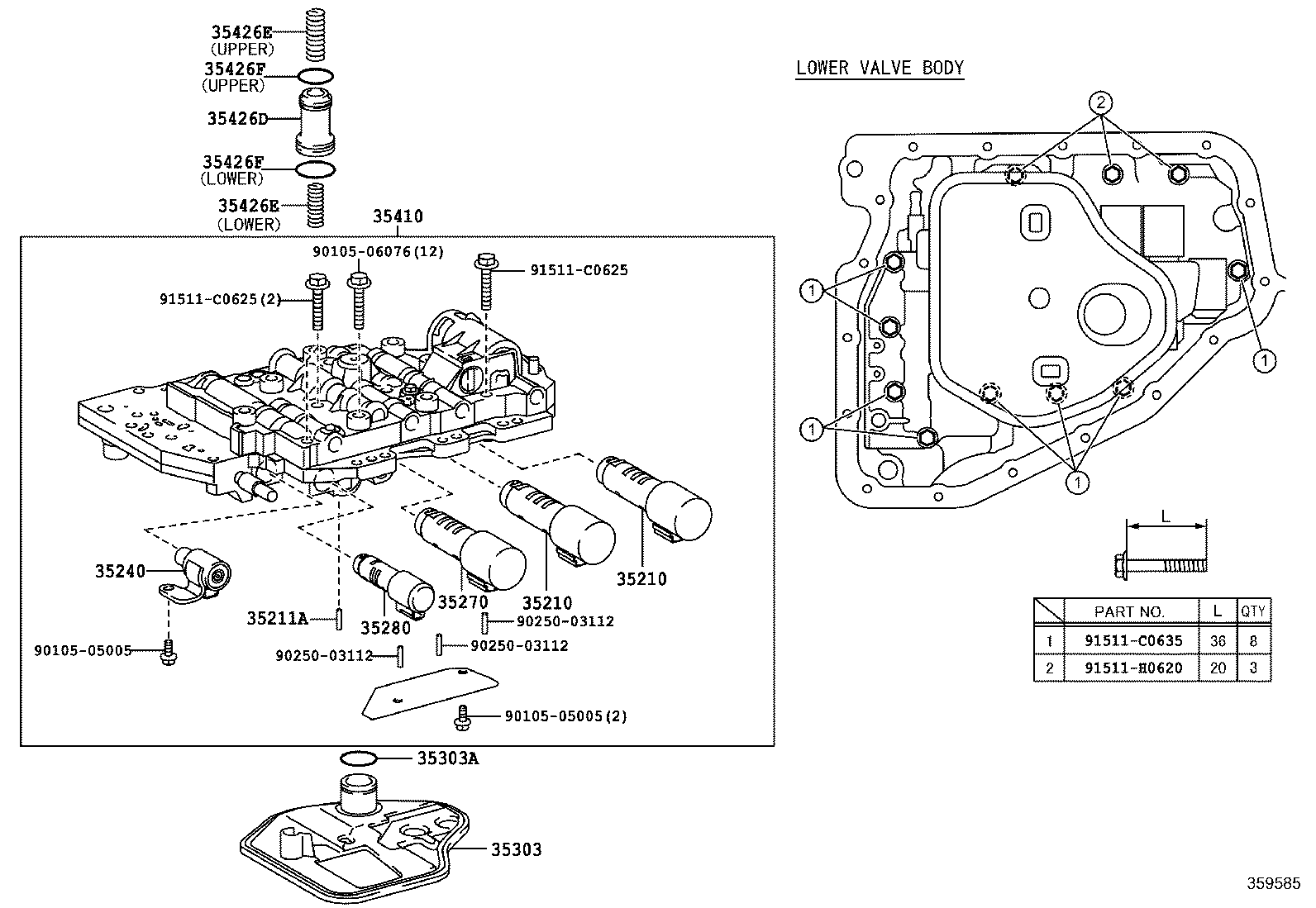

ILLUST NO. 1 OF 2(1604- )4FC
U442E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-52040 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
2 | ||
| 35210-0D011 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
2 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-52040 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
2 | ||
| 35210-0D011 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
2 | ||
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-03112 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-0D011 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35240-52080 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-0D011 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35270-52030 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-50030 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-52020 |
NGK1#..4FC |
1 | ||
| 35303-52030 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35303A - RING, O (FOR OIL STRAINER) | ||||
| 90301-C0047 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 90301-22014 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-52310 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
1 | ||
| 35410-0D011 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-52010 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-14210 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) LOWER |
1 | ||
| 90501-21050 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) UPPER |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-14210 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) LOWER |
1 | ||
| 90501-21050 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) UPPER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-21011 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) UPPER |
1 | ||
| 90301-24013 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) LOWER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-21011 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) UPPER |
1 | ||
| 90301-24013 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) LOWER |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06076 | ||||
| 90250-03112 | ||||
| 91511-C0625 | ||||
| 91511-C0635 | ||||
| 91511-H0620 | ||||

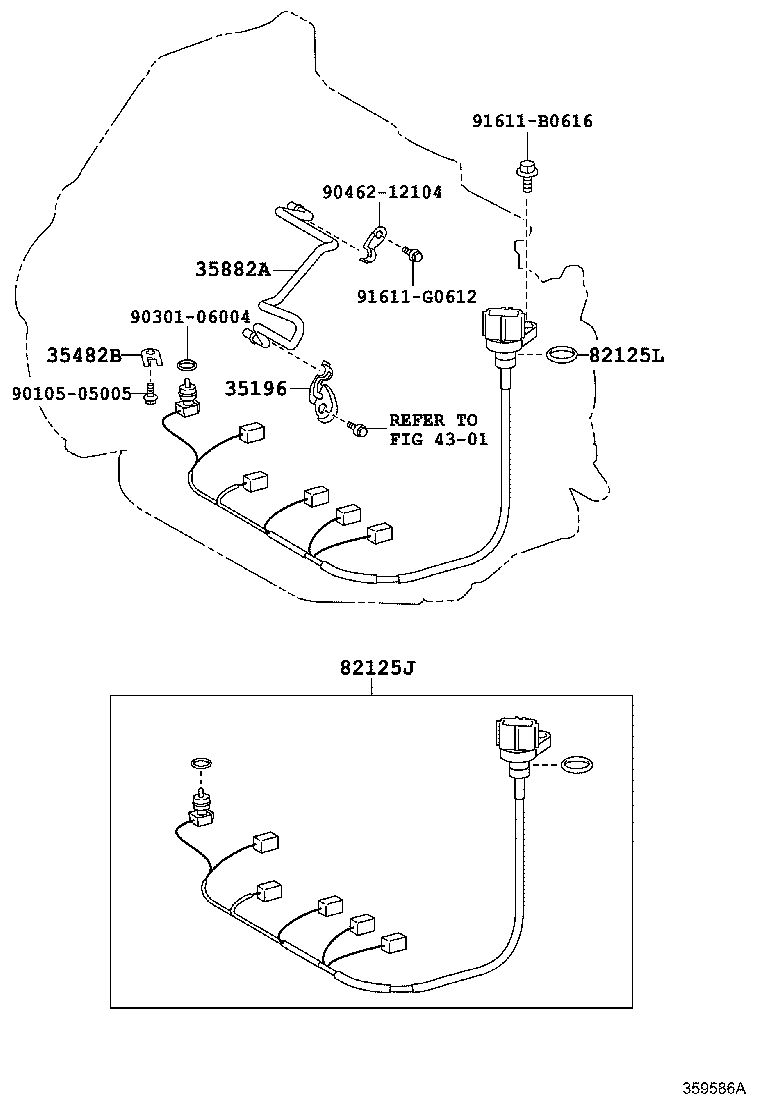

ILLUST NO. 2 OF 2(1604- )4FC
U442E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-52010 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-21020 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-0D010 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-52180 |
NGK15..4FC..AGT;NGK11,12..4FC..(X,XLS) |
1 | ||
| 82125-0D021 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
NGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS) |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90301-06004 | ||||
| 90462-12104 | ||||
| 91611-B0616 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 4301 | ||||
