NGK15L-AEPGKH (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )2NR#..NGK15

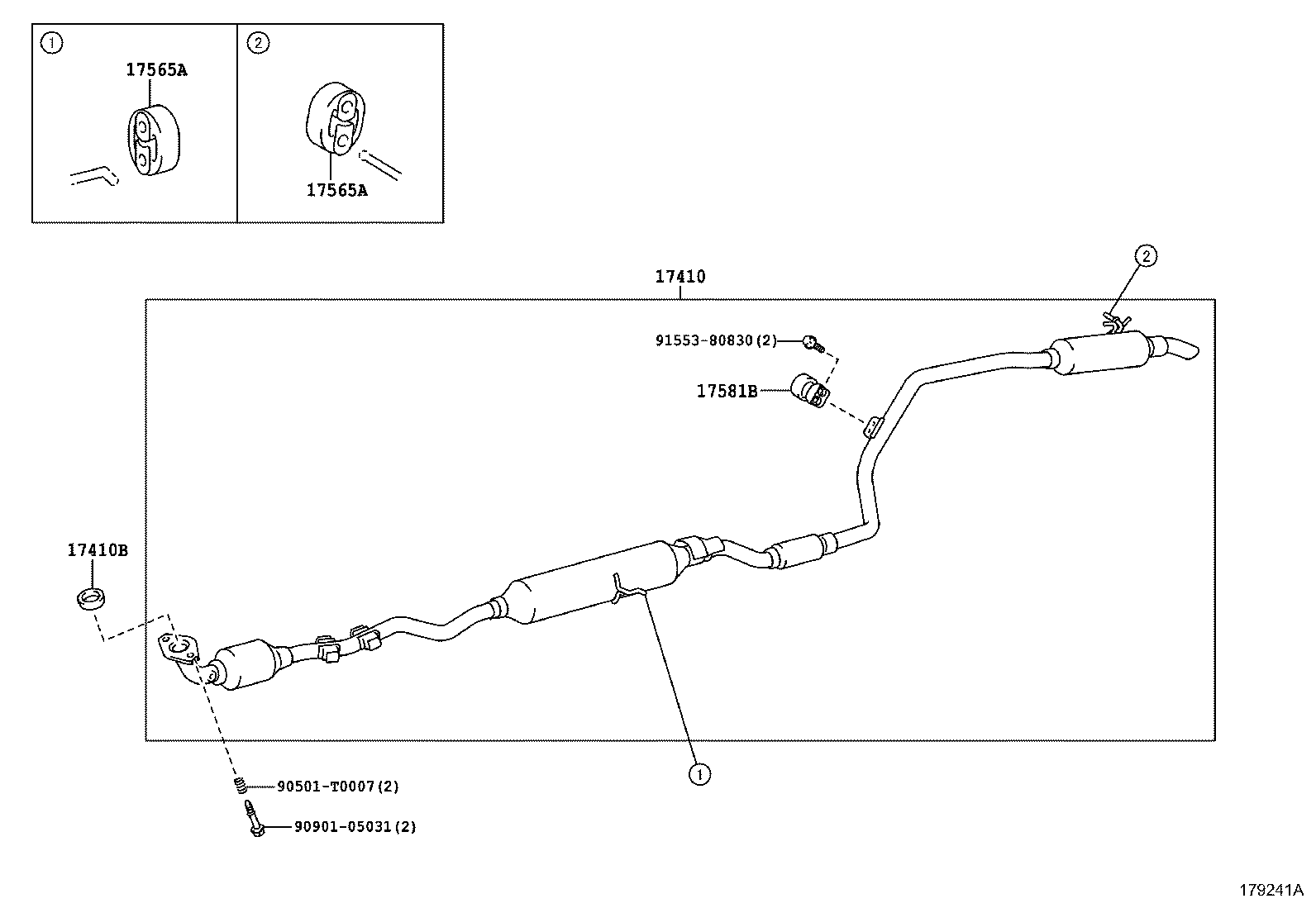

Click highlighted areas on diagram

diagram 17410 17410B 17565A 17565A 17581B 90501T0007 9090105031 9155380830
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0Y410

2NRFE..NGK15

 1
17410-0Y870

2NRFE..NGK15

 1
17410B - GASKET, EXHAUST PIPE
17451-0M020

2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS)

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y020

2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS)

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y020

2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS)

 2
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-50090

2NRFE..NGK12;2NRFBE..NGK12..5F;2NRFE..NGK15..4FC,6F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS)

 1
Common parts
90501-T0007
90901-05031
91553-80830
