NGK15L-AEPGGG (2016)

Toyota Etios

Production Apr 2016 - Sep 9999
Engine 2NRFBE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

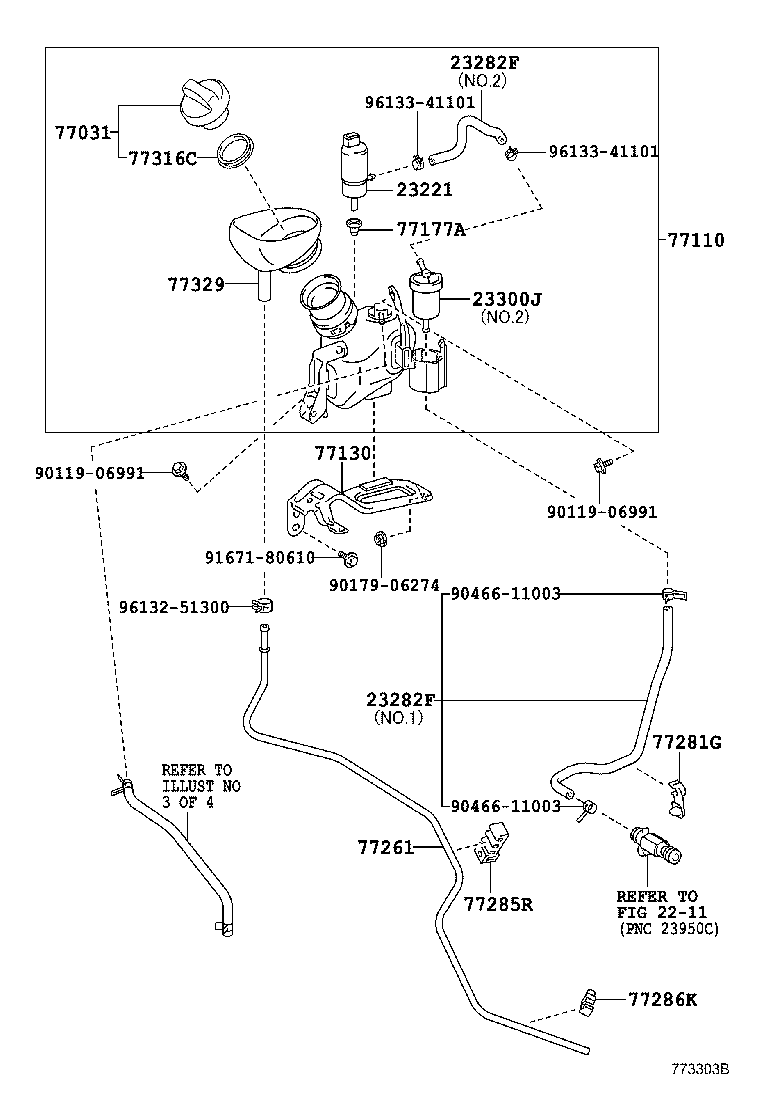

ILLUST NO. 2 OF 4(1209- )BZ

Click highlighted areas on diagram

SUB TANK

diagram 2211 23221 23282F 23282F 23300J 77031 77110 77130 77177A 77261 77281G 77285R 77286K 77316C 77329 9011906991 9011906991 9017906274 9046611003 9046611003 9167180610 9613251300 9613341101 9613341101
Part # Description Qty Price
23300J - FILTER ASSY, FUEL
23300-0D100

1NRFBE..NGK11..6F;2NRFBE..NGK15..4FC,6F;2NRFBE..NGK12..(4FC,6F)..XS

NO.1

 1
Common parts
90119-06991
90179-06274
90466-11003
91671-80610
96132-51300
96133-41101
Linked diagrams
2211

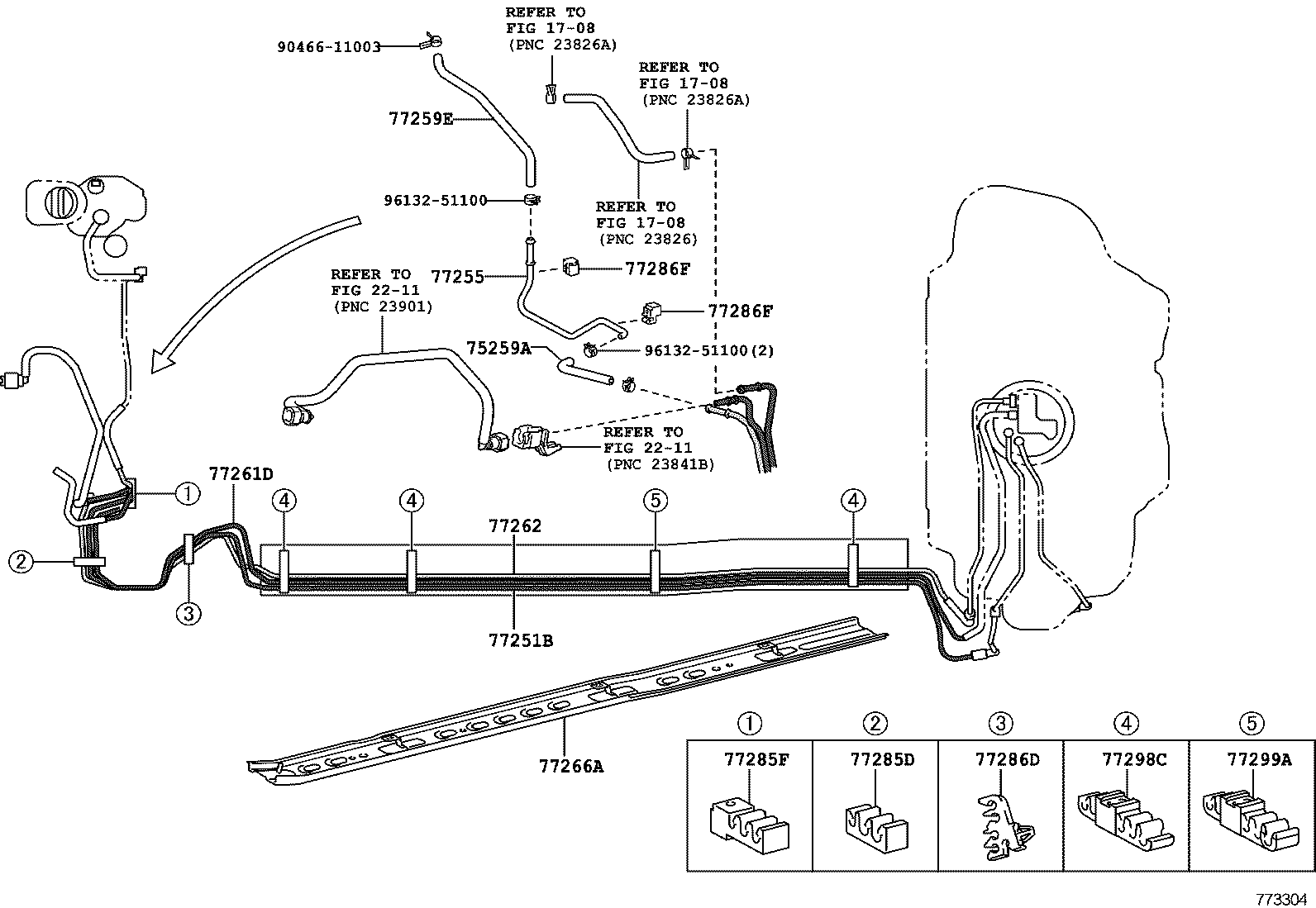

ILLUST NO. 3 OF 4(1209- )BZ

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 1708 2211 2211 75259A 77251B 77255 77259E 77261D 77262 77266A 77285D 77285F 77286D 77286F 77286F 77298C 77299A 9046611003 9613251100 9613251100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-0D470

NGK15..BZ

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-0D410

NGK15..BZ

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-0D090

NGK15..(4FC,6F)..BZ

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-0D100

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-0D110

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-0D060

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
Common parts
90466-11003
96132-51100
Linked diagrams
1708
2211

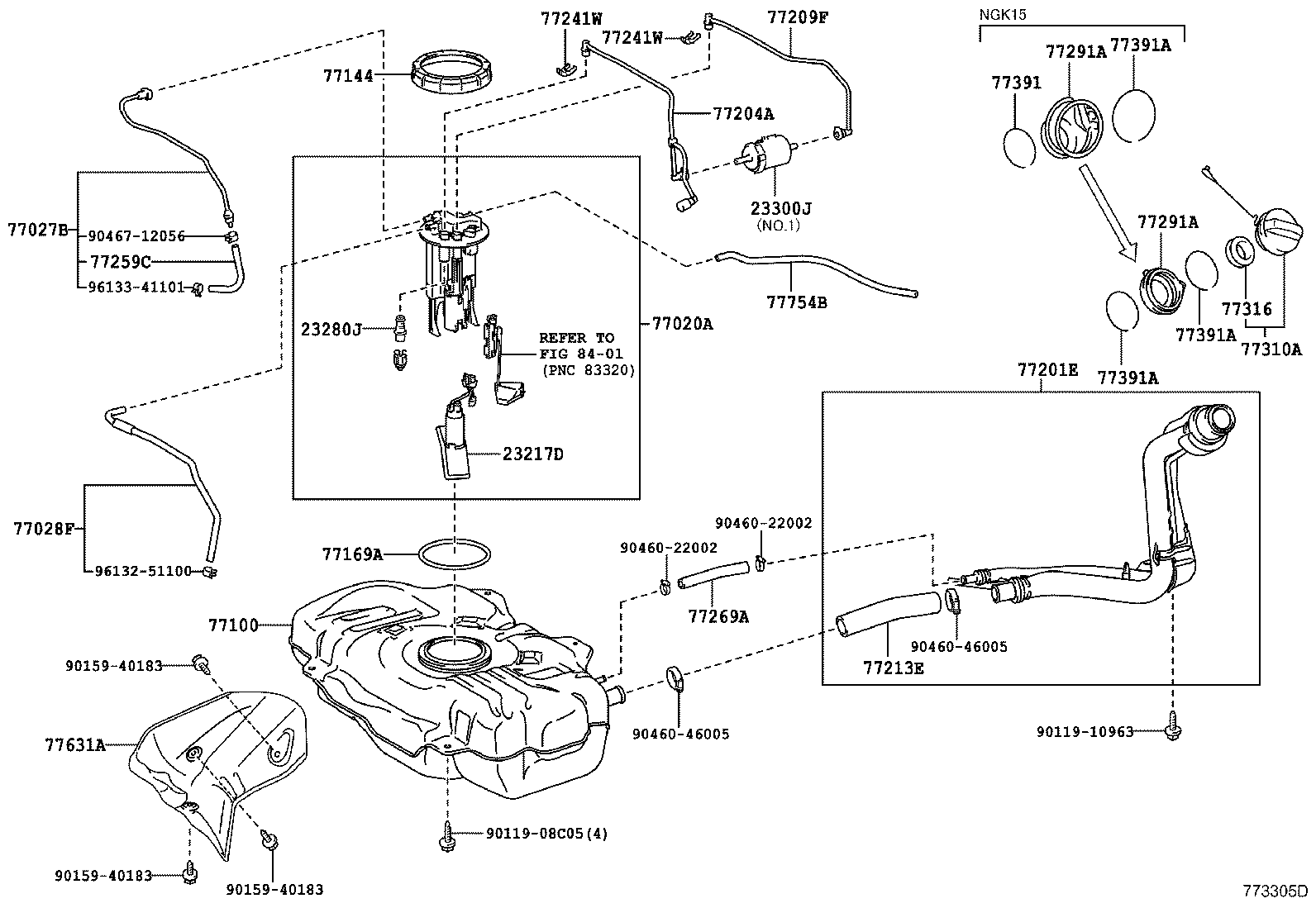

ILLUST NO. 1 OF 4(1209- )BZ

Click highlighted areas on diagram

FUEL TANK

diagram 23217D 23280J 23300J 77020A 77027B 77028F 77100 77144 77169A 77201E 77204A 77209F 77213E 77241W 77241W 77259C 77269A 77291A 77291A 77310A 77316 77391 77391A 77391A 77391A 77631A 77754B 8401 9011908C05 9011910963 9015940183 9015940183 9015940183 9046022002 9046022002 9046046005 9046046005 9046712056 9613251100 9613341101
Part # Description Qty Price
23217D - FILTER, FUEL PUMP
23217-47010

1NRFBE..NGK11..6F;2NRFBE..NGK15..4FC,6F;2NRFBE..NGK12..(4FC,6F)..XS

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-47010

1NRFBE..NGK11..6F;2NRFBE..NGK15..4FC,6F;2NRFBE..NGK12..(4FC,6F)..XS

 1
23300J - FILTER ASSY, FUEL
23300-0D100

1NRFBE..NGK11..6F;2NRFBE..NGK15..4FC,6F;2NRFBE..NGK12..(4FC,6F)..XS

NO.1

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-0D270

NGK11..6F;NGK15..BZ;NGK12..XS..BZ

 1
77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2
77028-52070

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77100 - TANK ASSY, FUEL
77001-0D150

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0D050

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0D060

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77210-0D170

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77204A - TUBE, FUEL TANK RETURN
77204-0D060

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0D090

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-52220

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77241W - CLIP, TUBE JOINT
77241-33011

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 2
77241W - CLIP, TUBE JOINT
77241-33011

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 2
77269A - HOSE, FUEL TANK BREATHER
77269-52110

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0D110

NGK15..(4FC,6F)..BZ

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-0D110

NGK15..(4FC,6F)..BZ

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77391 - RING, FUEL INLET BOX
77391-02020

NGK15..(4FC,6F)..BZ

 1
77391A - RING, FUEL INLET BOX
77391-42010

NGK15..(4FC,6F)..BZ

 1
77391A - RING, FUEL INLET BOX
77391-42010

NGK15..(4FC,6F)..BZ

 1
77391A - RING, FUEL INLET BOX
77391-42010

NGK15..(4FC,6F)..BZ

 1
77631A - PROTECTOR, FUEL TANK, LOWER CENTER
77631-0D060

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-52070

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
Common parts
90119-08C05
90119-10963
90159-40183
90460-22002
90460-46005
90467-12056
96132-51100
96133-41101
Linked diagrams
8401

ILLUST NO. 4 OF 4(1209- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 5361474010 5361474010 6461852010 77035 77035 77037 77306 77306 77306 77350 77350 77366 77366 77377 9017910186 9026906017 9026906017 9094901966 9094901966 9094901966 91631B0610 91631B0610
Part # Description Qty Price
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0D270

NGK15..(4FC,6F)..BZ

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0D270

NGK15..(4FC,6F)..BZ

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-0D060

NGK15..(4FC,6F)..BZ

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-0D060

NGK15..(4FC,6F)..BZ

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-0D060

NGK15..(4FC,6F)..BZ

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0D070

NGK15..(4FC,6F)..BZ

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0D070

NGK15..(4FC,6F)..BZ

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-0D070

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-0D070

NGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0D050

NGK15..(4FC,6F)..BZ

 1
Common parts
53614-74010
64618-52010
90179-10186
90269-06017
90949-01966
91631-B0610
