Toyota Etios NGK15 HEATING & AIR CONDITIONING - COMPRESSOR

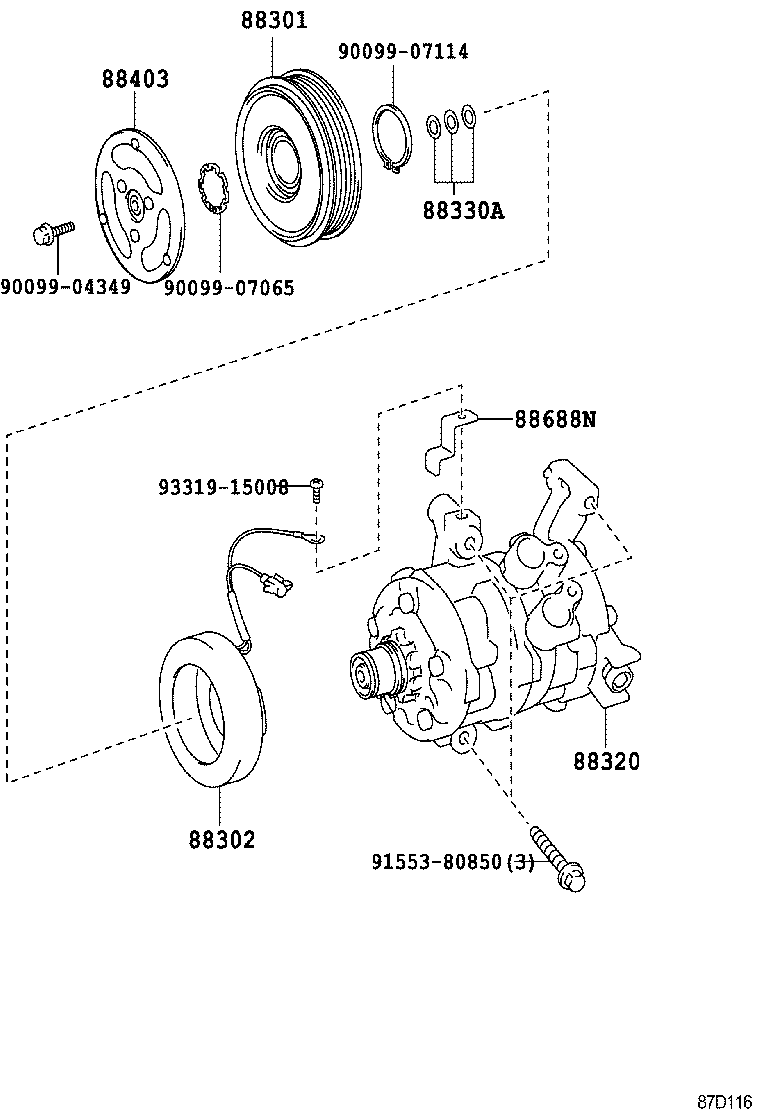

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-0D150	NGK11,15..X FRONT AIR CONDITIONER-MANUAL	09/2012 - 09/2013	1
88412-0D150	NGK15..X W(*ERCDM)	09/2013 - 04/2016	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-0D120	NGK11,15..X FRONT AIR CONDITIONER-MANUAL	09/2012 - 09/2013	1
88411-0D120	NGK15..X W(*ERCDM)	09/2013 - 04/2016	1
88320 - COMPRESSOR ASSY, COOLER
88320-0D050	NGK15..X W(*ERCDM)	09/2013 - 04/2016	1
88320-0D050	NGK11,15..X FRONT AIR CONDITIONER-MANUAL	09/2012 - 09/2013	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	NGK15..X W(*ERCDM)	09/2013 - 04/2016	1
88335-14020	NGK11,15..X FRONT AIR CONDITIONER-MANUAL	09/2012 - 09/2013	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-0D080	NGK11,15..X FRONT AIR CONDITIONER-MANUAL	09/2012 - 09/2013	1
88403-0D080	NGK15..X W(*ERCDM)	09/2013 - 04/2016	1
88688N - BRACKET, COOLER
88688-0D380	NGK11,15..X FRONT AIR CONDITIONER-MANUAL	09/2012 - 09/2013	1
88688-0D380	NGK15..X W(*ERCDM)	09/2013 - 04/2016	1
Common parts
90099-04349
90099-07065
90099-07114
91553-80850
93319-15008

NGK15L-AEMRGG (2012)
