NGK15L-AEMRGG (2012)

Toyota Etios

Production Sep 2012 - Apr 2016
Engine 2NRFBE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

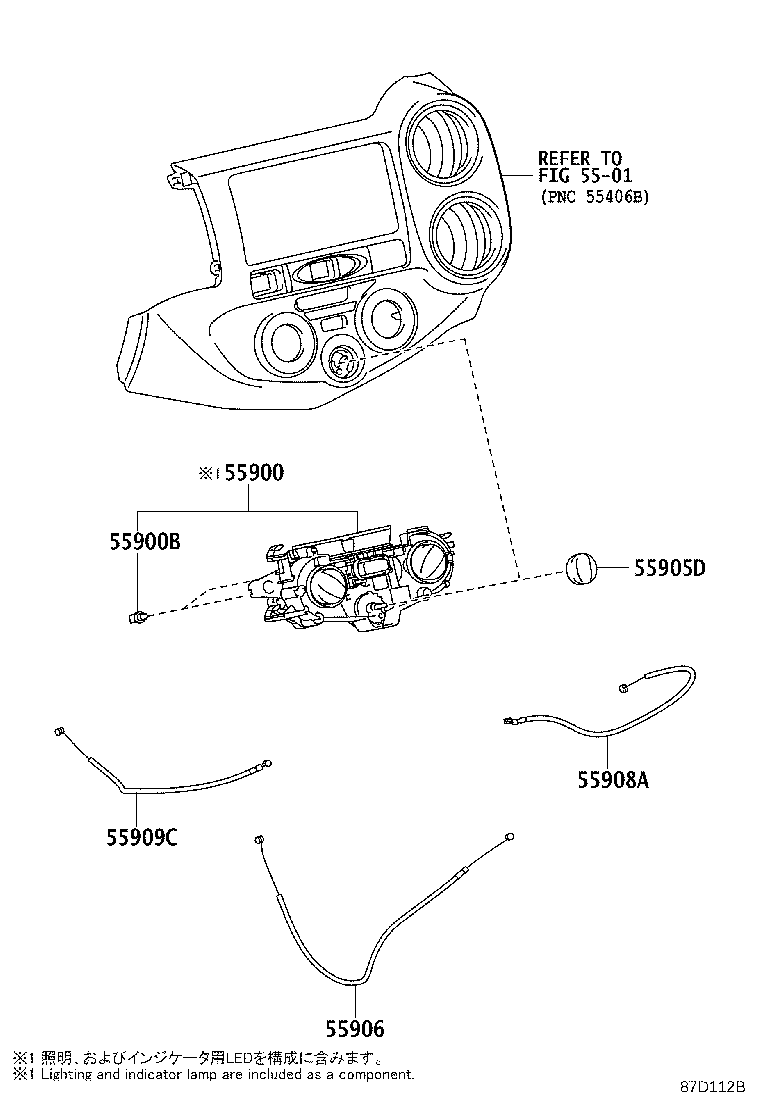

ILLUST NO. 1 OF 2(1209- )5F ; (1604- )

Click highlighted areas on diagram

CONTROL PANEL

diagram 5501 55900 55900B 55905D 55906 55908A 55909C
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0D290B0

NGK11,15..X

FRONT AIR CONDITIONER-MANUAL,GRAY,TRIM1#

 1
55900-0D300B0

NGK11,15..STD,X

GRAY,TRIM1#

 1
55900-0D830C0

NGK1#..X

BLACK,TRIM2#

 1
55900-0D270

NGK15..X

W(*ERCDM)

 1
55900B - BULB, AIR CONDITIONER CONTROL
81936-0D010

NGK15..X

12V 1.2W,W(*ERCDM)

 1
55905D - KNOB SUB-ASSY, CONTROL
55905-0D160

NGK15..X

W(*ERCDM)

 1
55905-0D100

NGK11,15..X,XS

 1
55905-0D171

NGK1#..X

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-0D090

NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..XLS..AGT;NGK12,15..5F..(CROSS,X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0D110

NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..XLS..AGT;NGK12,15..5F..(CROSS,X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0D080

NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12,15..5F..XLS..AGT;NGK12,15..5F..(CROSS,X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
Linked diagrams
5501

ILLUST NO. 2 OF 2(1209- )5F ; (1604- )

Click highlighted areas on diagram

AIR DUCT

diagram 55843A 55844 55845A 55950G 8714 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0D200

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-0D170

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0D100

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D130

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
Common parts
93568-55014
Linked diagrams
8714
