NGK15L-AEMRGG (2012)
Toyota Etios

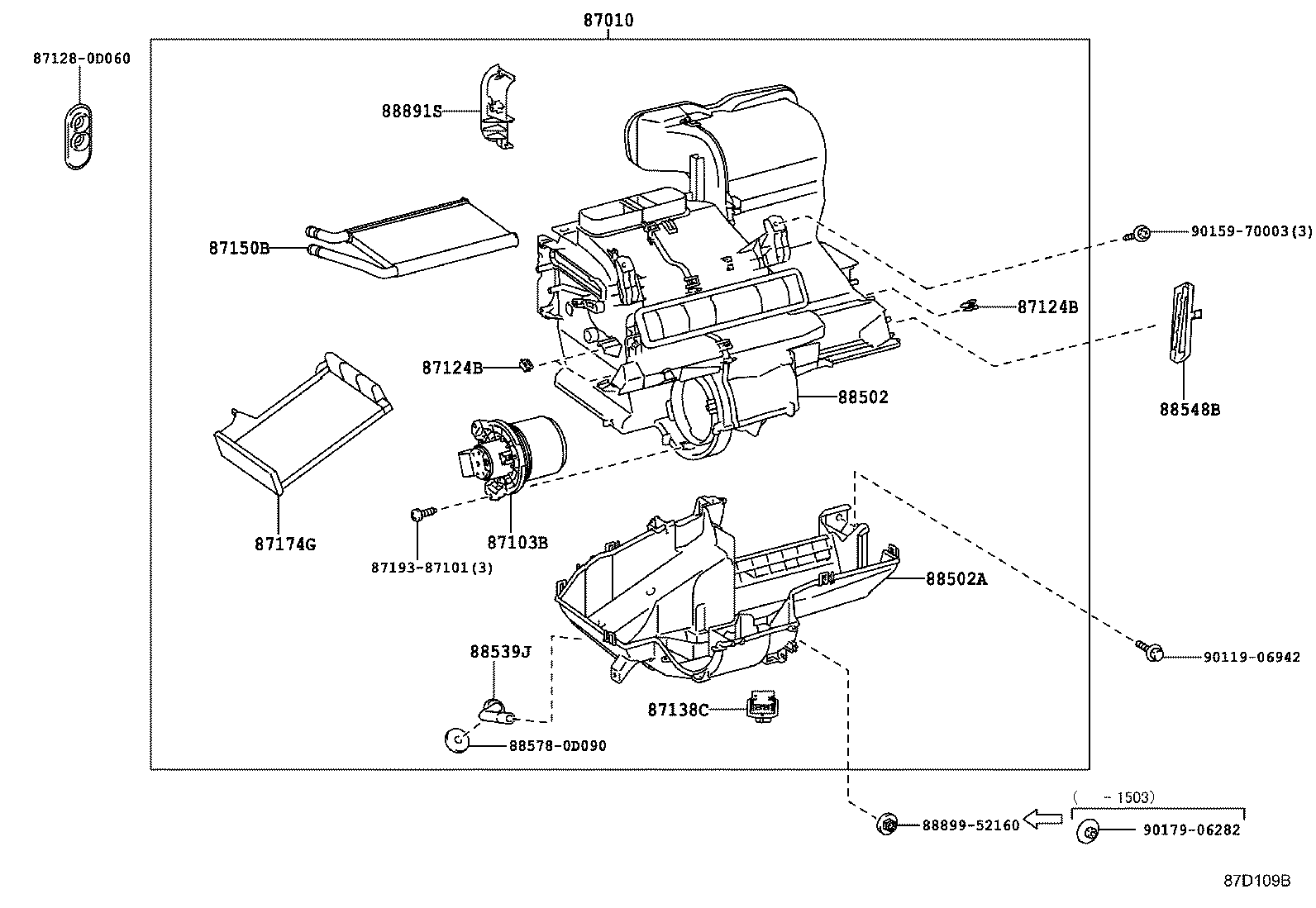

ILLUST NO. 1 OF 2(1209- )5F..STD,X
A/C LESS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0D580 |
NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 87010-0D560 |
NGK11,15..(STD,X)..BZ |
1 | ||
| 87010-0D580 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D210 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D110 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
3 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D110 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
3 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K110 |
NGK1# |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D100 |
NGK1#..BZ |
1 | ||
| 87174G - GUIDE, AIR HEATER | ||||
| 87174-0D030 |
NGK1#..STD,X |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-0D050 |
NGK1#..BZ |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-0D070 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D140 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D130 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 87237-0D020 |
NGK1# |
1 | ||
| Common parts | ||||
| 87128-0D060 | ||||
| 87193-87101 | ||||
| 88578-0D090 | ||||
| 88899-52160 | ||||
| 90119-06942 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||

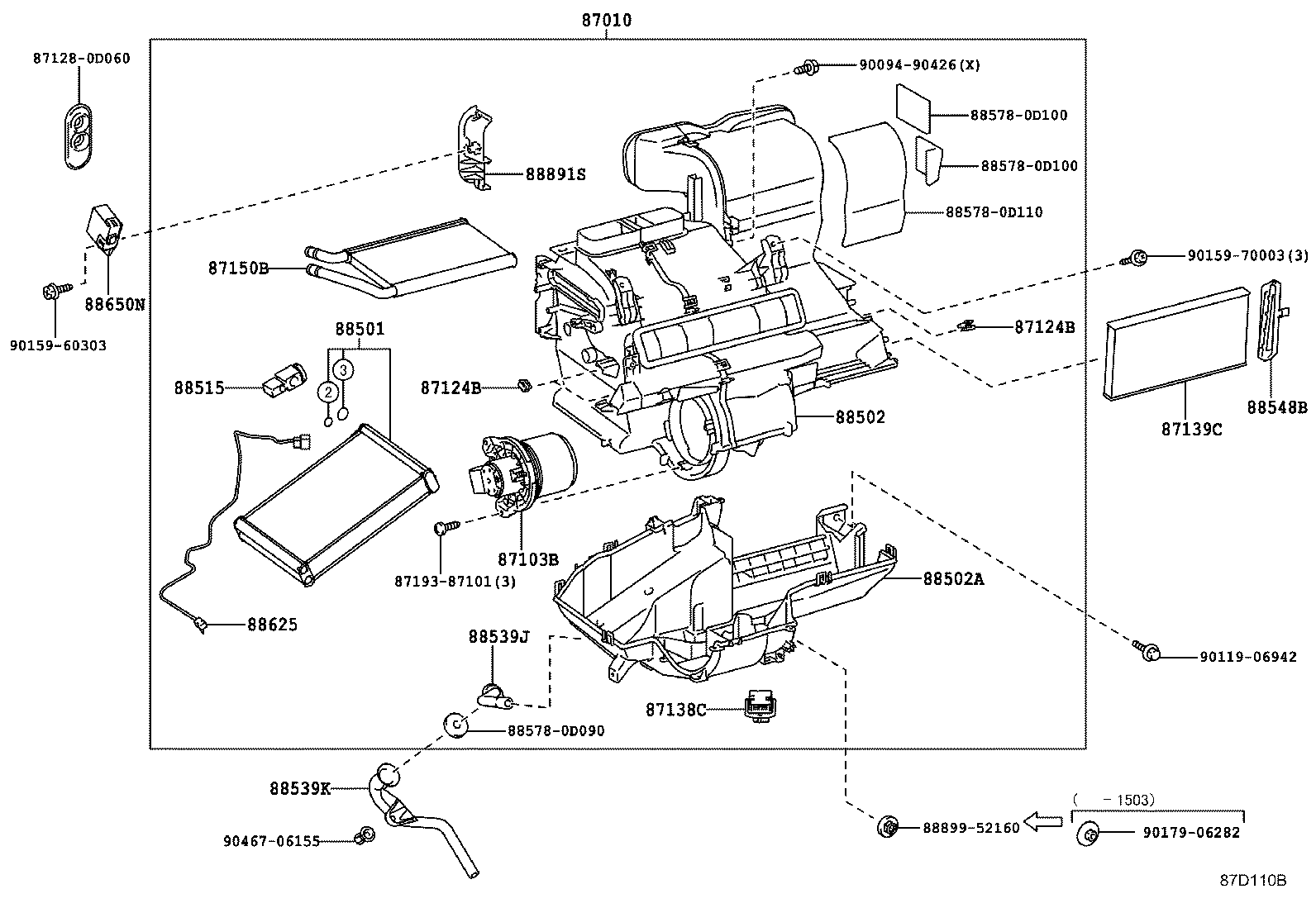

ILLUST NO. 1 OF 2(1209- )5F..CROSS,X,XLS,XS
MANUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0D580 |
NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 87010-0D560 |
NGK11,15..(STD,X)..BZ |
1 | ||
| 87010-0D580 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D210 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D110 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
3 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D110 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
3 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K110 |
NGK1# |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D080 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 87139-0D080 |
NGK12,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 87139-0D080 |
NGK15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D100 |
NGK1#..BZ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D180 |
NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88501-0D180 |
NGK15..X W(*ERCDM) |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-0D050 |
NGK1#..BZ |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-0D070 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D140 |
NGK15..X W(*ERCDM) |
1 | ||
| 88515-0D140 |
NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D140 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-0D160 |
NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88539-0D160 |
NGK15..X W(*ERCDM) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D130 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D030 |
NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88620-0D030 |
NGK15..X W(*ERCDM) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-52670 |
NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 88650-52670 |
NGK15..X W(*ERCDM) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 87237-0D020 |
NGK1# |
1 | ||
| Common parts | ||||
| 87128-0D060 | ||||
| 87193-87101 | ||||
| 88578-0D090 | ||||
| 88578-0D100 | ||||
| 88578-0D110 | ||||
| 88899-52160 | ||||
| 90094-90426 | ||||
| 90119-06942 | ||||
| 90159-60303 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90467-06155 | ||||
ILLUST NO. 2 OF 2(1209- )5F..CROSS,X,XLS,XS ; (1604- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
