NGK15L-AEMRGG (2012)

Toyota Etios

Production Sep 2012 - Apr 2016
Engine 2NRFBE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )5F ; (1604- )

Click highlighted areas on diagram

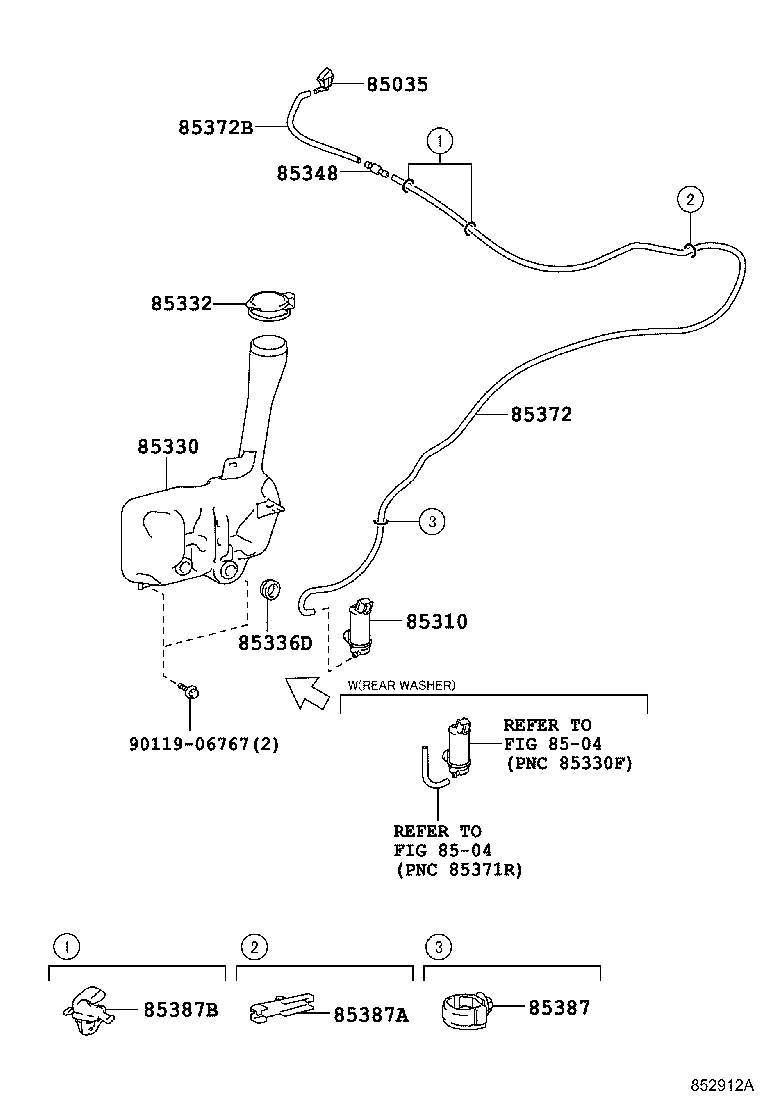

diagram 85035 8504 8504 85310 85330 85332 85336D 85348 85372 85372B 85387 85387A 85387B 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0D130

NGK1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0D180

NGK15;NGK11..STD

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0D150

NGK15;NGK11..STD

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0D160

NGK1#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-0D160

NGK1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85385-0D090

NGK1#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90069-46060

NGK1#

L=1830

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90069-46061

NGK1#

L=250

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-3F230

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
85387A - CLAMP, WASHER, NO.2
85387-12840

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
85387B - CLAMP, WASHER, NO.3
85371-12040

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
Common parts
90119-06767
Linked diagrams
8504
