NGK15L-AEMRGG (2012)

Toyota Etios

Production Sep 2012 - Apr 2016
Engine 2NRFBE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )5F ; (1604- )

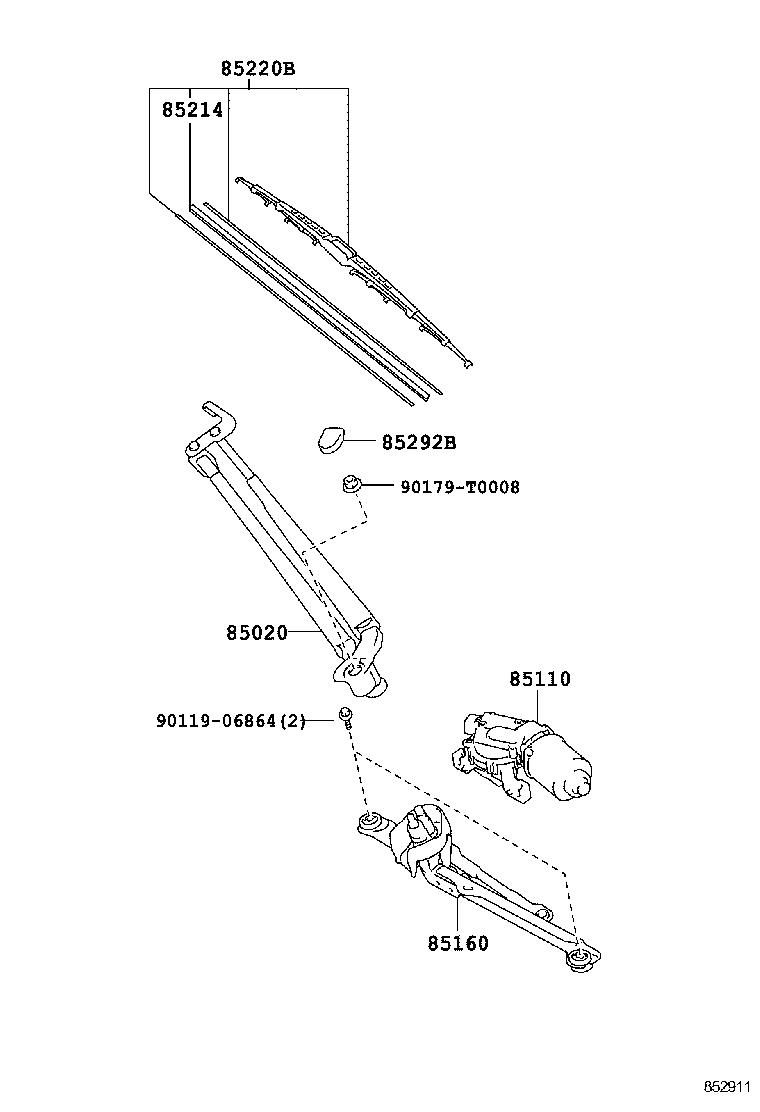

Click highlighted areas on diagram

diagram 85020 85110 85160 85214 85220B 85292B 9011906864 90179T0008
Part # Description Qty Price
85020 - ARM ASSY, FRONT WIPER
85020-52010

NGK1#

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0D170

NGK1#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0D170

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
85214 - RUBBER, WIPER BLADE, NO.1
85214-44140

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
85220B - BLADE, FRONT WIPER
85222-52260

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
Common parts
90119-06864
90179-T0008
