NGK15L-AEMRGG (2012)
Toyota Etios
ILLUST NO. 1 OF 7(1209- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0DU90 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82111-0DU90 |
NGK15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82111-0DU80 |
NGK15..X..BZ |
1 | ||
| 82111-0DU91 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0D190 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0D320 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 2 OF 7(1209- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0DD30 |
NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82121-0DD00 |
NGK11,15..X..BZ |
1 | ||
| 82121-0DD30 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82121-0DD01 |
NGK11,15..X..BZ |
1 | ||
| 82121-0DD31 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90126-06029 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF 7(1209- )NGK15
INSTRUMENT PANEL & FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0UQ10 |
NGK15..X ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0DQ80 |
NGK15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82141-0UQ20 |
NGK15..X..BZ W(*ERCDM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82141-0UQ20 |
NGK15..X..BZ W(*ERCDM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING) |
1 | ||
| 82145-0DQ90 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82145-0DQ90 |
NGK15..X..BZ W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 82145-0DQ70 |
NGK15..X..BZ |
1 | ||
| 82141-0UQ21 |
NGK15..X..BZ W(*ERCDM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING) |
1 | ||
| 82141-0UP00 |
NGK15..X..BZ ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING) |
1 | ||
| 82145-0DQ91 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82145-0D270 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82145-0D280 |
NGK15..X..BZ W(*ERCDM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING) |
1 | ||
| 82145-0DQ72 |
NGK15..X..BZ |
1 | ||
| 82141-0UP02 |
NGK15..X..BZ ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING) |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-0D020 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0D070 |
NGK1# |
1 | ||
| 82171-0D071 |
NGK15..5F..X..BZ;NGK11..(4FC,5F)..X |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0D060 |
NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS) |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0D330 |
NGK12,15..5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0D330 |
NGK12,15..5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS) |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52810 |
NGK15..X W(*ERCDM) |
2 | ||
| 82817-52810 |
NGK15..X..BZ W(*ERCDM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING)&FRONT AIR CONDITIONER-MANUAL |
2 | ||
| 82817-52810 |
NGK15..X..BZ W(*ERCDM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING) |
2 | ||
| 82817-52810 |
NGK15..X..BZ W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52810 |
NGK15..X W(*ERCDM) |
2 | ||
| 82817-52810 |
NGK15..X..BZ W(*ERCDM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING)&FRONT AIR CONDITIONER-MANUAL |
2 | ||
| 82817-52810 |
NGK15..X..BZ W(*ERCDM)&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & TRACKING) |
2 | ||
| 82817-52810 |
NGK15..X..BZ W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52270 |
NGK11,12;NGK15..BZ;NGK15..(X,XS)..AGT |
1 | ||
| Common parts | ||||
| 61815-64010 | ||||
| 90119-06915 | ||||
ILLUST NO. 5 OF 7(1209- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0DB40 |
NGK1#..X |
1 | ||
| 82151-0DB51 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82151-0DB52 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82151-0DB50 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82151-0DB41 |
NGK1#..X |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0DB30 |
NGK1#..X |
1 | ||
| 82152-0DB40 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82152-0DB41 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82152-0DB42 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82152-0DB31 |
NGK1#..X |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0D290 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0D170 |
NGK15..X..BZ W(*ERCDM) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

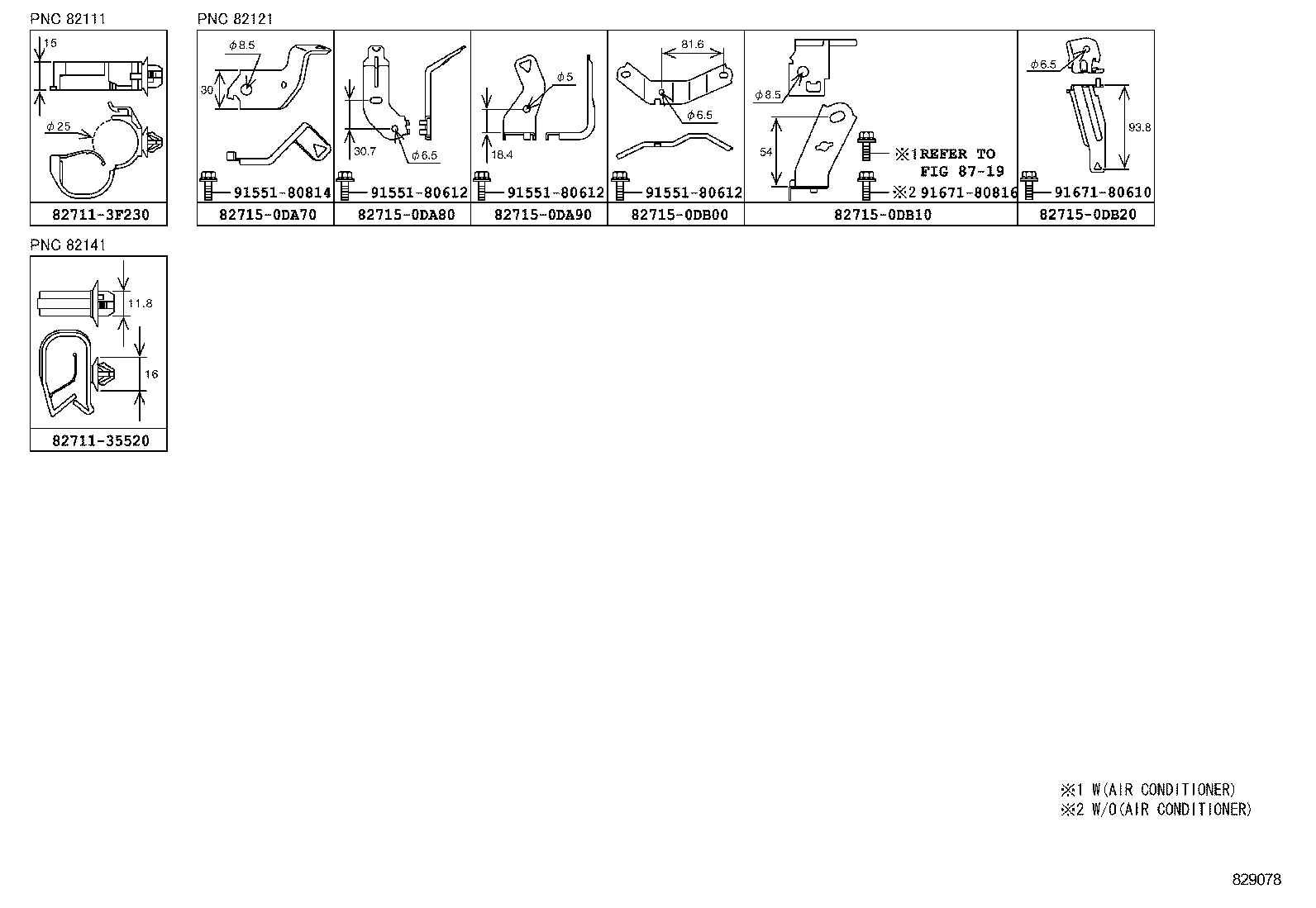

ILLUST NO. 6 OF 7(1209-1604)
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35520 | ||||
| 82711-3F230 | ||||
| 82715-0DA70 | ||||
| 82715-0DA80 | ||||
| 82715-0DA90 | ||||
| 82715-0DB00 | ||||
| 82715-0DB10 | ||||
| 82715-0DB20 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91671-80610 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 8719 | ||||
ILLUST NO. 7 OF 7(1209- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10860 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12555 | ||||
