NGK15L-AEMRGG (2012)

Toyota Etios

Production Sep 2012 - Apr 2016
Engine 2NRFBE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )1NRFBE,2NRFBE..5F

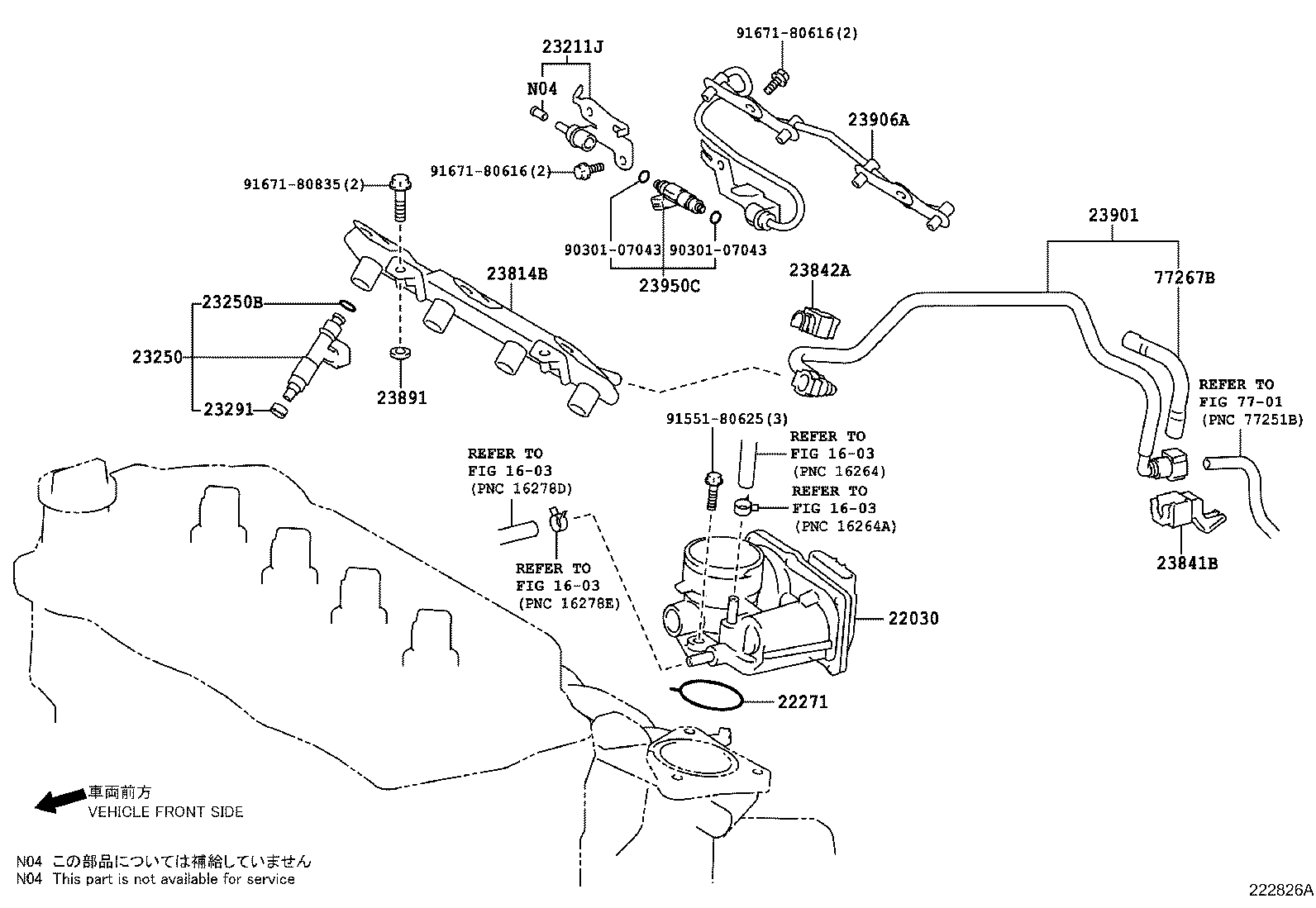

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 22030 22271 23211J 23250 23250B 23291 23814B 23841B 23842A 23891 23901 23906A 23950C 7701 77267B 9030107043 9030107043 9155180625 9167180616 9167180616 9167180835
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-47040

1NRFBE,2NR#..NGK1#

 1
22271 - GASKET, THROTTLE BODY
22271-47030

1NRFBE,2NR#..NGK1#

 1
23211J - BRACKET, SOLENOID VALVE
23211-47020

1NRFBE,2NRFBE..NGK1#

 1
23250 - INJECTOR ASSY, FUEL
23209-49235

1NRFBE,2NRFBE..NGK1#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033

1NRFBE,2NR#..NGK1#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-47010

1NRFBE,2NR#..NGK1#

 4
23814B - PIPE, FUEL DELIVERY
23814-47010

1NRFBE,2NRFBE..NGK1#

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

1NRFBE,2NR#..NGK1#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-47020

1NRFBE,2NR#..NGK1#

 1
23891 - SPACER, FUEL DELIVERY
23891-47020

1NRFBE,2NRFBE..NGK1#

 2
23901 - TUBE SUB-ASSY, FUEL
23901-0Y040

1NRFBE,2NR#..NGK1#

 1
23906A - HOSE SUB-ASSY, FUEL
23906-47010

1NRFBE,2NRFBE..NGK1#

 1
23950C - VALVE ASSY, SOLENOID
23950-47010

1NRFBE,2NRFBE..NGK1#

 1
77267B - PROTECTOR, FUEL TUBE, NO.2
77267-47030

NGK1#

 1
Common parts
90301-07043
91551-80625
91671-80616
91671-80835
Linked diagrams
1603
7701
