NGK15L-AEMRGG (2012)
Toyota Etios

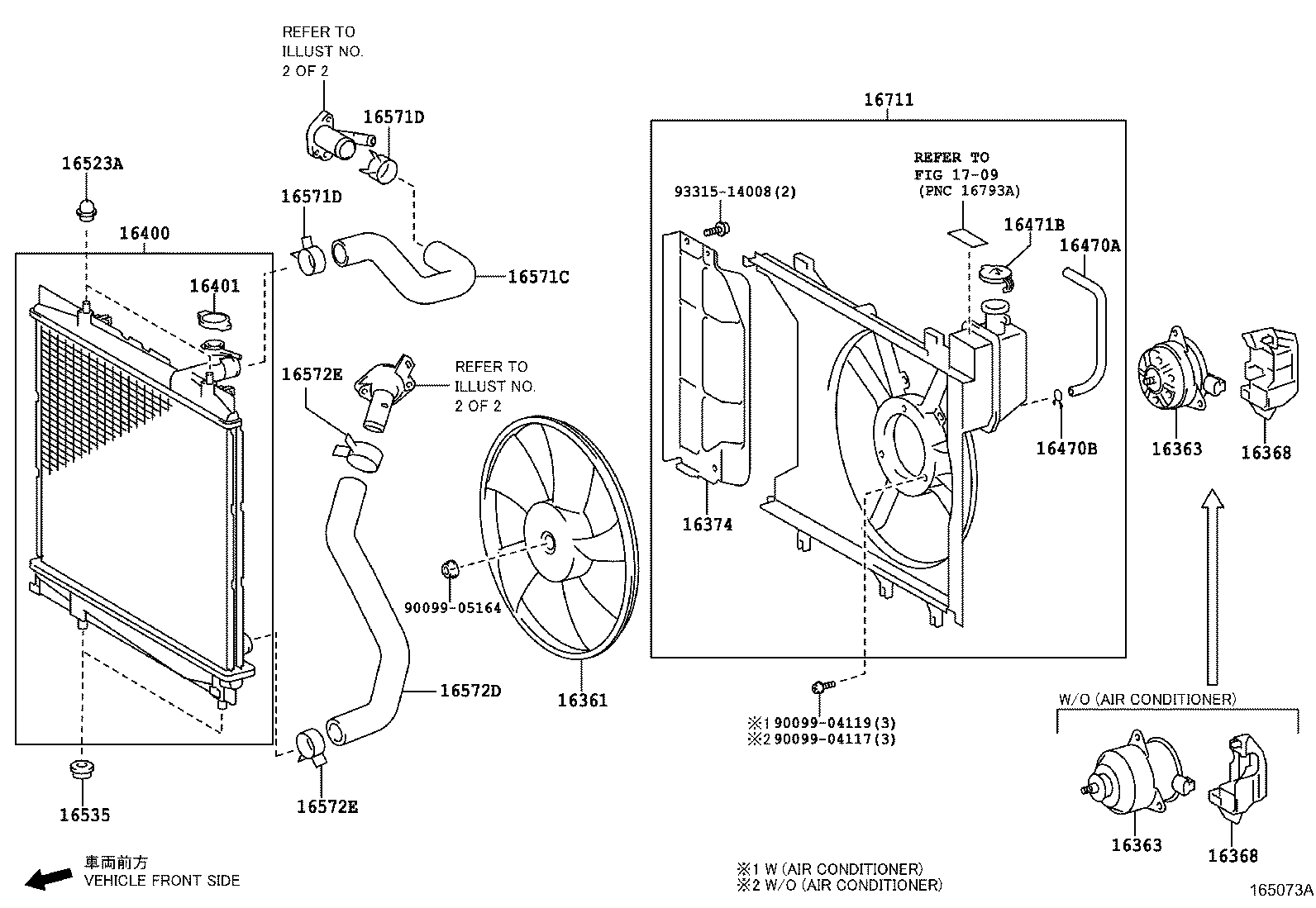

ILLUST NO. 1 OF 2(1209- )1NRFBE,2NR#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0Y020 |
1NRFBE,2NRFBE..NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16361-0Y080 |
2NR#..NGK15..X W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16361-0Y030 |
1NRFBE,2NR#..NGK1#..STD,X |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28150 |
1NRFBE,2NRFBE..NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16363-23010 |
1NRFBE,2NR#..NGK1#..STD,X |
1 | ||
| 16363-28150 |
2NR#..NGK15..X W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28150 |
1NRFBE,2NRFBE..NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16363-23010 |
1NRFBE,2NR#..NGK1#..STD,X |
1 | ||
| 16363-28150 |
2NR#..NGK15..X W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16368 - BRACKET, COOLING MOTOR | ||||
| 16368-47010 |
2NR#..NGK15..X W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16368-47010 |
1NRFBE,2NRFBE..NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16368-47020 |
1NRFBE,2NR#..NGK1#..STD,X |
1 | ||
| 16368 - BRACKET, COOLING MOTOR | ||||
| 16368-47010 |
2NR#..NGK15..X W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16368-47010 |
1NRFBE,2NRFBE..NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16368-47020 |
1NRFBE,2NR#..NGK1#..STD,X |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-0Y020 |
2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0Y040 |
1NRFBE,2NRFBE..NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16400-0Y050 |
1NRFBE,2NR#..NGK1#..STD,X |
1 | ||
| 16400-0Y040 |
2NR#..NGK15..X W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0Y050 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0Y100 |
2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS) |
1 | ||
| 16377-0Y100 |
1NRFBE,2NRFBE..NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16377-0Y100 |
2NR#..NGK15..X W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS) |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16471-23010 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0Y010 |
2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-T0001 |
2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS) |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0Y040 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-33006 |
1NRFBE,2NR#..NGK1# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-33006 |
1NRFBE,2NR#..NGK1# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Y030 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-33006 |
1NRFBE,2NR#..NGK1# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-33006 |
1NRFBE,2NR#..NGK1# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Y020 |
1NRFBE,2NRFBE..NGK11,15..X FRONT AIR CONDITIONER-MANUAL |
1 | ||
| 16711-0Y030 |
1NRFBE,2NR#..NGK1#..STD,X |
1 | ||
| 16711-0Y020 |
2NR#..NGK15..X W(*ERCDM)&FRONT AIR CONDITIONER-MANUAL |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 93315-14008 | ||||
| Linked diagrams | ||||
| 1709 | ||||

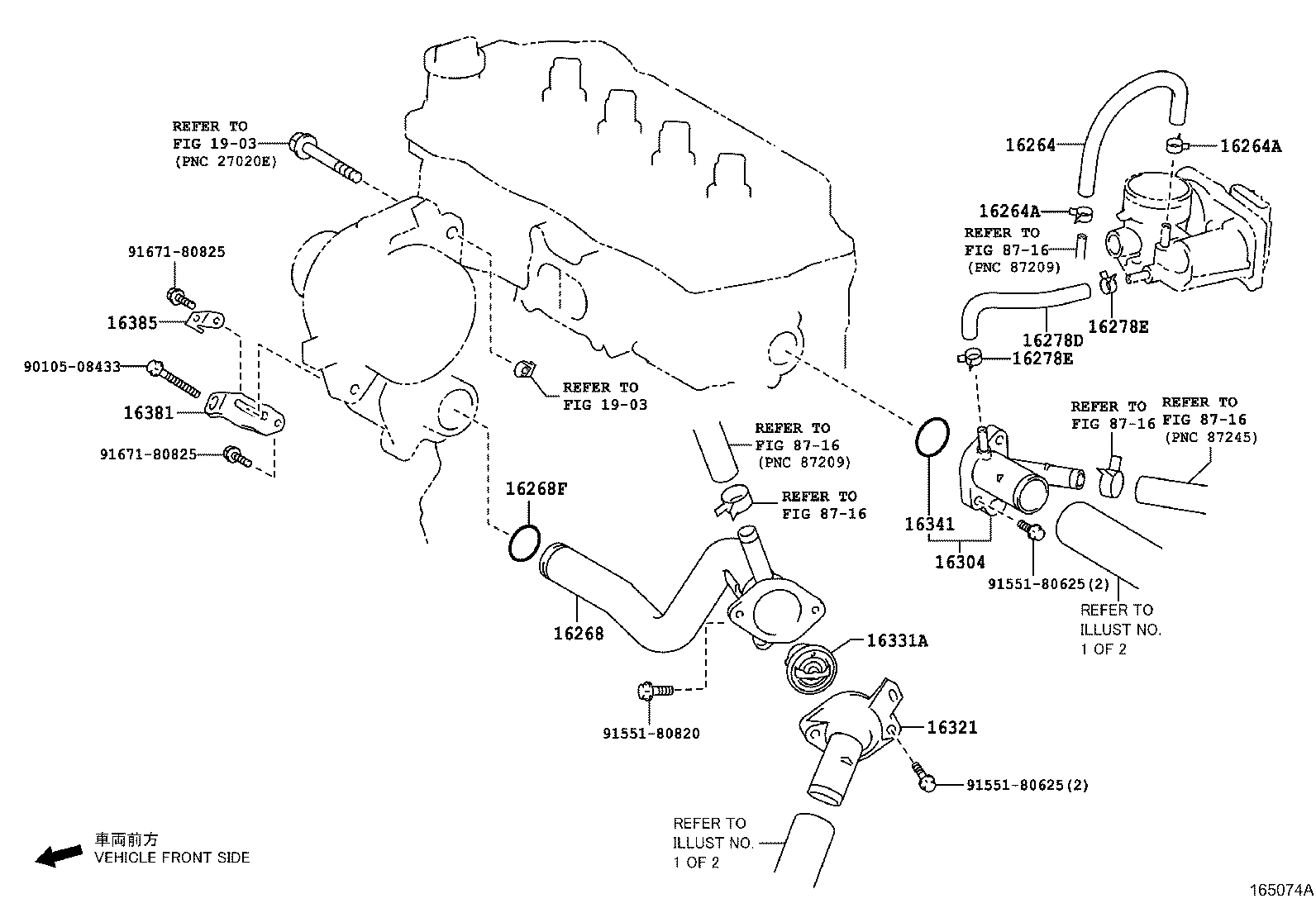

ILLUST NO. 2 OF 2(1209- )1NRFBE,2NR#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0Y010 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NRFBE,2NR#..NGK1# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NRFBE,2NR#..NGK1# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0W010 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-29016 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16278D - HOSE, WATER BY-PASS | ||||
| 99556-10175 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NRFBE,2NR#..NGK1# |
2 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NRFBE,2NR#..NGK1# |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-47020 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-47030 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-47010 |
1NRFBE,2NR#..NGK1# *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-47020 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-0Y020 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-0Y020 |
1NRFBE,2NR#..NGK1# |
1 | ||
| Common parts | ||||
| 90105-08433 | ||||
| 91551-80625 | ||||
| 91551-80820 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8716 | ||||
