NGK15L-AEMRGG (2012)
Toyota Etios
Production
Sep 2012
-
Apr 2016
Engine
2NRFBE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1209- )1NRFBE,2NR#..5F

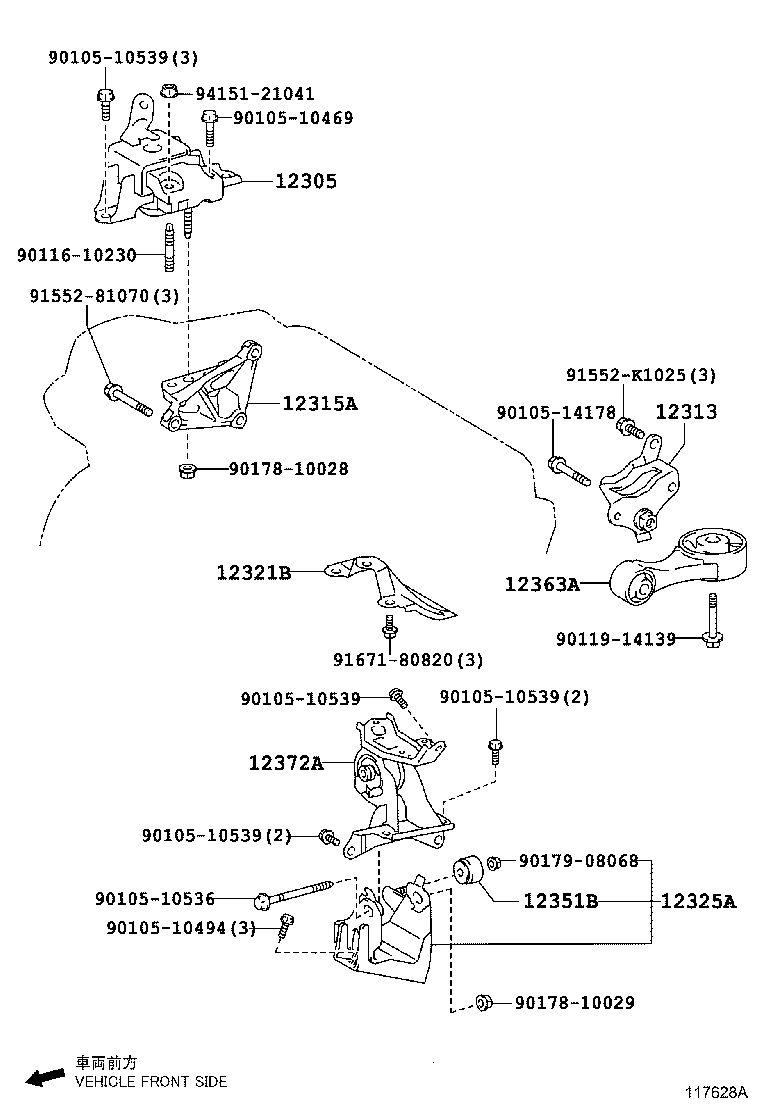

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0Y040 |
1NRFBE,2NR#..NGK1#..STD,X,XLS,XS |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-0Y030 |
1NRFBE,2NR#..NGK1#..STD,X,XLS,XS |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-47060 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-0D060 |
1NRFBE,2NR#..NGK1# |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12304-0Y070 |
1NRFBE,2NR#..NGK1#..STD,X,XLS,XS |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-27010 |
1NRFBE,2NRFBE..NGK1# |
1 | ||
| 12351-47040 |
1NRFBE,2NR#..NGK1#..STD,X,XLS,XS |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0Y030 |
1NRFBE,2NR#..NGK1#..STD,X,XLS,XS |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0Y040 |
1NRFBE,2NR#..NGK1#..STD,X,XLS,XS |
1 | ||
| 12372-0Y041 |
1NRFBE,2NR#..NGK1# |
1 | ||
| Common parts | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10536 | ||||
| 90105-10539 | ||||
| 90105-14178 | ||||
| 90116-10230 | ||||
| 90119-14139 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-08068 | ||||
| 91552-81070 | ||||
| 91552-K1025 | ||||
| 91671-80820 | ||||
| 94151-21041 | ||||
