NGK15L-AEMRGG (2012)

Toyota Etios

Production Sep 2012 - Apr 2016
Engine 2NRFBE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

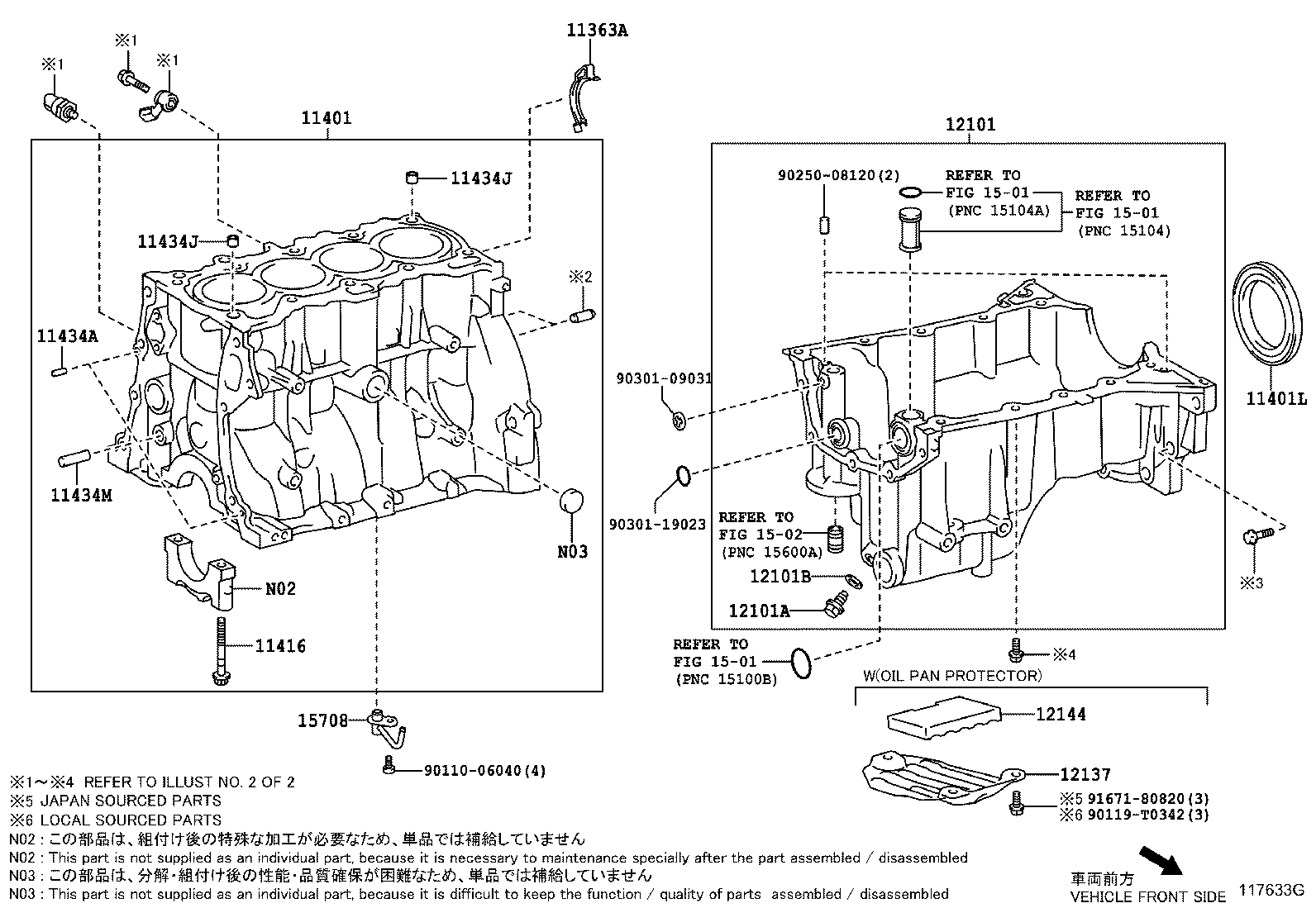

ILLUST NO. 1 OF 2(1209- )1NRFBE,2NR#..5F

Click highlighted areas on diagram

diagram 11363A 11401 11401L 11416 11434A 11434J 11434J 11434M 12101 12101A 12101B 12137 12144 1501 1501 1501 1502 15708 9011006040 90119T0342 9025008120 9030109031 9030119023 9167180820
Part # Description Qty Price
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-40010

1NRFBE,2NR#..NGK1#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80806

2NR#..NGK12,15

 1
11401L - SEAL, ENGINE REAR OIL
90311-78004

1NRFBE,2NR#..NGK1#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02175

1NRFBE,2NR#..NGK1#

 10
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

1NRFBE,2NR#..NGK1#

L=12,OD=4.0

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS)

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS)

 2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-10030

1NRFBE,2NR#..NGK1#

 1
12101 - PAN SUB-ASSY, OIL
12101-47091

1NRFBE,2NR#..NGK1#

 1
12101-47090

1NRFBE,2NR#..NGK1#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12032

2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS)

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS)

 1
12137 - PROTECTOR, OIL PAN
12137-0Y010

2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS)

 1
12144 - SILENCER, OIL PAN COVER
12144-47020

2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS)

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-47020

1NRFBE,2NR#..NGK1#

 4
Common parts
90110-06040
90119-T0342
90250-08120
90301-09031
90301-19023
91671-80820
Linked diagrams
1501
1502

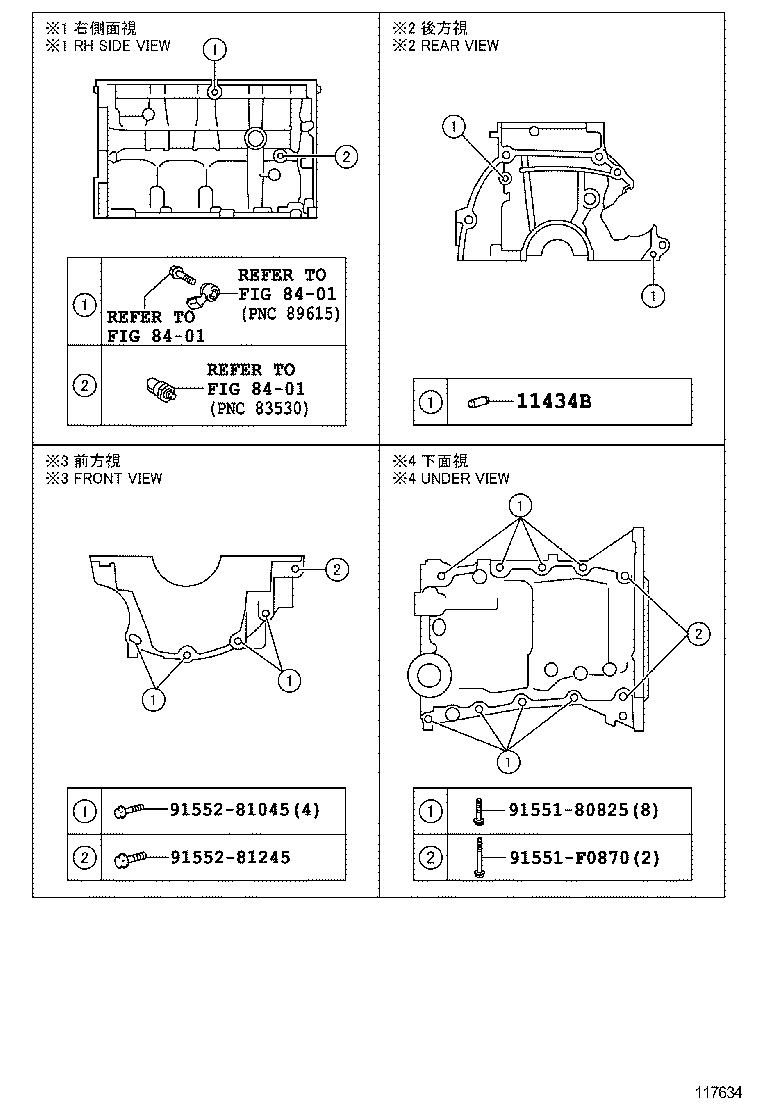

ILLUST NO. 2 OF 2(1209- )1NRFBE,2NR#..5F

Click highlighted areas on diagram

diagram 11434B 8401 8401 8401 9155180825 91551F0870 9155281045 9155281245
Part # Description Qty Price
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1NRFBE,2NR#..NGK1#

L=22,OD=10

 2
Common parts
91551-80825
91551-F0870
91552-81045
91552-81245
Linked diagrams
8401
