NGK12L-AHMSKH (2013)

Toyota Etios

Production Nov 2013 - Apr 2016
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1311- )CROSS

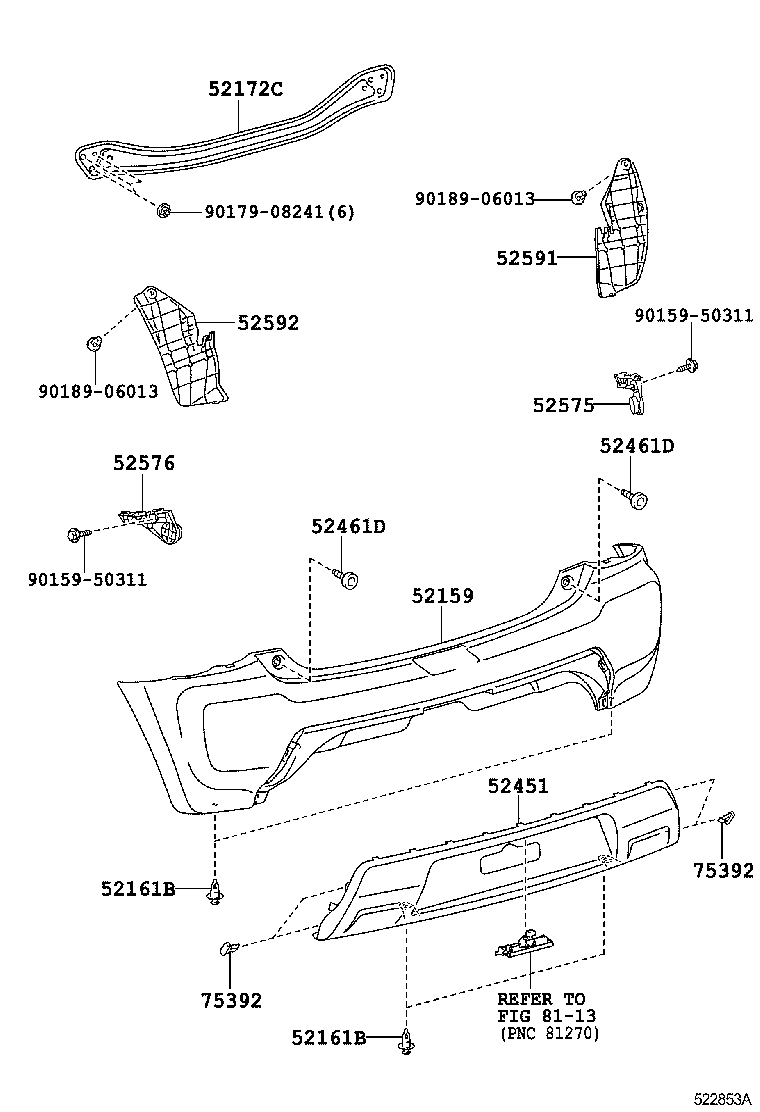

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52172C 52451 52461D 52461D 52575 52576 52591 52592 75392 75392 8113 9015950311 9015950311 9017908241 9018906013 9018906013
Part # Description Qty Price
52161B - PIECE, REAR BUMPER
52161-16010

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 4
52161B - PIECE, REAR BUMPER
52161-16010

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 4
52172C - REINFORCEMENT, REAR BUMPER BAR, CENTER
52172-0D060

NGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
52461D - CUSHION, REAR BUMPER
52461-52020

NGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
52461D - CUSHION, REAR BUMPER
52461-52020

NGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D240

NGK12..CROSS

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D240

NGK12..CROSS

 1
Common parts
90159-50311
90179-08241
90189-06013
Linked diagrams
8113
