NGK12L-AHFSGG (2016)

Toyota Etios

Production Apr 2016 - Feb 2018
Engine 2NRFBE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )6F

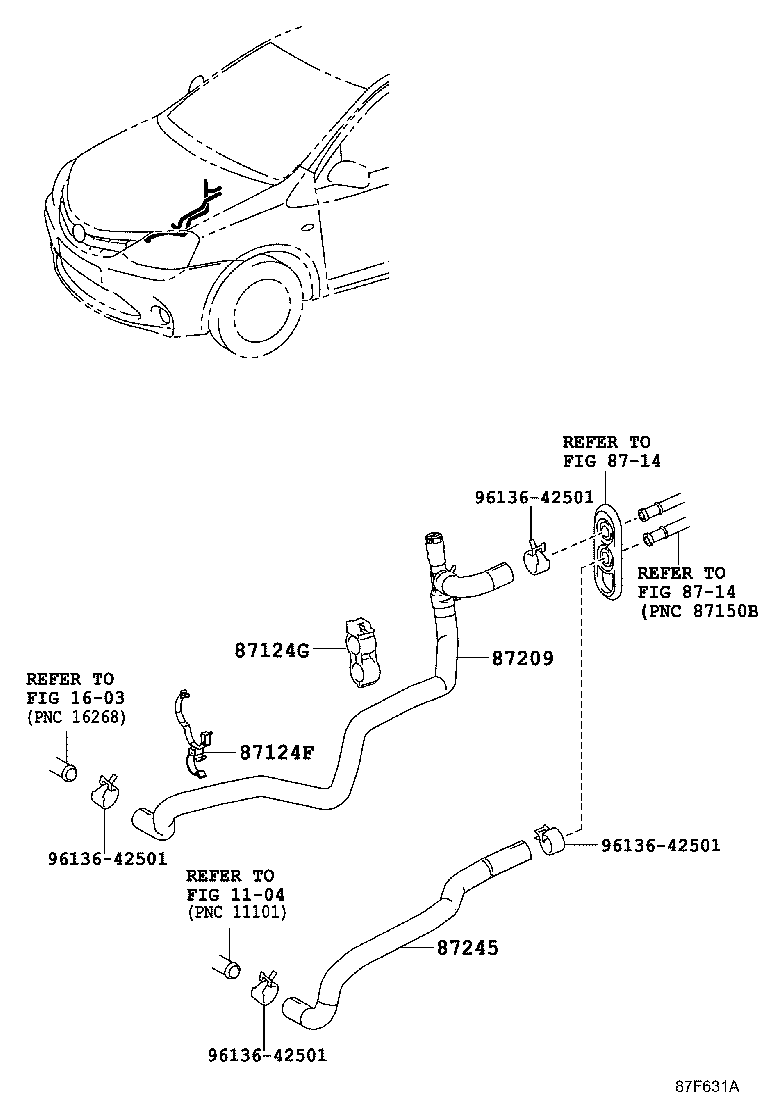

Click highlighted areas on diagram

diagram 1104 1603 87124F 87124G 8714 8714 87209 87245 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87124F - CLAMP, HEATER HOSE, NO.1
87124-0D610

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
87124G - CLAMP, HEATER HOSE, NO.2
87124-0D100

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
Common parts
96136-42501
Linked diagrams
1104
1603
8714
