NGK12L-AHFSGG (2016)

Toyota Etios

Production Apr 2016 - Feb 2018
Engine 2NRFBE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )6F

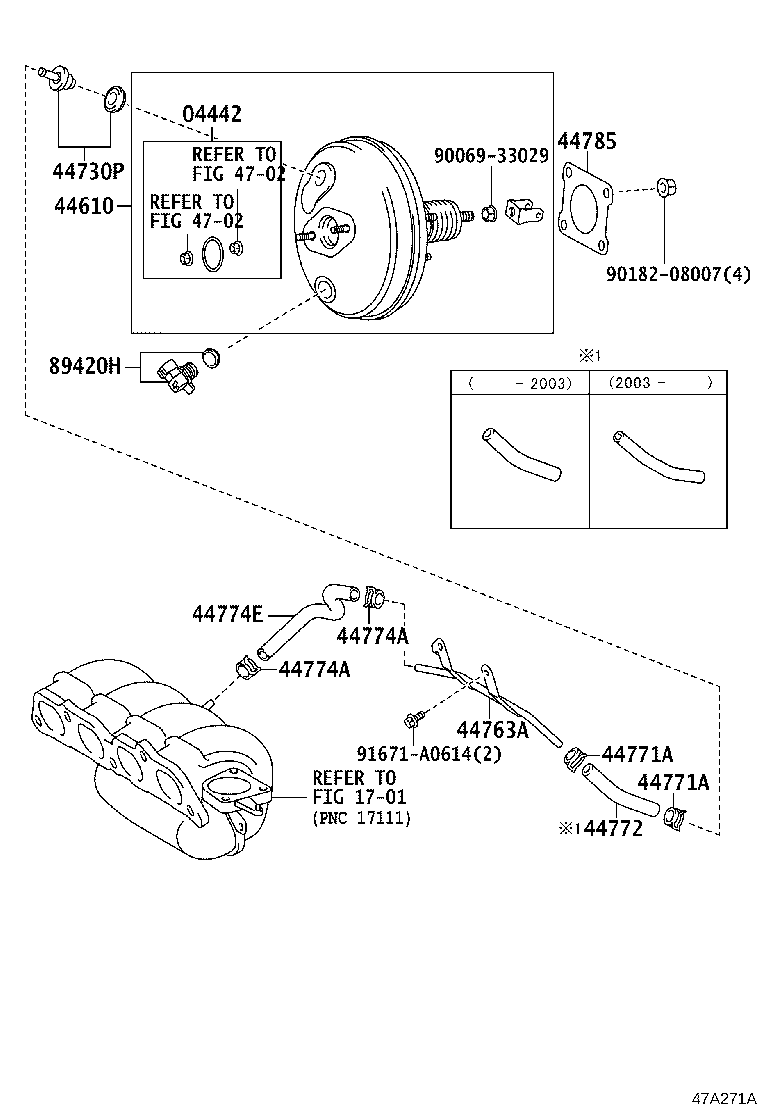

Click highlighted areas on diagram

diagram 04442 1701 44610 44730P 44763A 44771A 44771A 44772 44774A 44774A 44774E 44785 4702 4702 89420H 9006933029 9018208007 91671A0614
Part # Description Qty Price
04442 - FITTING KIT, BRAKE BOOSTER
04442-0D030

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-09080

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0D260

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16014

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 2
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16014

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS

 2
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-0D170

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

NGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
Common parts
90069-33029
90182-08007
91671-A0614
Linked diagrams
1701
4702
