NGK12L-AHFSGG (2016)
Toyota Etios
Production
Apr 2016
-
Feb 2018
Engine
2NRFBE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1604- )6F

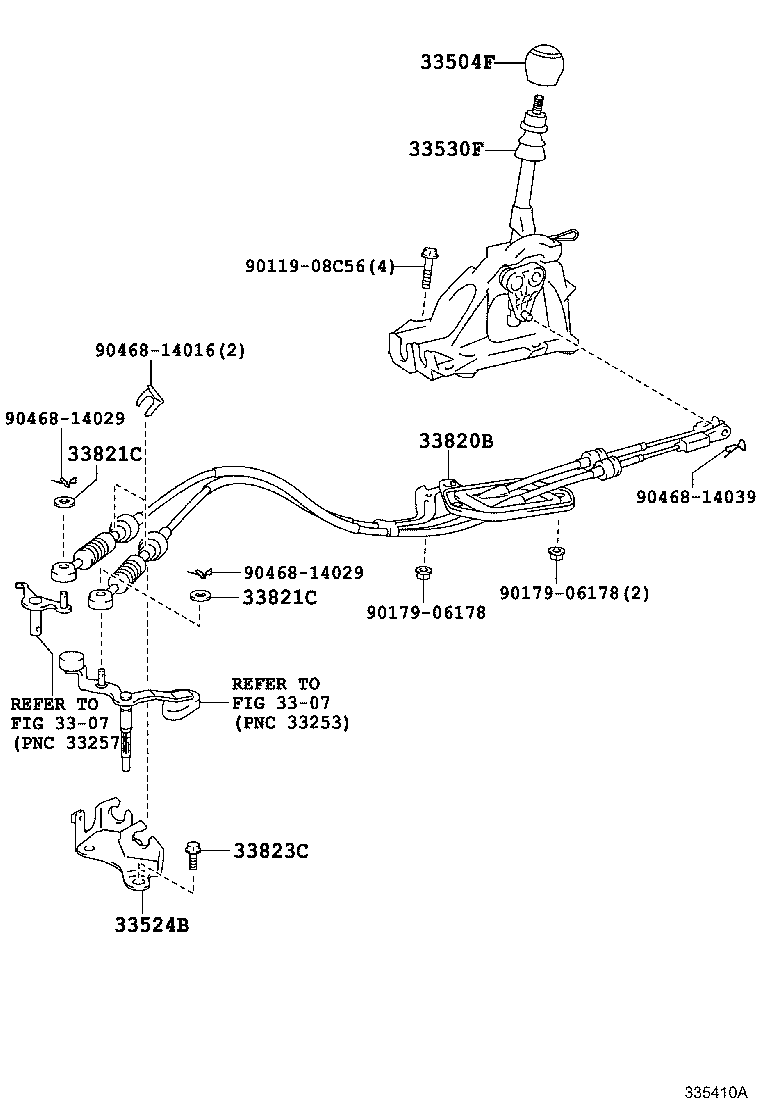

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-52470C0 |
NGK12..6F..CROSS BLACK,TRIM2# |
1 | ||
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-0D180 |
NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS) |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0D210 |
NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS) |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0D600 |
NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS) |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
NGK1#..5F;NGK15..6F..AGT;NGK12..6F..XS..AGT;NGK12..6F..(CROSS,X,XLS) OD=28 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
NGK1#..5F;NGK15..6F..AGT;NGK12..6F..XS..AGT;NGK12..6F..(CROSS,X,XLS) OD=28 |
2 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80820 |
NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS) |
3 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 90468-14029 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 3307 | ||||
