NGK12L-AHFSGG (2016)

Toyota Etios

Production Apr 2016 - Feb 2018
Engine 2NRFBE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1604- )6F

Click highlighted areas on diagram

diagram 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31301Q 31321 31324 31324A 31380 31453A 55107A 8401 9017910088 9018208007 9046816142
Part # Description Qty Price
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14082

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NGK1#..5F;NGK15..6F..AGT;NGK12..6F..XS..AGT;NGK12..6F..(CROSS,X,XLS)

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NGK1#..5F;NGK15..6F..AGT;NGK12..6F..XS..AGT;NGK12..6F..(CROSS,X,XLS)

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

NGK1#..5F;NGK15..6F..AGT;NGK12..6F..XS..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000

NGK1#..5F;NGK15..6F..AGT;NGK12..6F..XS..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-08002

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31321 - PAD, CLUTCH PEDAL
31321-02050

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10081

NGK1#..5F;NGK15..6F..AGT;NGK12..6F..XS..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

NGK1#..5F;NGK15..6F..AGT;NGK12..6F..XS..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31380 - SUPPORT ASSY, PEDAL
31380-0D560

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08051

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

L=31.5

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0D360

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
Common parts
90179-10088
90182-08007
90468-16142
Linked diagrams
8401

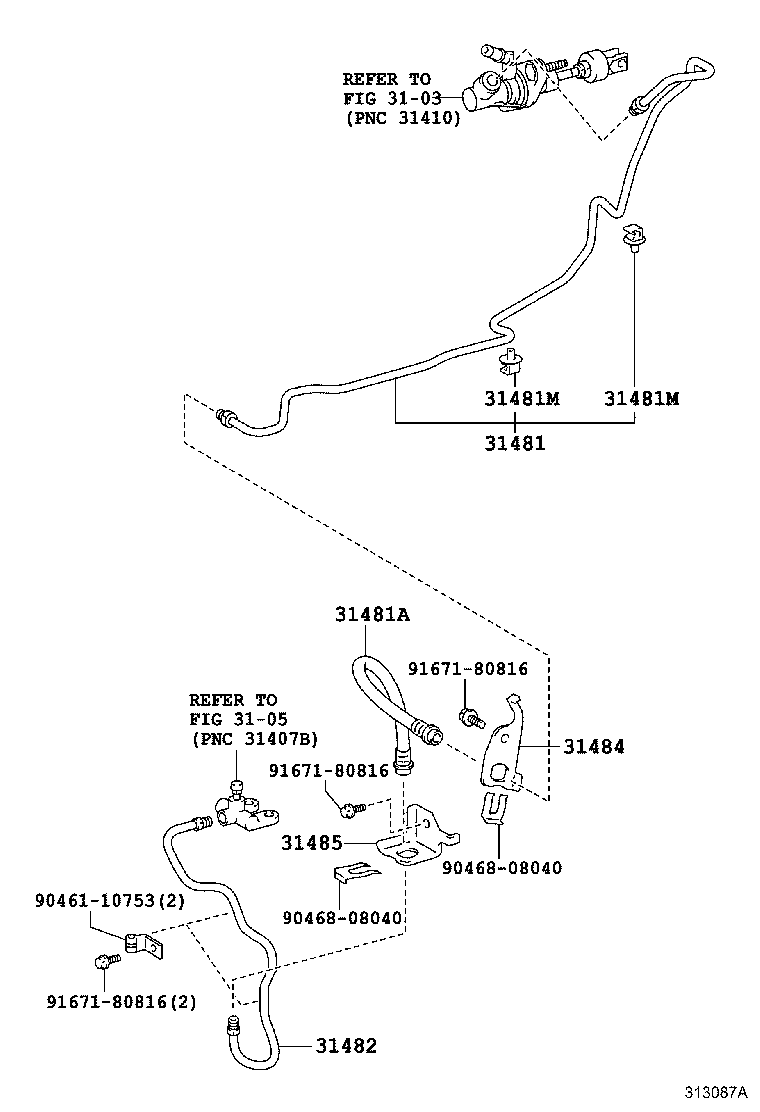

ILLUST NO. 2 OF 2(1604- )6F

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31481M 31481M 31482 31484 31485 9046110753 9046808040 9046808040 9167180816 9167180816 9167180816
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D300

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31481A - HOSE, CLUTCH, NO.1
90947-02E89

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01D17

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01D17

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 2
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0D310

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-0D250

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-0D260

NGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)

 1
Common parts
90461-10753
90468-08040
91671-80816
Linked diagrams
3103
3105
