NGK11L-AHMNGG (2012)

Toyota Etios

Production Sep 2012 - Apr 2016
Engine 1NRFBE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )NGK11,12

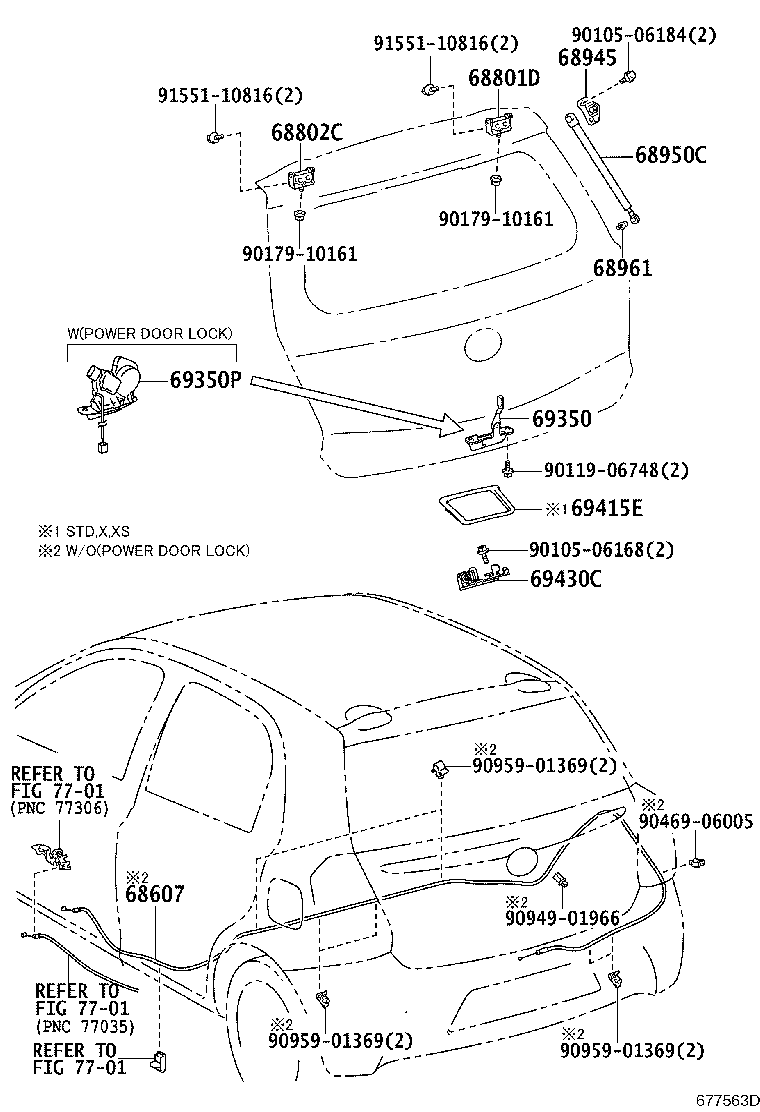

Click highlighted areas on diagram

diagram 68607 68801D 68802C 68945 68950C 68961 69350 69350P 69415E 69430C 7701 7701 7701 9010506168 9010506184 9011906748 9017910161 9017910161 9046906005 9094901966 9095901369 9095901369 9095901369 9155110816 9155110816
Part # Description Qty Price
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-0D170

NGK11,12..XS

 1
64607-0D170

NGK11,12..STD,X

 1
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-0D090

NGK11,12

 1
68801-0D091

NGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
68802C - HINGE SUB-ASSY, BACK DOOR, LH
68801-0D091

NGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
68801-0D090

NGK11,12

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0D030

NGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0D060

NGK12..5F;NGK12..6F..XS..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
68961 - BOLT, BACK DOOR STAY
68961-10030

NGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)

 1
69350 - LOCK ASSY, BACK DOOR
69350-0D120

NGK11,12..STD,X

 1
69350-0D120

NGK11,12..XS

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-52421

NGK11,12..5F..XS

 1
69415E - COVER, BACK DOOR LOCK STRIKER
62671-0D030

NGK11..4FC,5F;NGK12..5F..(X,XS);NGK12..6F..(X,XS)..AGT

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-0D060

NGK11,12..XS

 1
69430-0D120

NGK11,12..5F..XS

 1
69430-0D060

NGK11,12..STD,X

 1
Common parts
90105-06168
90105-06184
90119-06748
90179-10161
90469-06005
90949-01966
90959-01369
91551-10816
Linked diagrams
7701
