NGK11L-AHMBGG (2012)

Toyota Etios

Production Sep 2012 - Oct 2013
Engine 1NRFBE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )1NRFBE,2NR#..5F

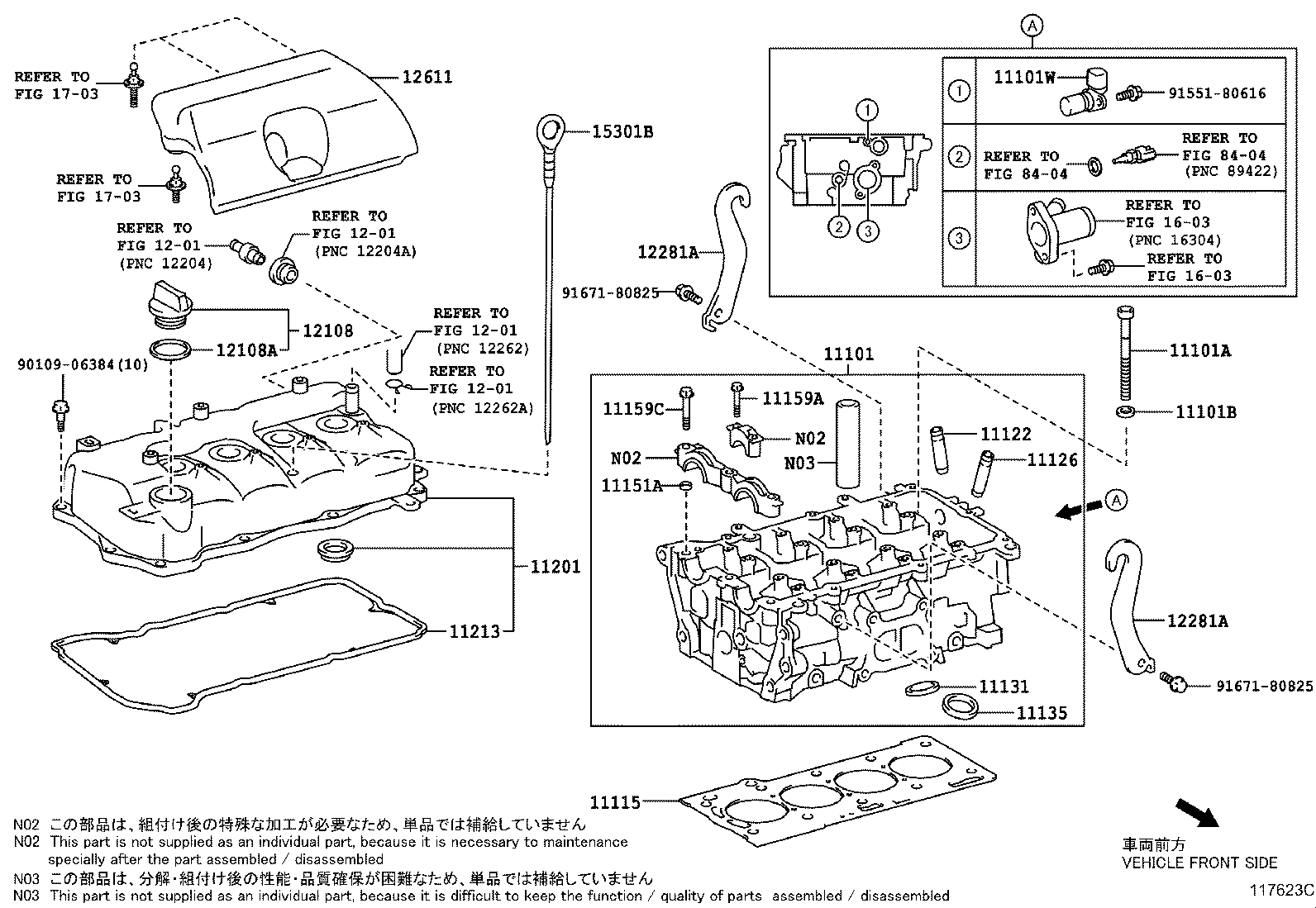

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101W 11115 11122 11126 11131 11135 11151A 11159A 11159C 11201 11213 1201 1201 1201 1201 12108 12108A 12281A 12281A 12611 15301B 1603 1603 1703 1703 8404 8404 9010906384 9155180616 9167180825 9167180825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49495

1NRFBE,2NRFBE..NGK1#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02174

1NRFBE,2NR#..NGK1#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS)

 10
11101W - SENSOR, CRANK POSITION, NO.1
90919-05080

1NRFBE,2NR#..NGK1#

 1
11115 - GASKET, CYLINDER HEAD
11115-47060

1NRFBE,2NR#..NGK1#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-22040

1NRFBE,2NR#..NGK1#

STD

 8
11123-22040

1NRFBE,2NR#..NGK1#

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-22040

1NRFBE,2NR#..NGK1#

STD

 8
11123-22040

1NRFBE,2NR#..NGK1#

O/S 0.05

 8
11131 - SEAT, INTAKE VALVE
11131-47020

1NRFBE,2NRFBE..NGK1#

STD

 8
11132-47020

1NRFBE,2NRFBE..NGK1#

O/S 0.03

 8
11135 - SEAT, EXHAUST VALVE
11136-47020

1NRFBE,2NRFBE..NGK1#

O/S 0.03

 8
11135-47020

2NRFBE..NGK12..5F;1NRFBE,2NRFBE..NGK11,15;2NRFBE..NGK12..(4FC,6F)..(XLS,XS);2NRFE..NGK12,15..(4FC,6F)..(X,XLS,XS)

STD

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1NRFBE,2NR#..NGK1#

L=8,OD=11

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

1NRFBE,2NR#..NGK1#

 16
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80840

1NRFBE,2NRFBE..NGK1#

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-47090

1NRFBE,2NR#..NGK1#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-47030

1NRFBE,2NR#..NGK1#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-38010

1NRFBE,2NR#..NGK1#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

1NRFBE,2NR#..NGK1#

 1
12281A - HANGER, ENGINE, NO.1
12281-47031

1NRFBE,2NR#..NGK1#

 2
12281A - HANGER, ENGINE, NO.1
12281-47031

1NRFBE,2NR#..NGK1#

 2
12611 - COVER, ENGINE, NO.1
12611-0Y050

1NRFBE,2NR#..NGK1#

 1
15301B - GAGE SUB-ASSY, OIL LEVEL
15301-47040

1NRFBE,2NR#..NGK1#

 1
Common parts
90109-06384
91551-80616
91671-80825
Linked diagrams
1201
1603
1703
8404
