NUK15R-AEMGXX (2011)

Toyota Etios/Liva/Cross

Production Aug 2011 - Mar 2013
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )1NDTV

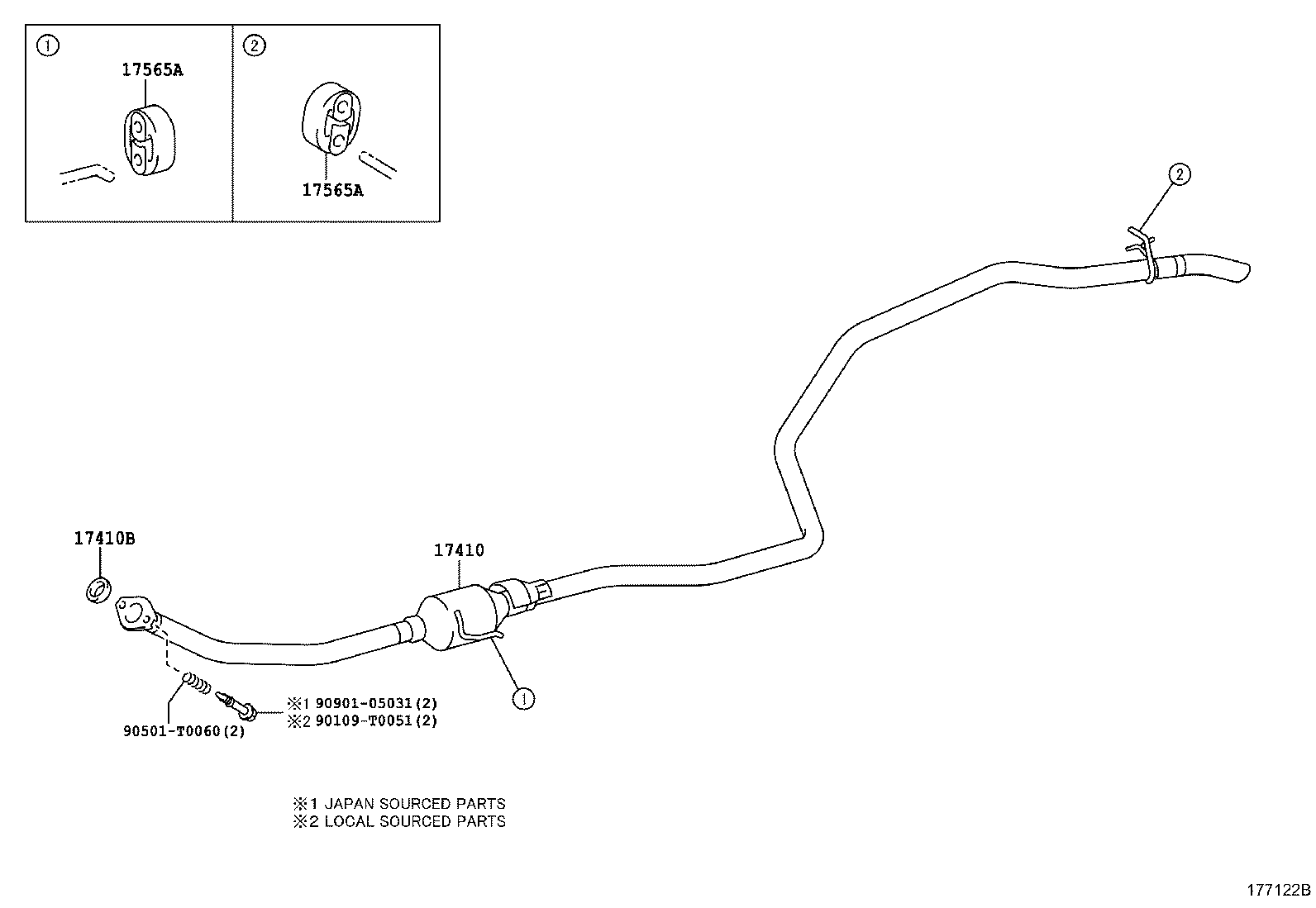

Click highlighted areas on diagram

diagram 17410 17410B 17565A 17565A 90109T0051 90501T0060 9090105031
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0N100

1NDTV..NUK15

 1
17410B - GASKET, EXHAUST PIPE
17451-0M020

1NDTV,2NRFE,3NRFE..NGK1#,NUK1#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y010

1NDTV..NUK10..G;1NDTV..NUK15..G,V;2NRFE,3NRFE..NGK10,15..G,STD,V

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0Y010

1NDTV..NUK10..G;1NDTV..NUK15..G,V;2NRFE,3NRFE..NGK10,15..G,STD,V

 2
Common parts
90109-T0051
90501-T0060
90901-05031
