NGK15R-AEMRKX (2010)

Toyota Etios/Liva/Cross

Production Dec 2010 - Mar 2013
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )4D

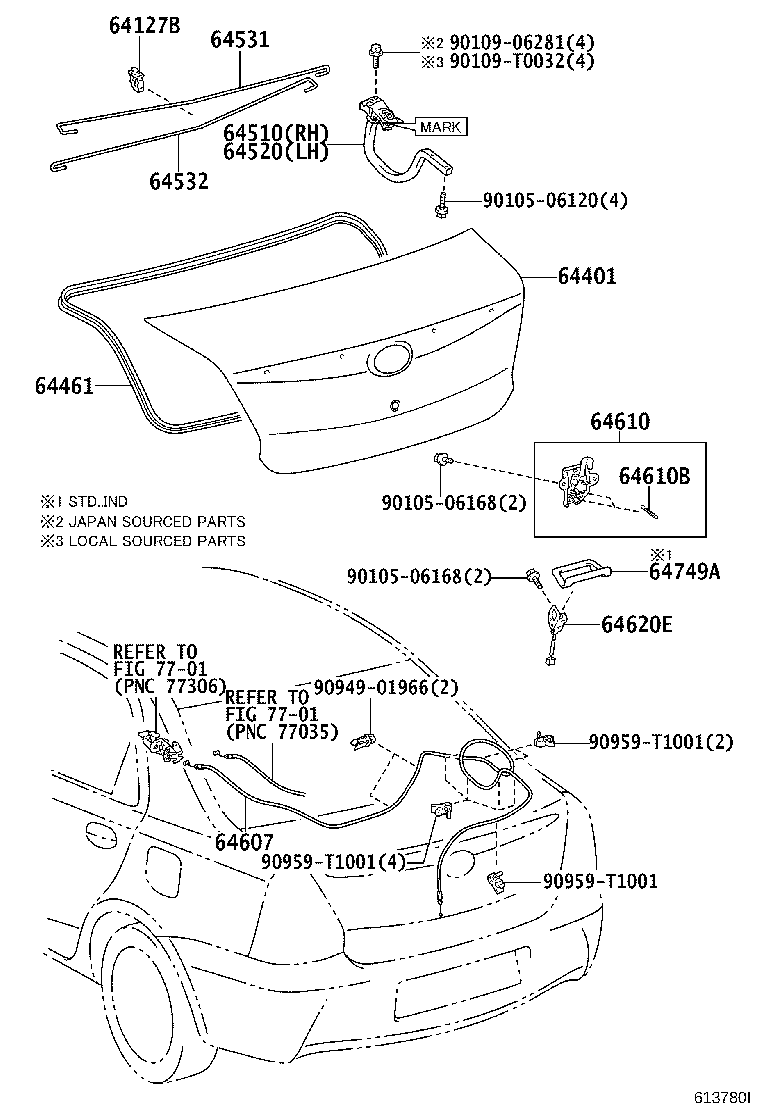

Click highlighted areas on diagram

diagram 64127B 64401 64461 64510 64520 64531 64532 64607 64610 64610B 64620E 64749A 7701 7701 9010506120 9010506168 9010506168 9010906281 90109T0032 9094901966 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-0D030

NGK15,NUK15..4D

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-0D130

NGK15..4D..STD

 1
64401-0D140

NGK15,NUK15..4D..(G,V)

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-0D060

NGK15,NUK15..4D

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-0D010

NGK15,NUK15..4D

MARK = 1R0

 1
64510-0D030

NGK15,NUK15..4D

MARK = 1R-

 1
64510-0D020

NGK15,NUK15..4D

MARK = 1R+

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-0D010

NGK15,NUK15..4D

MARK = 1L0

 1
64520-0D020

NGK15,NUK15..4D

MARK = 1L+

 1
64520-0D030

NGK15,NUK15..4D

MARK = 1L-

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-0D141

NGK15,NUK15..4D

 1
64531-0D140

NGK15

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-0D141

NGK15,NUK15..4D

 1
64532-0D140

NGK15

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-0D120

NGK15,NUK15..4D

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-0D050

NGK15,NUK15..4D

 1
64610B - SPRING, TENSION(FOR LOCK)
90506-06010

NGK15,NUK15..4D

WD=0.55,CW=16.75

 2
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-0D020

NGK15

 1
64620-0D021

NGK15,NUK15..4D

 1
64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
62671-0D020

NGK15..STD..IND

 1
Common parts
90105-06120
90105-06168
90109-06281
90109-T0032
90949-01966
90959-T1001
Linked diagrams
7701
